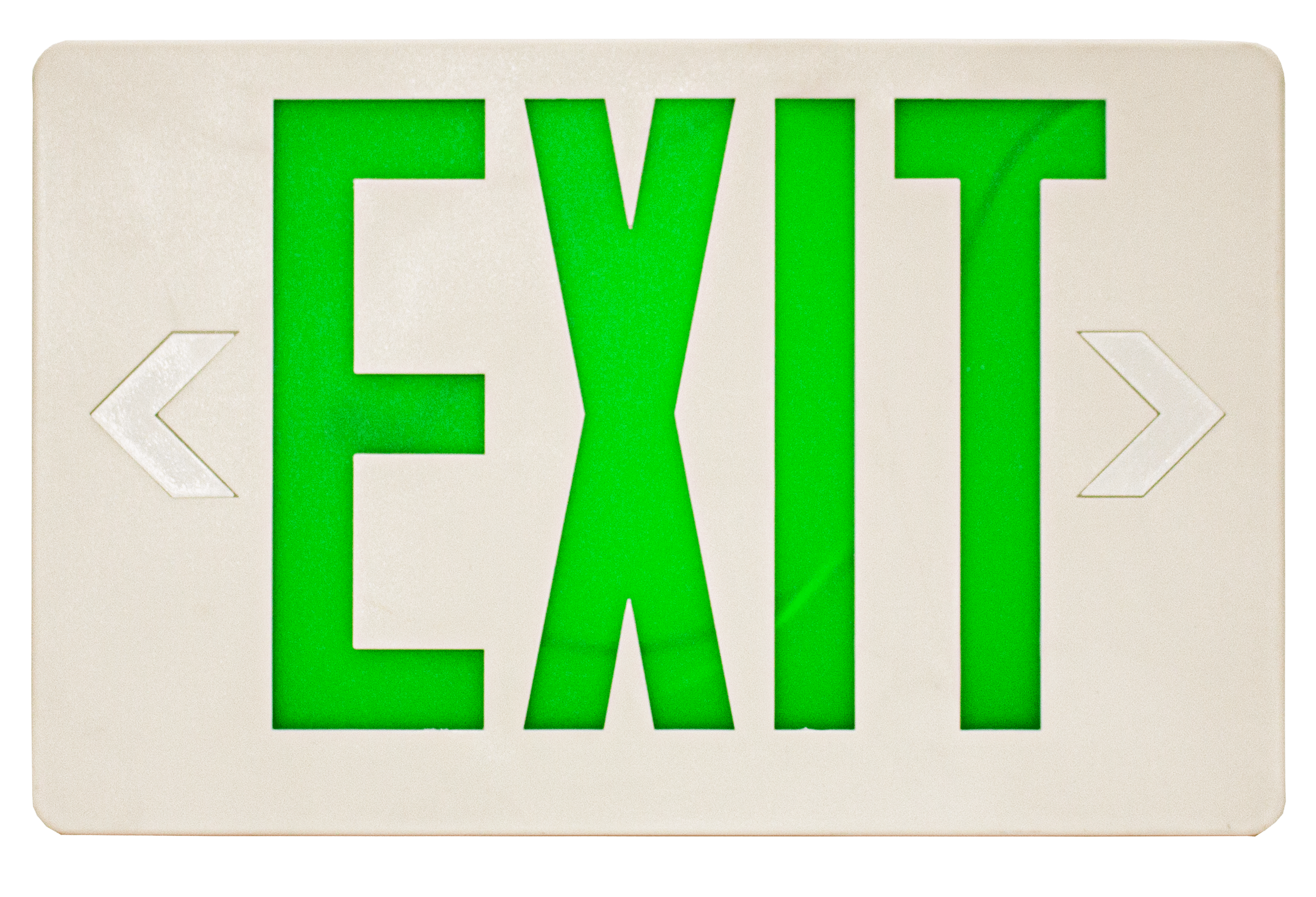

Westgate XTSL-GW, Super Slim White LED Exit Sign, 120-277V - White

Technical Specifications

• Voltage: 120-277V / 60Hz
• Input Power: 1.1W
• AC Charging Current: 20 mA
• Discharge time: 90mins
• Fully Automatic Solid-State, Two Rate Charger Initiates Battery Charging to Recharge a Discharged Battery in 24 hours
• Test Switch and Charge Indicator
• 1.2V Long Life, Maintenance-Free, Rechargeable Ni-MH Battery
• White Finish
• Universal Single/Double Faceplate
• Letters 6 height with 3/4 stroke.(AVZ-CM15-R)
• Operating Temperature: -17.78 F ~ 104 F
• Injection-molded thermoplastic ABS Housing, UL 94V-0 Flame Rating
• Innovative, Easy Installation in Minutes
• Ultra Bright RED LEDs
• Color Temperature: 1001K
• Total Lumen: 2.7 LM
• Internal Solid-State Transfer Switch Automatically Connects the Internal Battery to LED Board for Minimum 90-minute Emergency Illumination
• 5-year Warranty

Applications

• Ideal for every exit door, at the intersection of corridors, at exit stairways or ramps and such other locations
