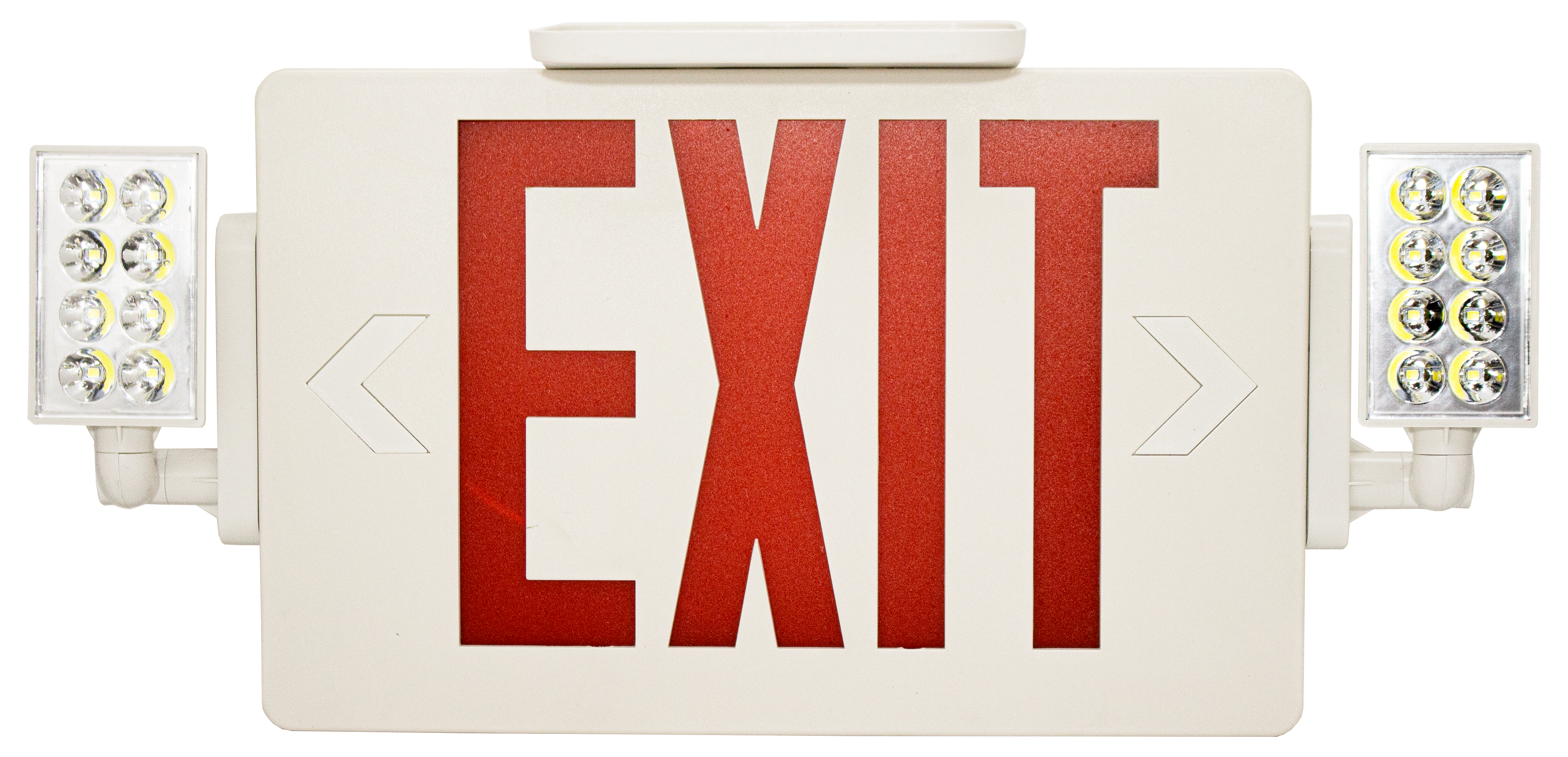

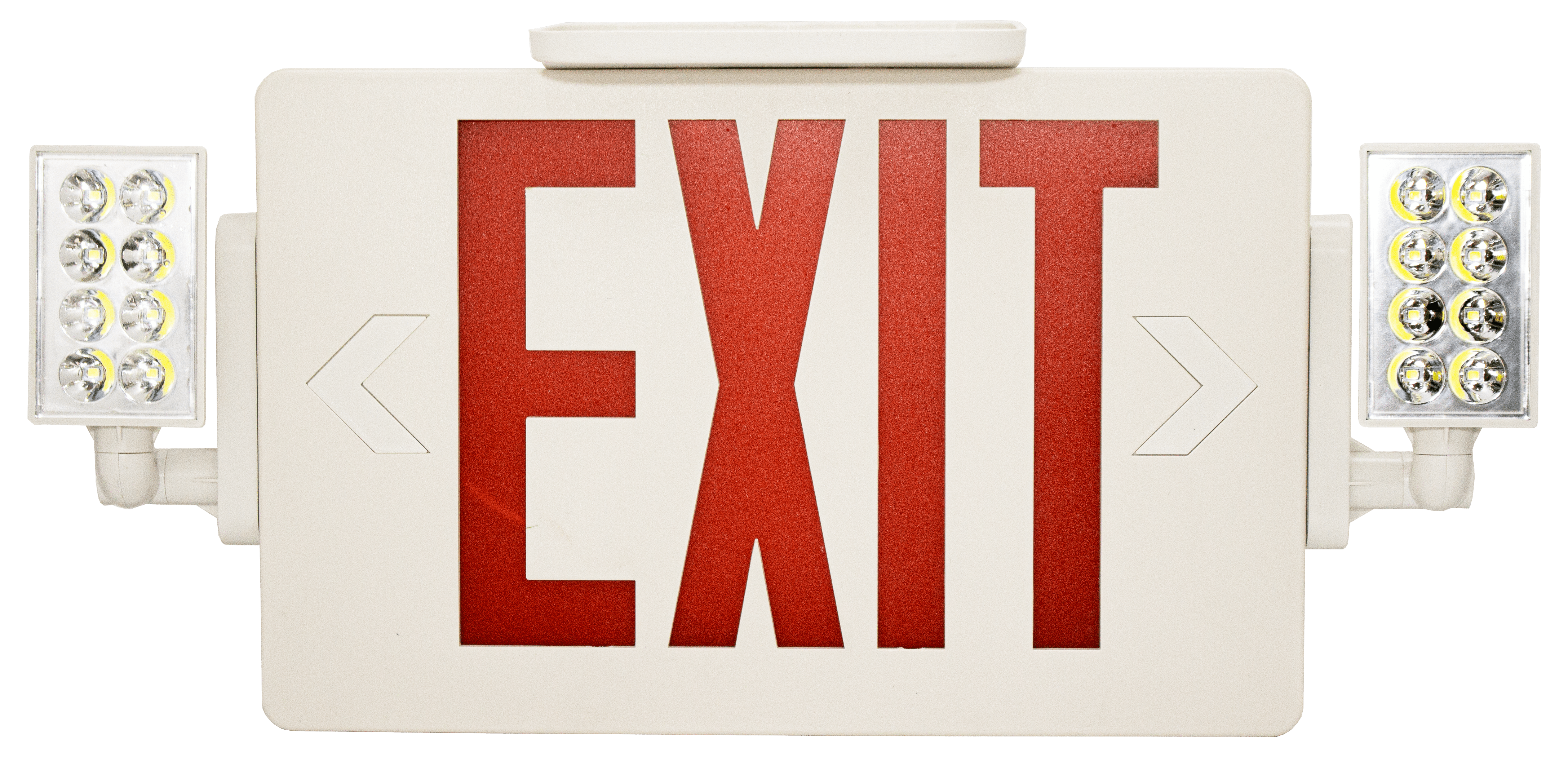

Westgate XTSL-CL-GW, Super Slim White LED Exit Sign With Adjustable LED Heads, 120-277V - White

Technical Specifications

• Voltage: 120-277V / 60Hz (Universal Voltage Operation)
• Watts: 1.2 per head
• Input Power: 2W
• AC charging current: 32mA
• Fully Automatic Solid-State, Two Rate Charger Initiates Battery Charging to Recharge a Discharged Battery in 24 hours
• 1.2V long Life, Maintenance-Free, Rechargeable Ni-MH Battery
• White Finish
• Letters 6 height with 3/4 stroke
• Operating Temperature: 32 F~104F
• Discharge Time: 90mins
• Universal Exit: Single or Double Face Wall (Back) or Ceiling Mount
• Injection-Molded Thermoplastic ABS Housing, UL 94V-0 Flame Rating
• Innovative, Easy Installation in Minutes
• Color Temperature: 1001K (AC) / 5558K (DC)
• Total Lumens: 10 LM (AC) / 326 LM (DC)
• Ultra Bright RED LEDs
• Internal Solid-State Transfer Switch Automatically Connects the Internal Battery to LED Board for Minimum 90-minute Emergency Illumination
• Charge Rate/Power ¡ON¡ LED Indicator Light and Push-to-Test Switch for mandated Code Compliance Testing

Applications

• Ideal for every exit door, at the intersection of corridors, at exit stairways or ramps and such other locations.
