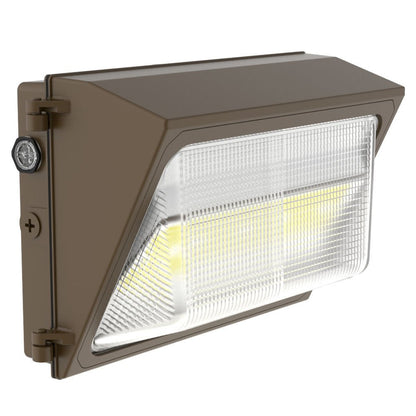

Westgate 65W, 5000K, WMXE-MD-25-65W-MCTP-P, Traditional Wall Pack with Photocell (Photocell Disconnect Switch) - Bronze

WestgateSKU: WMXE-MD-25-65W-MCTP-P

Precio:
Precio de venta$122.74

Gastos de envío calculados en la caja

Stock:
Disponible

Descripción

Technical Specifications

  • Input Wattage: 65W
  • Color Temperature: 5000K
  • Input Voltage: 120-277V AC 50/60Hz
  • Input current: 1.0 A
  • Power factor: 0.9
  • Efficacy: 140 LPW
  • ADC12 Aluminum Heat Sink, Outdoor Powder Coating
  • Lens: Prismatic Borosilicate Glass Lens
  • Same Footprint as Traditional HID Wall Packs
  • DC Button Photocell with ON/OFF switch Included
  • Four 1/2€� Hubs: 1 top. 1 on Each Side, 1 Rear
  • Mounting: Wall Mounting
  • Operating Temperature: -40°F ~ 104°F
  • Lifespan: 70000 Hrs.
  • IP rating: IP65, Wet Locations
  • Dimming: 0-10V Dimming
  • Multi-Power Switch is inside the Fixture
  • Total Lumens: 9100LM Max.
  • CRI: 70

Applications

  • Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas.
  • Replace existing HID wall packs
  • Great for use with photocell

Download PDF File

Catalog Page

Specification

Installation Instructions
