Brand: Orbit Industries, Inc. | Product No: SSB-5S-MKO
Orbit SSB-5S-MKO Simple Support Bracket With UMA & 5SDB-MKO-PT-10, Assembly - Galvanized
No se pudo cargar la disponibilidad de retiro
Pairs well with
Top-Rated Store • Read Reviews
Fast Shipping • Ships in 1–2 Business Days
30-Day Returns • See Terms
Secure Checkout • SSL Encrypted
Product details
Description
| Category | PREFAB | |
| Page | P1-P8 | |
| Barcode | 8-35243-00672-0 | |
| Description: | ||

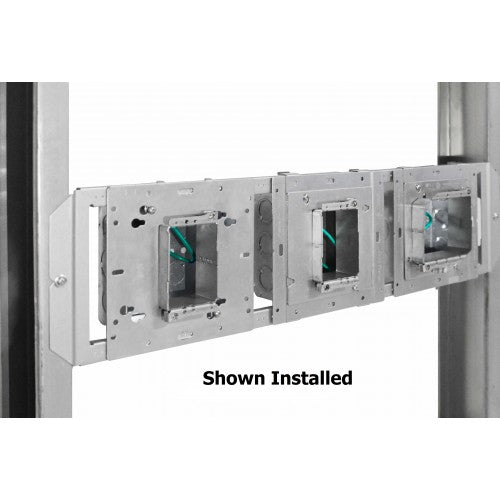

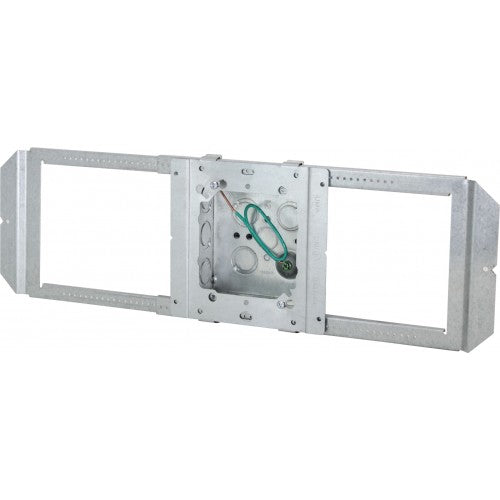

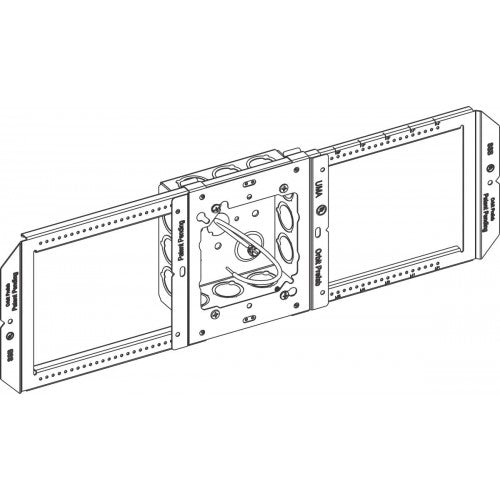

| Orbit's Preassembled SSB-T5 with UMA and 4-11/16" (5S) Box with Multi-KOs is a ready-to-install solution for mounting switches and outlets between wall studs or hard-lid ceiling joists. The SSB-5S-MKO bracket component adjusts from 15‚¬� to 25‚¬� with UMA attached to bracket. Includes 4-11/16‚¬� square 2-1/8‚¬� deep box with 3/4‚¬� to 1/2‚¬� eccentric knockouts, 1/2‚¬� knockouts, and preinstalled 10‚¬� pigtail. Patented. UL Listed. | ||
| Features: | ||
| - SSB-T5 bracket adjusts from 15" to 25" - Rigidity eliminates need for far-side back support - Includes 4-11/16‚¬� square 2-1/8‚¬� deep box with 1/2" KOs & 3/4‚¬� to 1/2‚¬� MKOs - Includes 10-32 Ground Screw with 10" Solid Cu. #12AWG Pigtail - Snap-on UMA adapter can be removed and installed quickly without tools - Slide 4-11/16‚¬� box to critical position - lock in place with one Tek screw - Horizontal pin holes provide quick starting point for screws - Two additional flat screw for mounting the box on UMA bracket - Two pre-raised #8-32 screws are ready for taking any ring or cover - Compatible with Orbit‚¬„¢s UL Adjustable Rings - Optional BMCS Series provides built-in cable/conduit support - Add LVSB Series Rings for low voltage applications that require no back-box - Ships preassembled, reducing installation time |
||
| Specifications: | ||
| Material | Sheet Steel | |
| Color | Galvanized | |
| Sides KOs | (2) - 1/2", (10) - MKO | |
| Bottom KOs | (2) - 1/2", (2) - MKO | |
| Packaging Info: | ||
| Std Pkg | 12 | |
| Certifications: | ||

|
||
| UL File Number: | ||
| E310661 | ||
Download PDF File
Specification
