Descripción
Category | PREFAB | |
Page | P1-P8 | |
Barcode | 8-35243-02218-8 | |
Description: | ||

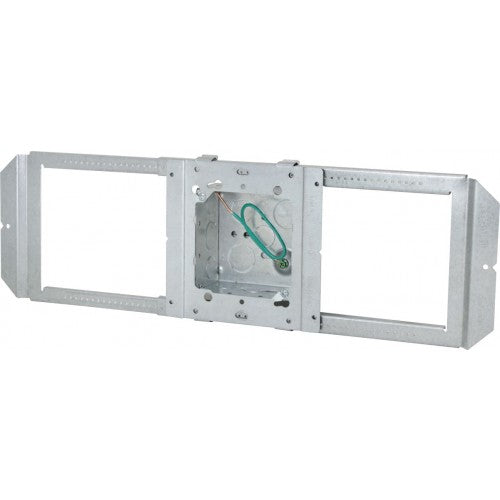

Orbit's Preassembled SSB-T5 with UMA and 4" (4S) Box with Multi-KOs is a ready-to-install solution for mounting switches and outlets between wall studs or hard-lid ceiling joists. The SSB-4S-MKO bracket component adjusts from 15€� to 25€� with UMA attached to bracket. Includes 4€� square 2-1/8€� deep box with 3/4€� to 1/2€� eccentric knockouts, 1/2€� knockouts, and preinstalled 10€� pigtail. UL Listed. | ||
Features: | ||
- SSB-T5 bracket adjusts from 15" to 25" - Rigidity eliminates need for far-side back support - Includes 4€� square 2-1/8€� deep box with 1/2" KOs & 3/4€� to 1/2€� MKOs - Includes 10-32 Ground Screw with 10" Solid Cu. #12AWG Pigtail - Snap-on UMA adapter can be removed and installed quickly without tools - Slide 4€� box to critical position - lock in place with one Tek screw - Horizontal pin holes provide quick starting point for screws - Compatible with Orbit€™s UL Adjustable Rings - Optional BMCS Series provides built-in cable/conduit support - Add LVSB Series Rings for low voltage applications that require no back-box - Ships preassembled, reducing installation time |
||
Specifications: | ||
Material | Sheet Steel | |
Color | Galvanized | |
Sides KOs | (8) - 1/2", (4) - MKO | |
Bottom KOs | (2) - 1/2", (2) - MKO | |
Packaging Info: | ||
Std Pkg | 12 | |
Certifications: | ||
![]() ![]() |
||
UL File Number: | ||
E310661 |
Download PDF File
Specification
