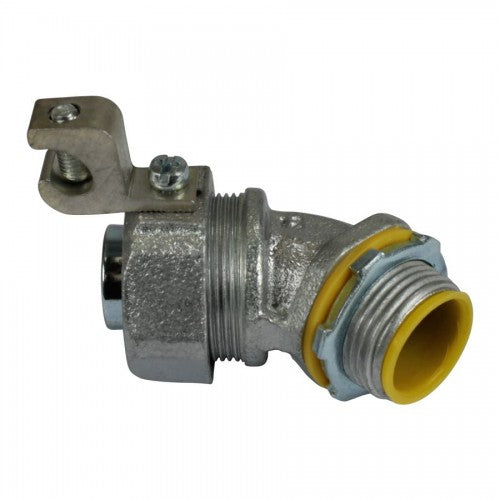

Orbit MLTI45LL-350 Insulated Liquidtight Connector, Malleable Iron 45D, Aluminum Lug, 3-1/2"

Orbit Industries, Inc.SKU: MLTI45LL-350

Precio:
Precio de venta$ 278.90

Gastos de envío calculados en la caja

Stock:
Disponible

Retiro disponible en Sonic Electric

Normalmente está listo en 24 horas

Descripción

Category PIPE FITTING
Page D20
Description:
Orbit Industries’ Malleable Iron Insulated 45° Angle Liquid Tight Connectors with Aluminum Lug is designed for use in outdoor or indoor locations on flexible metallic liquid-tight conduits and Type B flexible non-metallic liquid tight conduits when installation of a copper or aluminum external bonding jumper is necessary. The connector slips on and quickly grips onto the conduit jacket, preventing any pullouts or breakage of the perfect seal. The sealing washer maintains a liquid tight seal when terminating the connector in an unthread opening.

Features:
- Malleable iron construction ensures mechanical protection for the raceway
- Zinc electroplated for added corrosion protection
- Insulated throat, 105°C rated
- Sealing washer Included
- Used with flexible metallic liquid-tight conduit and Type B flexible non-metallic liquid tight conduits
- Aluminum lay-in lug for use with copper or aluminum grounding conductor
- Aluminum lug and heavy duty locknut ensures proper grounding

Certifications:
UL

UL File Number:
E310659

CAT NO UPC TRADE SIZE Lug Range STD PKG MASTER CTN
MLTI45LL-38  835243016637 3/8" #14 - #4 10 100
MLTI45LL-50  835243016644 1/2" #14 - #4 10 100
MLTI45LL-75 835243016651  3/4" #14 - #4 10 100
MLTI45LL-100  835243016668 1" #14 - #4 5 50
MLTI45LL-125  835243016675 1-1/4" #14 - #4 - 5
MLTI45LL-150 835243016682  1-1/2" #14 - #4 - 5
MLTI45LL-200 835243016699  2" #14 - #4 - 5
MLTI45LL-250 835243016705  2-1/2" #14 - 1/0 - 1
MLTI45LL-300 835243016712 3" #14 - 1/0 - 1
MLTI45LL-350 835243016729  3-1/2"  #6 - 250MCM - 1
MLTI45LL-400 835243016736  4"  #6 - 250MCM  - 1

Download PDF File

Specification
