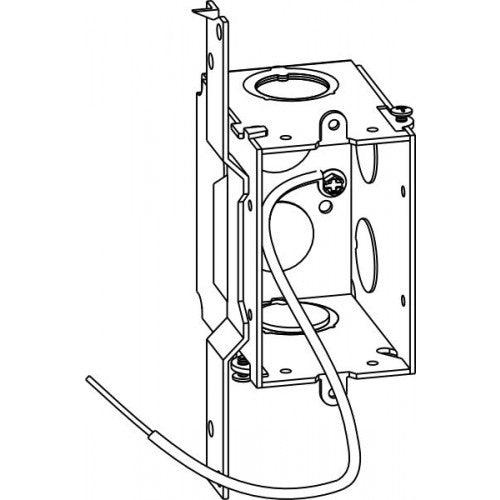

Orbit GMB-1-FB 1-Gang Gangable Switch Box 2-3/4" Deep With FB Bracket - Galvanized


Choose Pack: 1 Pack
Precio:
Precio de venta$3.87

Gastos de envío calculados en la caja

Stock:
Disponible

Descripción

Category SWITCH BOX
Page A35
Barcode 8-35243-01200-4

Description:
Intermediate Depth Gangable Switch Box, With FB Bracket, 9/16" Setback

Features:
- Removable side cover for multigang applications
- FB Bracket for offset mounting on flat side of stud or joist
- With Pre-assembled 7" Solid Cu. #12AWG Pigtail and 10-32 Ground Screw

Dimensions:
Width 2"
Height 3"
Depth 2 - 3/4"
Cu In 14.0


Specifications:
Material 16 GA Sheet Steel
Color Galvanized
Bracket FB, 9/16"
No. of Gangs 1
KO Sides (2) - 1/2"
KO Ends (2) - MKO
KO Bottom (2) - 1/2"

Packaging Info:
Std Pkg 50
Weight 36 lbs

Certifications:
ul certification    steel products rohs certification

UL File Number:
E227970

Download PDF File

Specification
