GDB-1-NM-FB

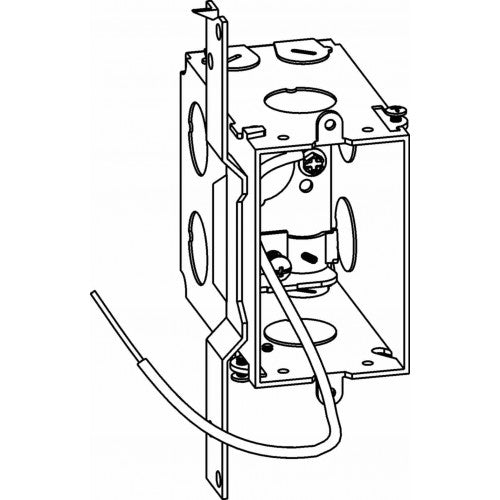

Orbit GDB-1-NM-FB 1-Gang Gangable NM Switch Box 3-1/2" Deep & FB Bracket
Ships in 1-2 Business Days
Rated 5-Stars on Google
30-Day Return Policy
Pairs well with
| Category | SWITCH BOX | |
| Page | A36 | |
| Barcode | 8-35243-01166-3 | |
| Description: | ||
| 3 - 1/2" Deep Gangable Switch Box, With NM Cable Clamps & FB Bracket, 9/16" Setback | ||
| Features: | ||
| - With Pre-assembled 7" Solid Cu. #12AWG Pigtail and 10-32 Ground Screw - Removable side cover for multigang applications - NM Clamp for Non-Metallic Sheathed Cables with ground - FB Bracket for offset mounting on flat side of stud or joist |
||
| Dimensions: | ||
| Width | 2" | |
| Height | 3" | |
| Depth | 3 - 1/2" | |
| Cu In | 18.0 | |
| Specifications: | ||
| Material | 16 GA Sheet Steel | |
| Color | Galvanized | |
| Clamp Type | NM | |
| Bracket | FB, 9/16" | |
| No. of Gangs | 1 | |
| KO Sides | (4) - 1/2" | |
| KO Ends | (2) - 1/2", (4) -Loom | |
| KO Bottom | (1) - 1/2" | |
| Packaging Info: | ||
| Std Pkg | 50 | |
| Weight | 44 lbs | |
| Certifications: | ||

|
||
| UL File Number: | ||
| E227970 | ||
Download PDF File
Specification
Orbit GDB-1-NM-FB 1-Gang Gangable NM Switch Box 3-1/2" Deep & FB Bracket
