Category | NEMA ENCLOSURES |
Page | P26 |
Barcode | 8-35243-02849-4 |
Description: | |

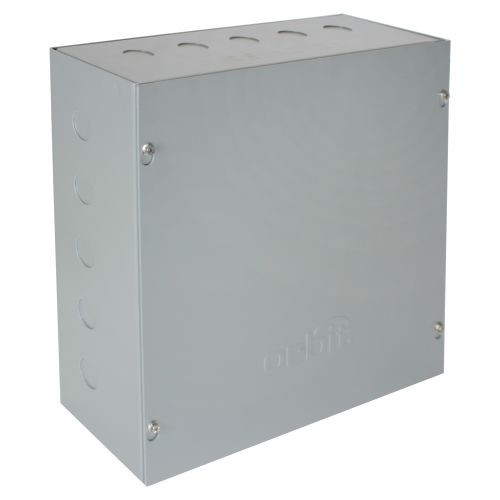

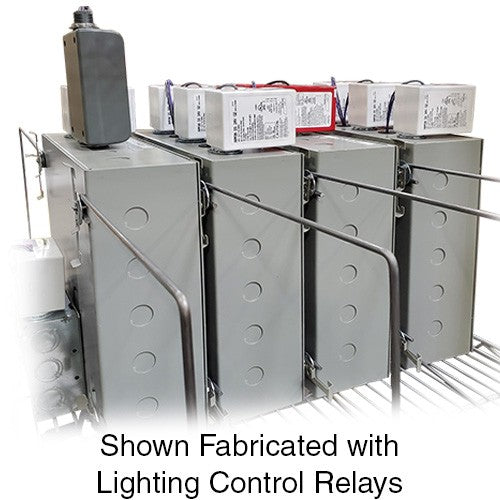

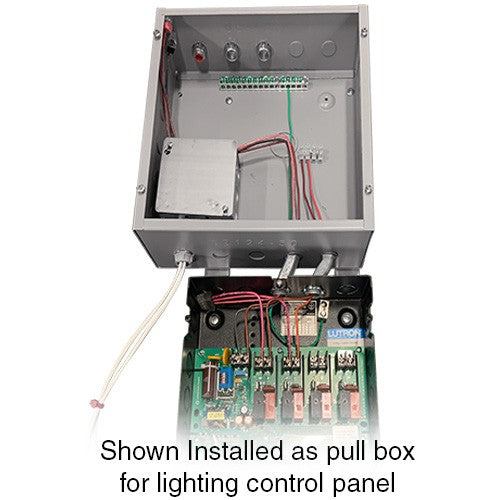

Orbit’s 12124-50 is a Specialty NEMA Type 1 enclosure ideal for Lighting Control Relay Systems or as a Home Run pull-box. Specialty K.O. pattern eliminates the need to manually punch knockouts in standard NEMA 1 enclosure. | |
Features: | |
- ANSI 61 Gray Polyester Powder Paint Finish Inside and Out - 16 Gauge Steel or Plated Steel - Mounting Holes on back of box (1-1/16" distance from back of box to bottom of K.O.) |
|
Dimensions: | |
Width | 12" |
Height | 12" |
Depth | 4" |
Specifications: | |
Material | Gauge or Plated Steel |
Color | Gray |
K.O. | (20) - 1/2" K.O. on Sides (1) - 1" & 1-1/4" CKO on Back |
Packaging Info: | |
Std Pkg | 2 |
Certifications: | |
UL File Number: | |
E331152 |
