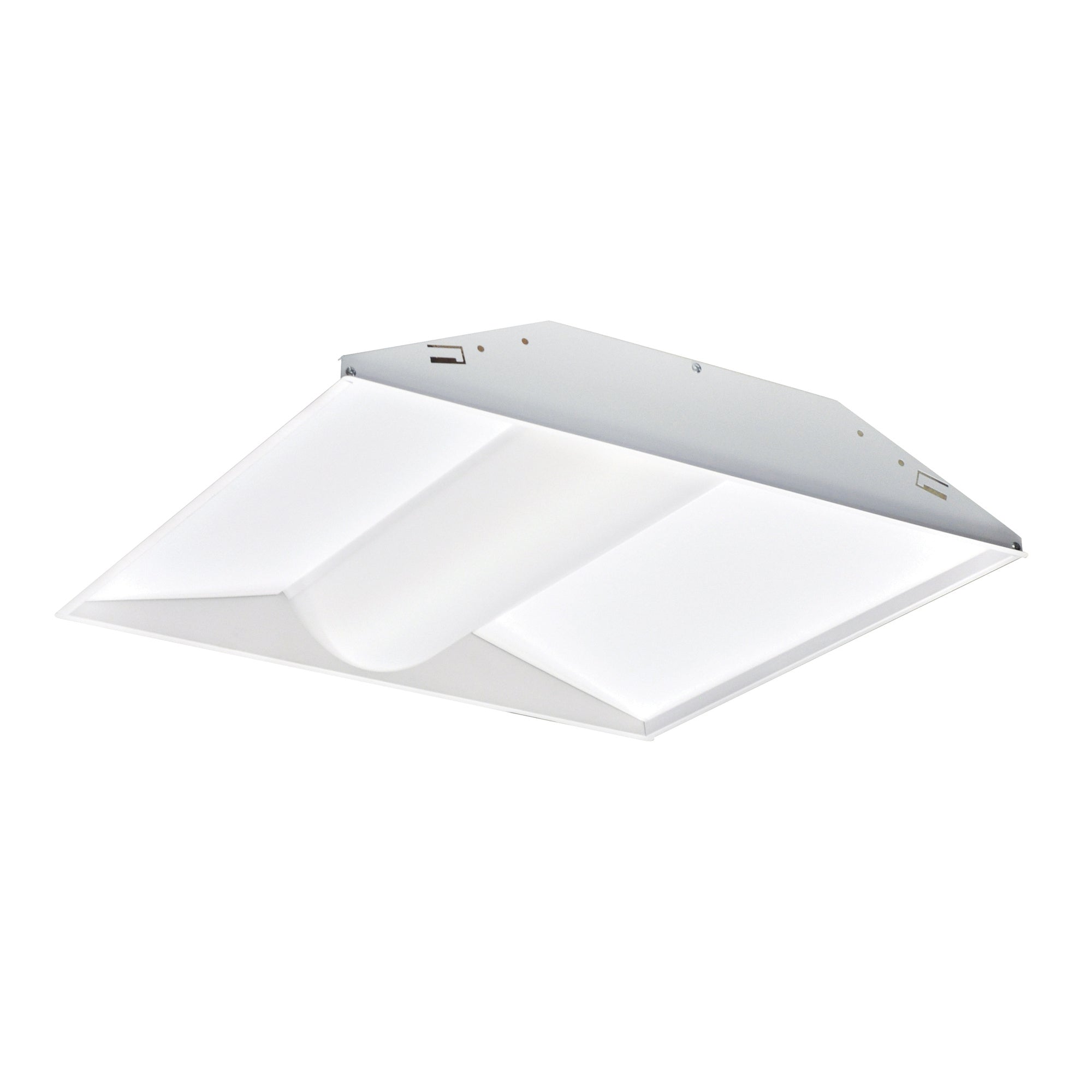

Nora Lighting NPTCB-E22/50W 2x2 LED Center Basket Troffer, 5000K, White

Details of the Nora Lighting NPTCB-E22/50W 2x2 LED Center Basket Troffer, 5000K, White

Energy-efficient and economical Center Basket LED Troffer produces an incredible amount of smooth and uniform general lighting. Fixtures are 120V/277V with 0“10V dimming, are available in a range of Kelvin temperatures and are DLC listed. The fixtures include a diffused, removable lens, a hinged access plate with LED board and built-in earthquake clips. The shallow housing design and easy access wiring plate make the Center Basket Troffer a quick installation. Ideal for use in task areas where general illumination is desired such as offices, schools, conference rooms, libraries, retail, hospitals and others.

Features

• Architectural style and quality

• Complete room illumination

• 3400 Lumen output utilizing 33W

• 3000K, 3500K, 4000K or 5000K Color Temperatures

• Soft, uniform reflectance

• Fits most grid ceilings

• Removeable diffused lens evenly distributes light and maximizes performance

• Two replaceable LED Strips with tightly spaced diodes eliminate diode image

• Enclosed driver compartment easily accessible from below via hinged LED platform

• Built-in earthquake clips

• Dimmable with compatible 0-10V dimmer

• 100-277V

• cULus Damp Location Listed

• DLC listed

Specification

• Brand: Nora Lighting
• SKU: NPTCB-E22/50W
• UPC: 732180006861
• Product Line: LE57
• Product Family: Center Basket Troffer
• Product Type: Troffer
• Color Temperature: 5000K
• Wattage: 33W
• Lumens: 3400lm
• CRI: 85
• Product Dimensions (W x H x L): 23.75 x 4.25 x 23.75
• Finish Color: White
• Product Weight (lb): 9.5

Photometric Layout
