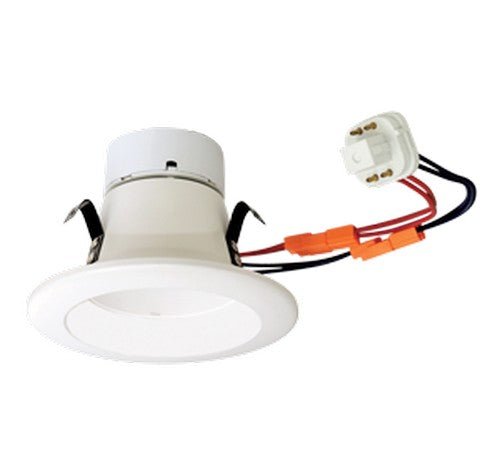

ELCO Lighting ECF41535W 9W 4 Inch LED CFL Retrofit Insert 3500K 700lm - White Finish

ELCO Lighting's inserts are engineered with energy-efficient LED technology that produces even illumination with an incredible 93+ CRI. Designed to be used for New Construction, Remodel, and Retrofit applications, these inserts are rated for a life of 50,000 hours, and meet the Title 24 and Energy Star requirements. Suitable for IC and Non-IC housings manufactured by ELCO or others.

FEATURES :

• 9W / 700 lm

• CRI 90+

• Title 24 Compliant

• IC Rated

• 50,000 hrs. life span

• 5‚¬³ O.D.

• CA Title 24, ENERGY STAR, JA8-2016-E.

• Life Span of 50,000 hours L70.

• 4-Pin Connector to adapt to existing 4-Pin Socket (Electronic ballast CFL) included.

• 2-Pin Connector to adapt to 2-Pin Socket (Magnetic ballast CFL) sold separately.


SPECIFICATIONS :

• Wattage : 9W

• Lumens : 700 lm

• Voltage : 120/277V

• Color Temp. : 2700K - 5000K

• Lamp Type : LED
  CRI : 90+

Optics: Frosted polycarbonate lens diffuses light evenly throughout while reducing glare with LED Array technology.

Construction: For use in IC and non-IC housings. Spun Aluminum for greater heat dissipation. High quality powder coat finish preventing rust and paint cracking.

Installation: 4-Pin Connector to adapt to existing 4-Pin Socket (Electronic ballast CFL) included. 2-Pin Connector to adapt to 2-Pin Socket (Magnetic ballast CFL) sold separately.

Electrical: Driver connects to 120/277V power supply. High Efficiency driver with a power factor > 0.9. Start time of less than .75 seconds.

LED Technology: Extremely accurate color rendering with 93+ CRI. Lumen Maintaince of 50,000 hours L70 Life based on LM80 standardized test results. Superior Thermal Management by utilizing integral heat sink. Instant On to Full Brightness. No LED pixelation.

Warranty: ELCO Products are built to last with a 5-year Limited Warranty.

Labels and Listings:
UL Listed for wet location.
RoHS Compliant.
ENERGY STAR® Certified.
California Title 24 JA8-2016-E.
