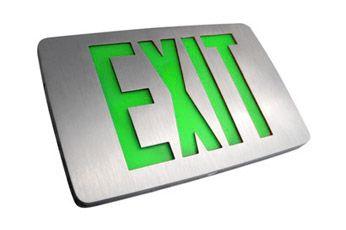

Westgate XD-TH-1GWWEM Thin Die cast Green Led Single Face Exit Sign 120~277V

• Dual 120/277 voltage
• Charge rate/power š¬ššœONš¬šš½ LED indicator light and push-to-test switch for mandated code compliance testing
• 2.4V long life, maintenance-free, rechargeable NiCd battery
• Internal solid-state transfer switch automatically connects the internal battery to the LED board for minimum 90-minute emergency illumination
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours
• Premium-grade, aluminum housing (also available in black or white powder-coated finishes)
• Field selectable knockout chevron directional indicators
• Quick-snap face plate closure
• Specification-grade, low profile thin aluminum die-cast design
• Available specifically in single face only
• UL listed for wet locations (0C š¬ššœ 50C)
• Ultra-bright, energy efficient, long life green LED
• Aluminum mounting canopy included for top or end
• Universal K/O pattern on the back plate for wall mount
• Five-year warranty on all electronics and housing
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, local and state codes

Applications

• High impact thermoplastic energy-efficient LED exit with emergency battery backup
