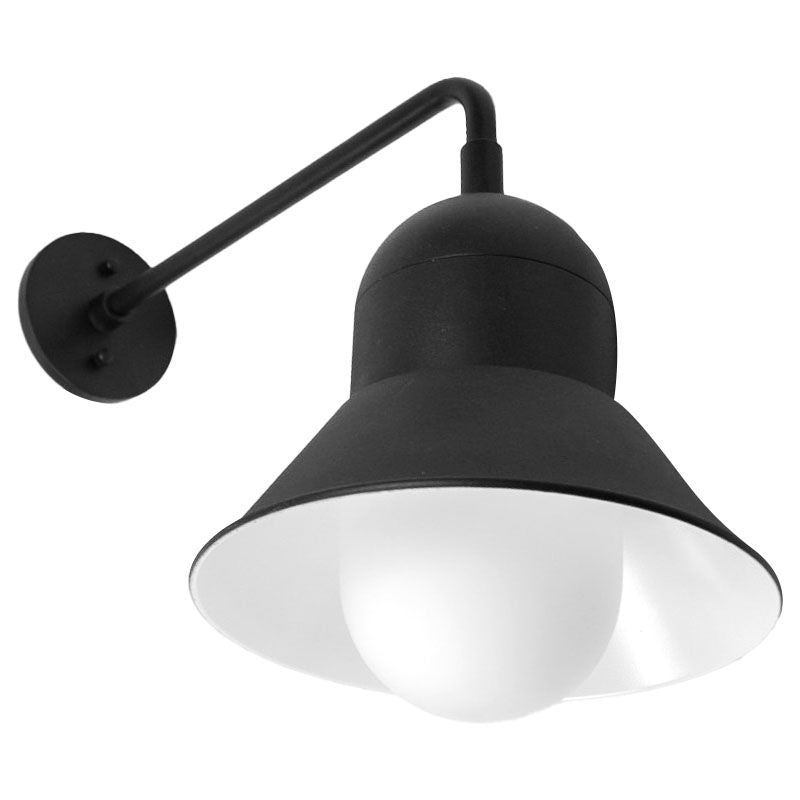

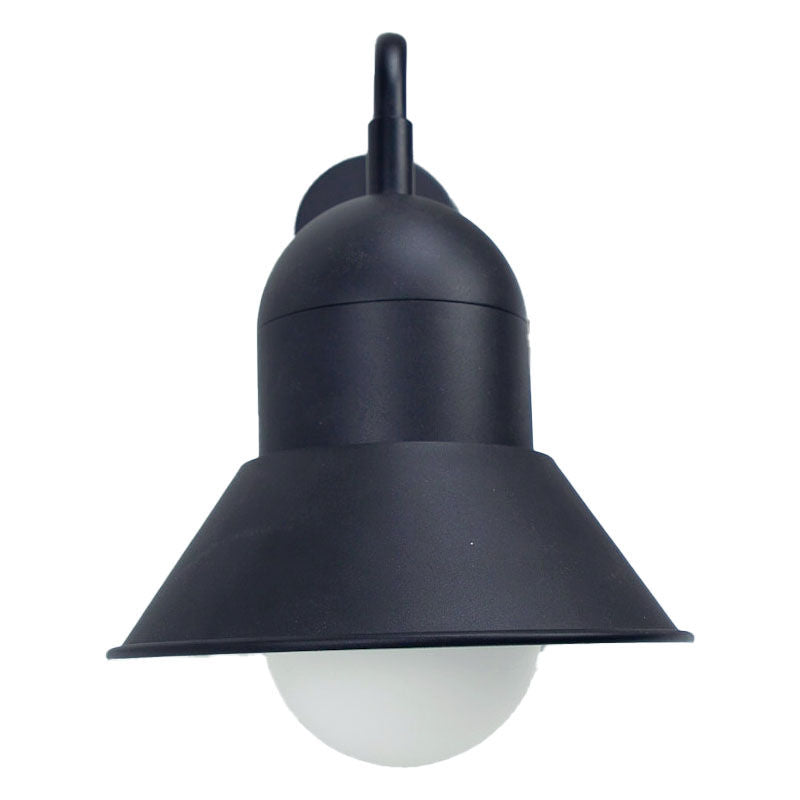

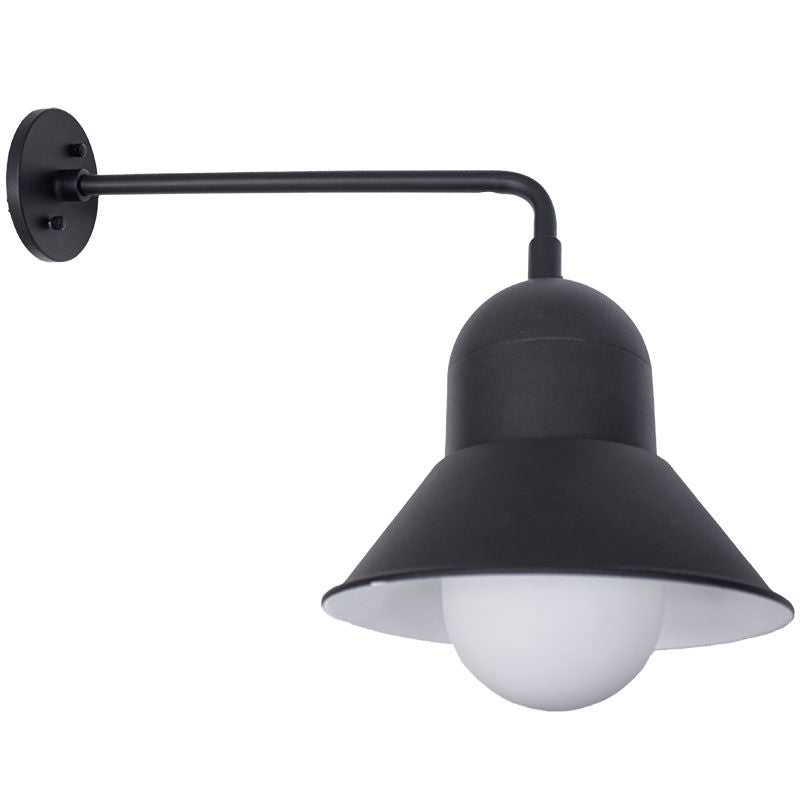

Westgate WSX-20-40W-MCTP-HLA Spec Series Power & CCT - Adjustable X-Gen Seaside 15" Long Horizontal Arm Light

WestgateSKU: WSX-20-40W-MCTP-HLA

Price:
Sale price$128.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277V AC 60Hz
  • Wattage: 20W/30W/40W
  • Power Factor: >0.90
  • Efficacy: 100 LPW

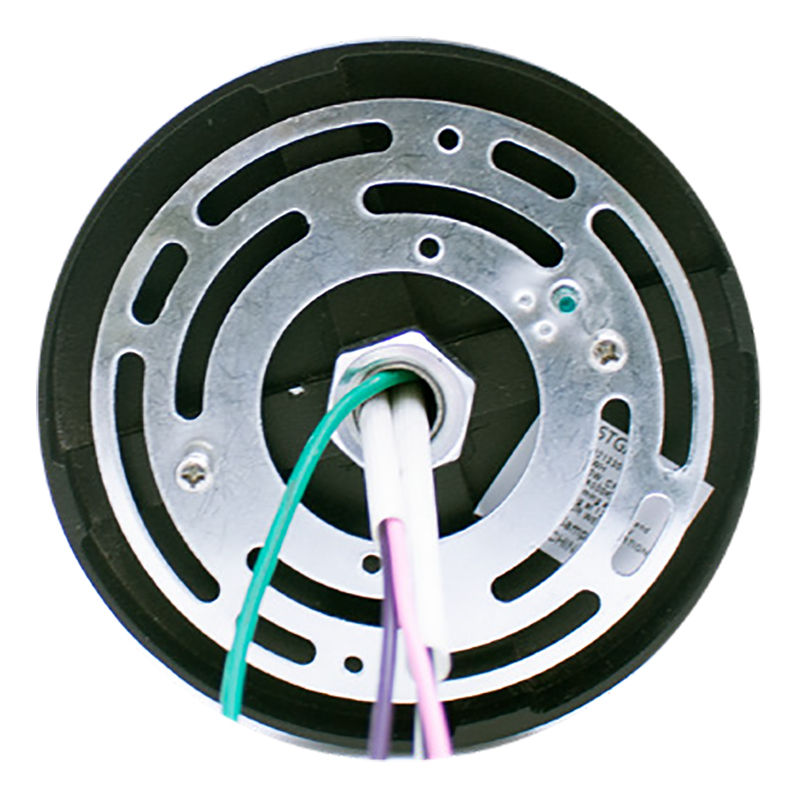

  • Aluminum Housing and Steel Back Plate
  • White Glass Lens
  • Operating Temperature: -4ºF to 104ºF
  • Wet Location
  • 7-Year Warranty
  • IP42, Suitable for outdoor use
  • Dimming: Dimming: (Dual Function) Triac Dimmable at 120V & 0-10V Dimming at 120-277V
  • Total Lumens: 4000LM Max.
  • Color Temperatures: 3000K/4000K/5000K
  • Color Rendering Index: CRI ‰¥ 80
  • Beam Angle: 90 x 110
  • Rated life: 70,000 Hrs

Applications

  • LED Seaside Outdoor Wall Lantern with aluminum housing & powder-coated finish, acrylic diffuser. Ideal for general site lighting, residential buildings, doorway, pathways and parking areas.

Download PDF File

Catalog Page

Specification
