Westgate WMXE-MD-45-85W-MCTP-P Traditional Wall Pack with Photocell (Photocell Disconnect Switch) - Bronze

WestgateSKU: WMXE-MD-45-85W-MCTP-P

Price:
Sale price$147.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Input Wattage: 25-150W
  • Input Voltage: 120-277V AC 50/60Hz
  • Input current: 1.0-1.4 A
  • Power factor: >0.9
  • Efficacy: 140 LPW
  • Dimming: 0-10V Dimming
  • Chip: Lumileds LEDs
  • Multi-Power Switch is Inside The Fixture
  • Total Lumens: 21000LM Max.
  • Color Temperature: 3000K/4000K/5000K
  • CRI: >70
  • ADC12 Aluminum Heat Sink, Outdoor Powder Coating
  • Lens: Prismatic Borosilicate Glass Lens
  • Same Footprint as Traditional HID Wall Packs
  • Four 1/2€� Hubs: 1 Top. 1 on Each Side, 1 Rear
  • Mounting: Wall Mounting
  • Operating Temperature: -40F ~ 104F
  • Lifespan: 70000 Hrs.
  • IP rating: IP65, Wet Locations

Applications

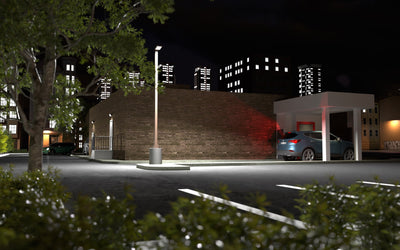

  • Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas.
  • Replace existing HID wall packs
  • Great for use with photocell

Download PDF File

Catalog Page

Specification

Installation Instructions
