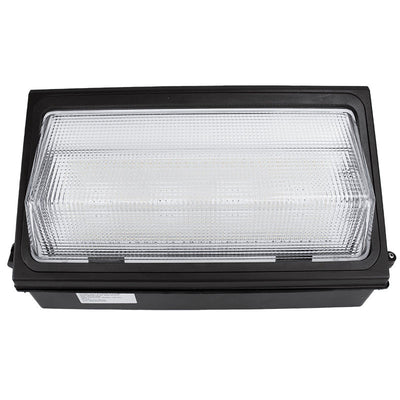

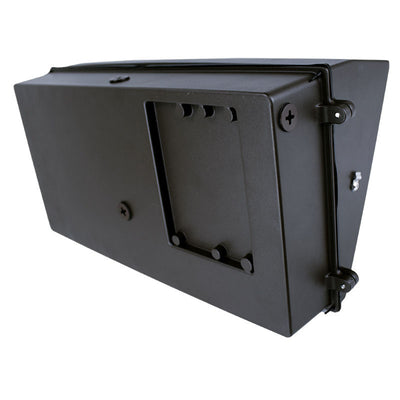

Westgate WMXE-EM-SERIES 80-120W Adjustable Traditional Glass Lens Wall Pack with Emergency Backup - Black

WestgateSKU: WMXE-MD-80-120W-MCTP-P-EM-BK

Price:
Sale price$312.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Input Wattage: 25W-150W
  • Input Voltage: 120-277V AC 50/60Hz
  • Input Current: 1.0 A
  • Power Factor: >0.9
  • Efficacy: 140 LPW
  • ADC12 Aluminum Heat Sink, Outdoor Powder Coating
  • Lens: Prismatic Borosilicate Glass Lens
  • Same Footprint as Traditional HID Wall Packs
  • DC Button Photocell with ON/OFF Switch Included
  • Four 1/2" Hubs: 1 Top, 1 on Each Side, 1 Rear
  • Mounting: Wall Mounting
  • Operating Temperature: -40F ~ 104F
  • IP67 Stainless Steel Test Button with Integrated Indicator Light, Wet Locations
  • Dimming: 0-10V Dimming
  • Multi-Power Switch is Inside the Fixture
  • Total Lumens: 9100LM-21000LM
  • Color Temperature: 3000K/4000K/5000K
  • 8W, 48V, 2500mAh Li-ion Battery for Minimum 90 Minutes Emergency Operation
  • CRI: >70
  • Lifespan: 70000 Hrs

Applications

  • Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas.
  • Replace existing HID wall packs
  • Great for use with photocell

Download PDF File

Catalog Page

Specification

Installation Instructions
