- Brand: Westgate
- Product No: WMXE-MD-45-85W-MCTP-P-EM

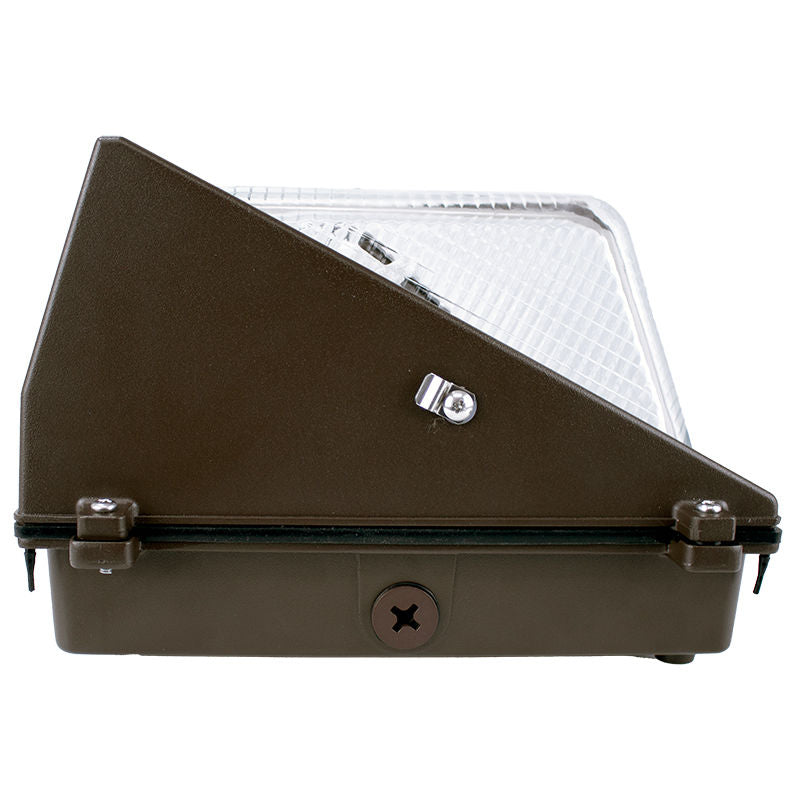

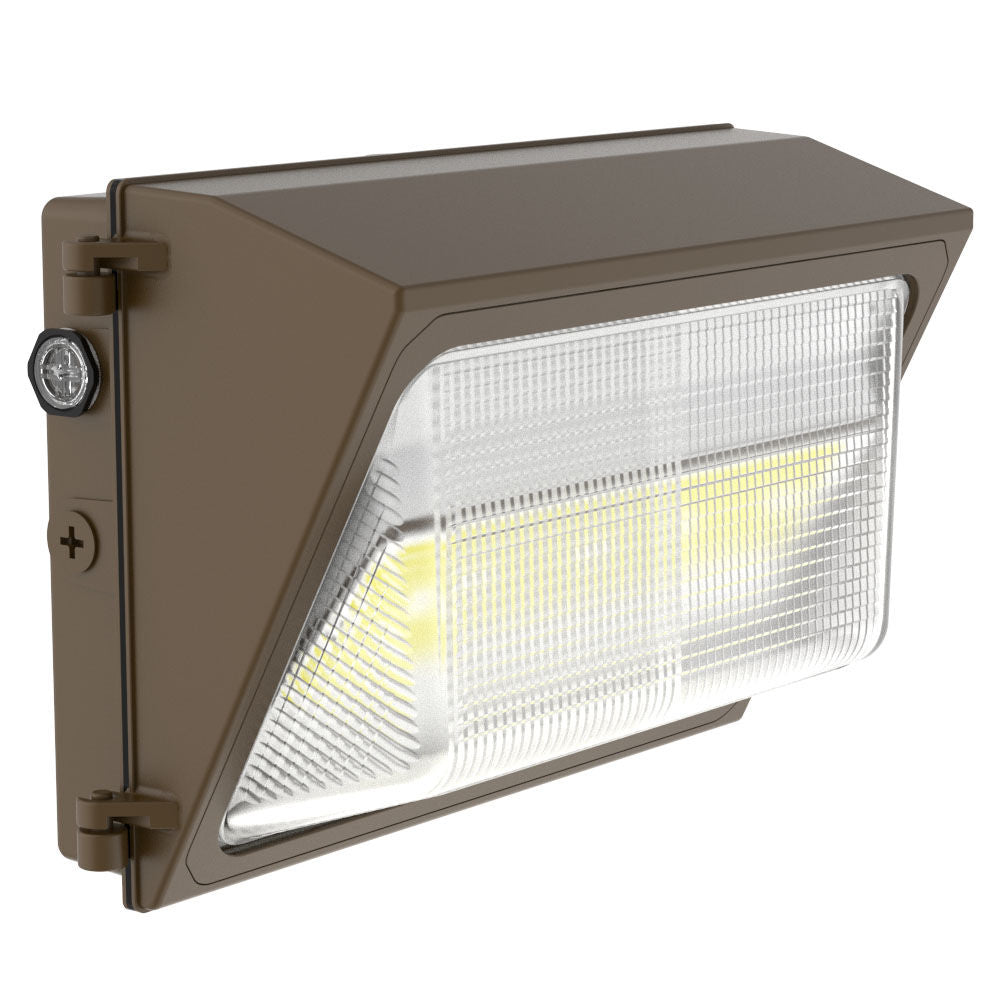

Westgate WMXE-EM-SERIES 45-85W Adjustable Traditional Glass Lens Wall Pack with Emergency Backup - Dark Bronze
Couldn't load pickup availability
Pickup available at Sonic Distribution Center
Usually ready in 24 hoursPairs well with
Westgate WMXE-EM-SERIES 45-85W Adjustable Traditional Glass Lens Wall Pack with Emergency Backup - Dark Bronze
Fast & Reliable Shipping
Orders processed in 1–2 business days.
Hassle-Free Returns
30-day returns on eligible items. Read Terms
Knowledgeable Support
Get expert help via chat, email or phone.
Top-Rated Store
Trusted by 20,000+ customers. Read Reviews
Product Details
Description
Technical Specs
- Input Wattage: 25W-150W
- Input Voltage: 120-277V AC 50/60Hz
- Input Current: 1.0 A
- Power Factor: 0.9
- Efficacy: 140 LPW
- ADC12 Aluminum Heat Sink, Outdoor Powder Coating

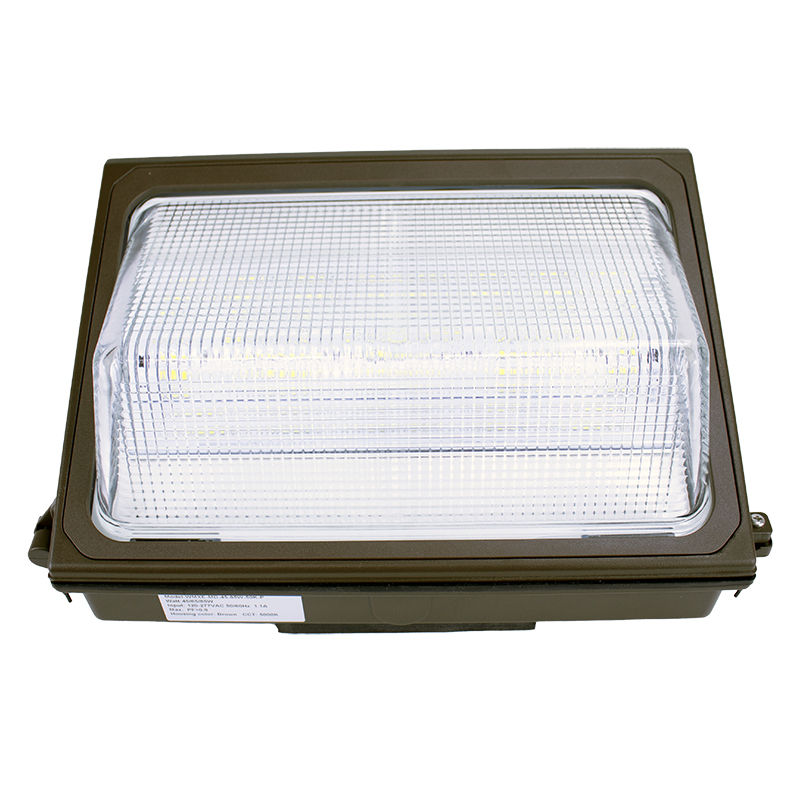

- Lens: Prismatic Borosilicate Glass Lens
- Same Footprint as Traditional HID Wall Packs
- DC Button Photocell with ON/OFF Switch Included

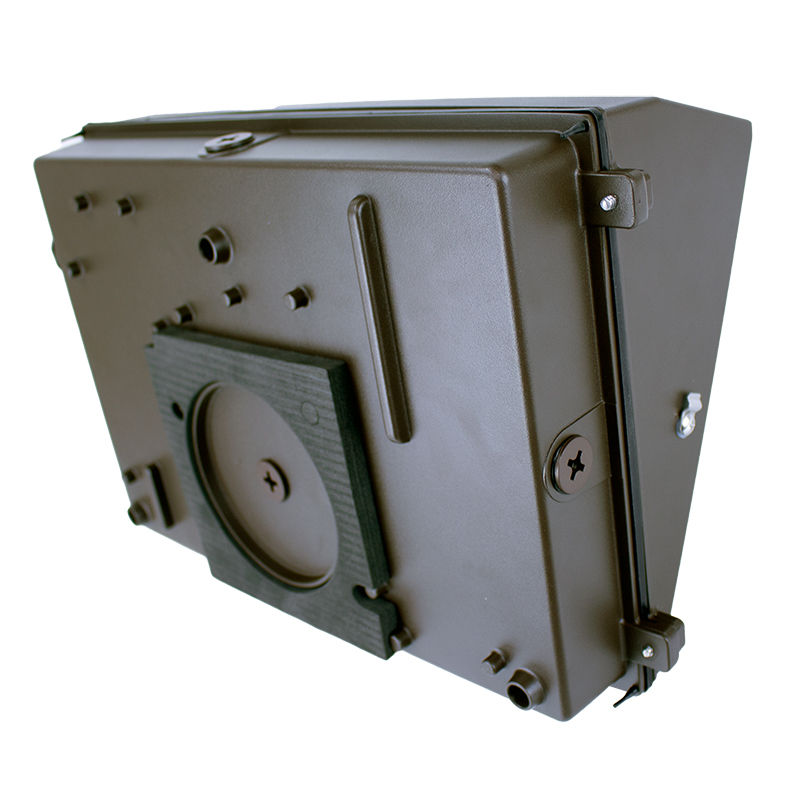

- Four 1/2" Hubs: 1 Top, 1 on Each Side, 1 Rear
- Mounting: Wall Mounting
- Operating Temperature: -40F ~ 104F
- IP67 Stainless Steel Test Button with Integrated Indicator Light, Wet Locations
- Dimming: 0-10V Dimming
- Multi-Power Switch is Inside the Fixture
- Total Lumens: 9100LM-21000LM
- Color Temperature: 3000K/4000K/5000K
- 8W, 48V, 2500mAh Li-ion Battery for Minimum 90 Minutes Emergency Operation
- CRI: 70
- Lifespan: 70000 Hrs
Applications
- Ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas.
- Replace existing HID wall packs
- Great for use with photocell
Download PDF File
Catalog Page
Specification
Installation Instructions
