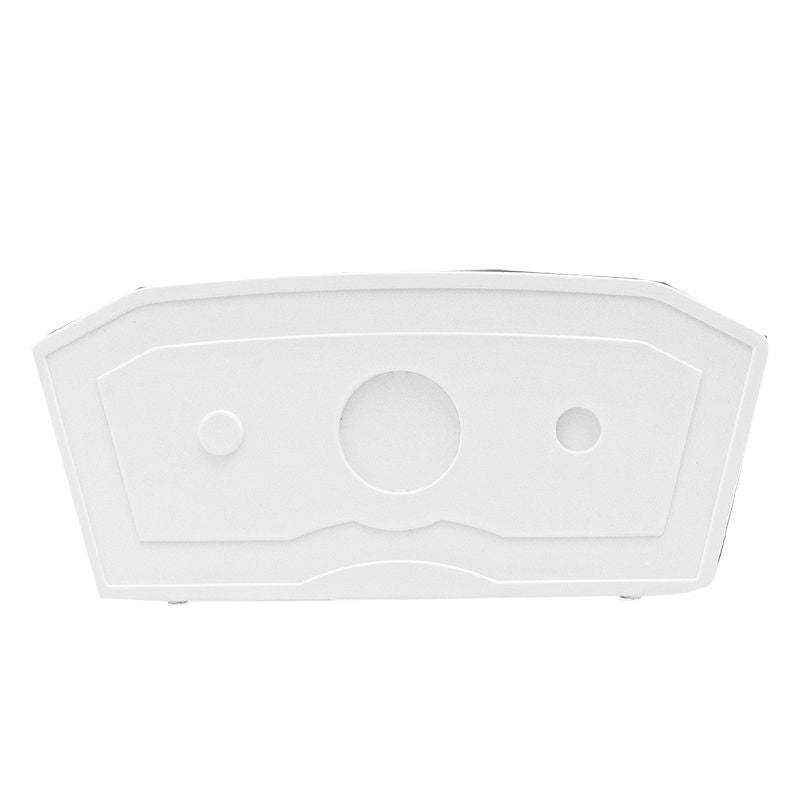

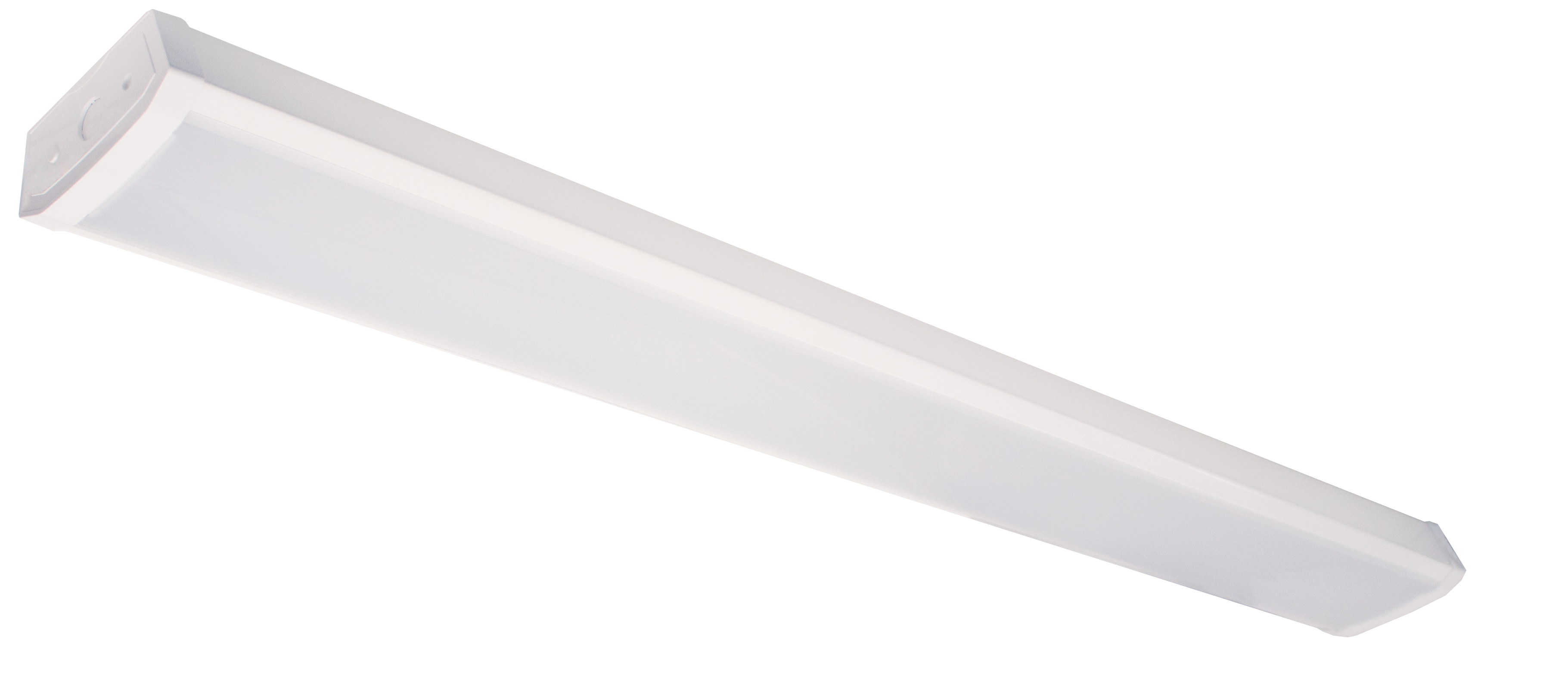

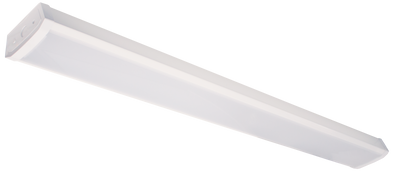

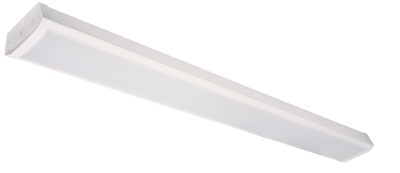

Westgate WAE-4FT-MCT-DD-EM-SEN LED Economy Wrap-Around Fixture with Sensor - White

WestgateSKU: WAE-4FT-MCT-DD-EM-SEN

Price:
Sale price$191.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277V AC 60Hz
  • Wattage: 40W
  • Power Factor: >0.99
  • Efficacy: 80 LPW
  • White Finish
  • Housing: Die-formed Cold Rolled Steel With Powder Coated White
  • Installation: Ceiling-Mounted
  • Operating temperature: -22F~104F
  • 5-Year Warranty
  • Detection Range: 17Ft. / 360
  • Mounting Height: 25 Ft. Max.
  • DIP Settings switch on The Sensor
  • Optional Remote Control (WEC-3RC)
  • Output Power: 9W
  • Output Voltage: 48V
  • Li-Ion Battery / >90 Minutes Emergency Operation
  • Test Button Installed on The Side of The Fixture
  • Dimming: (Dual Function) Triac Dimmable at 120V & 0-10V Dimming at 120-277V
  • Lens: Polycarbonate Lens
  • Total Lumens: 3200LM
  • Color Temperatures: 3000K/4000K/5000K
  • Multi-CCT (Selectable switch inside fixture)
  • Color Rendering Index: CRI ‰¥ 82
  • Life Span: 50,000 Hrs.

Applications

  • Ideal for a variety of industrial, commercial and residential applications.

Download PDF File

Catalog Page

Specification

Installation Instructions
