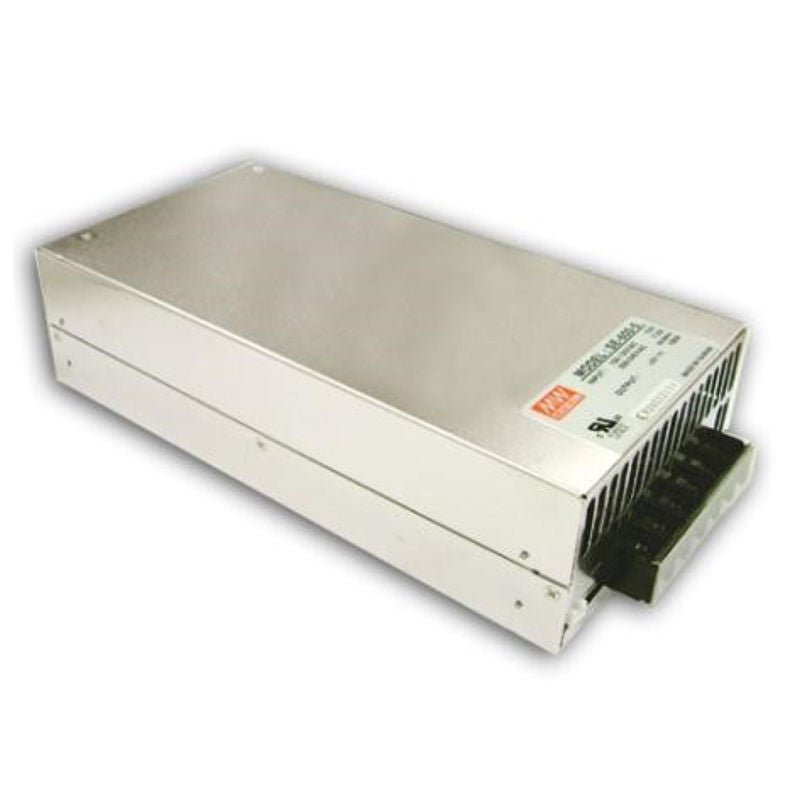

Westgate ULR-IN-HWDR-600W LED Indoor Electronic Ribbon Light Hardwire Drivers, 600W

• Output power: 600W
• Output Current: 0~25A
• Output DC Voltage: 24V
• Setup, Rise time: 1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load
• Hold up time: 20ms/230VAC 16ms/115VAC at full load
• Leakage Current: 2.0mA / 240VAC
• Efficiency: 87%
• AC input active surge current limiting
• AC input range selected by switch
• Operating temperature: -4F~140F
• Protections: Short circuit, Overload, Over voltage, Over Temperature
• Forced air cooling by built-in DC fan
• High power density 4.9w/in3
• Built-in remote sense function
• Safety Standards: UL60950-1,UL62368-1,EAC TP TC 004, BSMI CNS14336-1, KC K60950-1 approved
• Withstand Voltage: I/P-O/P:3KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
• Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Download PDF File

Specification
