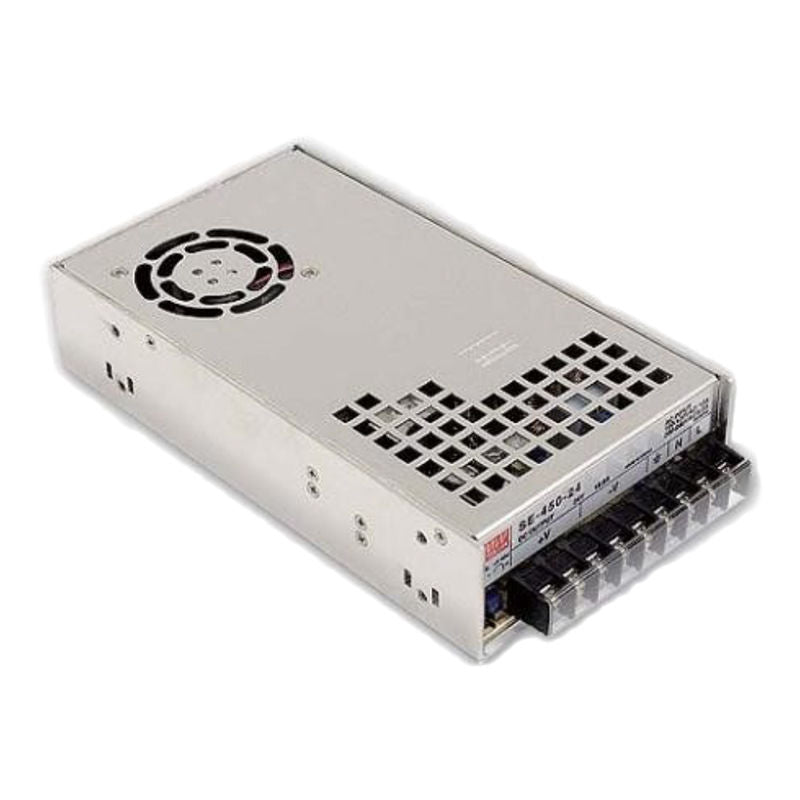

Westgate ULR-IN-HWDR-450W LED Indoor Electronic Ribbon Light Hardwire Drivers, 450W

• Output power: 450W
• Output Current: 0~18.8A
• Output DC Voltage: 24V
• Setup, Rise time: 1500ms, 50ms/230VAC 1500ms, 50ms/115VAC at full load
• Hold up time: 16ms/230VAC 12ms/115VAC at full load
• Leakage Current: 2.5mA / 240VAC
• Efficiency: 86%
• LED indicator for power on
• AC input active surge current limiting
• AC input range selected by switch
• Operating temperature: up to 158F
• Protections: Short circuit, Overload, Over voltage, Over Temperature
• Force air cooling by built-in DC ball bearing fan
• Built-in remote sense function
• Safety Standards: IEC/UL 62368-1, BSMI CNS14336-1, EAC TP TC 004,KC K60950-1 (for LRS-350-12/24 only) approved
• Withstand Voltage: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
• Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
• EMC Emission: Compliance to BSMI CNS13438, EAC TP TC 020,KC KN32 KN35
