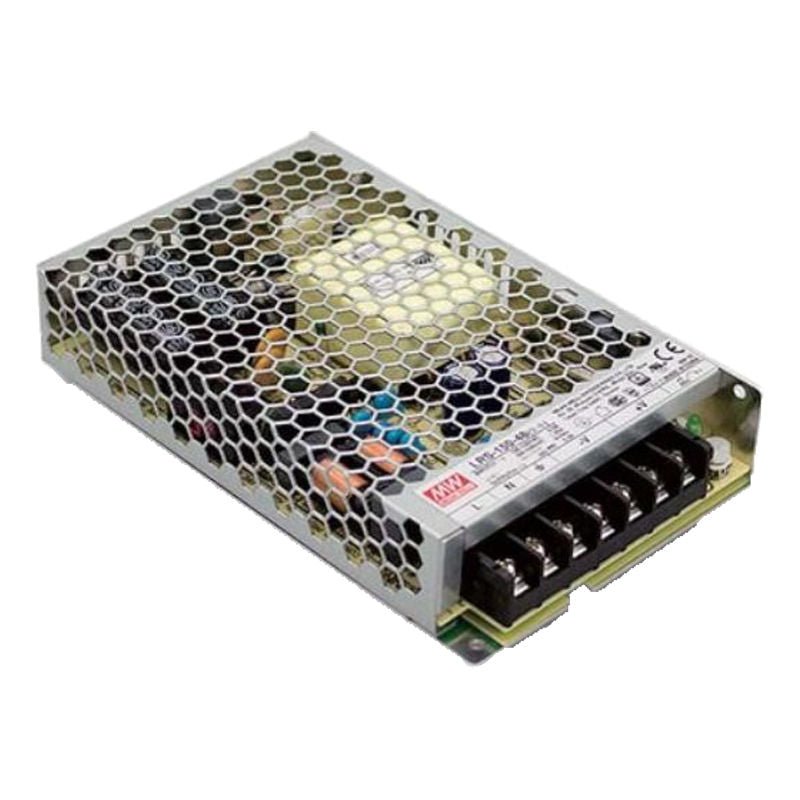

Westgate ULR-IN-HWDR-150W LED Indoor Electronic Ribbon Light Hardwire Drivers, 150W

• Output power: 150W
• Output Current: 0~6.5A
• Output DC Voltage: 24V
• Setup, Rise time: 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
• Hold up time: 40ms/230VAC 35ms/115VAC at full load
• Leakage Current: 0.75mA / 240VAC
• Efficiency: 89%
• LED indicator for power on
• No load power consumption 0.5W
• AC input range selected by switch
• Operating temperature: up to 158F
• Protections: Short circuit, Overload, Over voltage, Over Temperature
• Cooling by free air convection
• Withstand 5G vibration test
• Over voltage category III
• 100% full load burn-in-test
• Safety Standards: UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1 2 16, CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004, AS/NZS 60950.1(by CB) approved
• Withstand Voltage: I/P-O/P:4KVAC, I/P-FG:2KVAC, O/P-FG:1.25KVAC
• Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 77F / 70% RH
• EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSM
