Westgate TRM-100-4W-30K-36D-WH 1" Micro LED Track Head, 4W, 3000K, 300 Lumens, 36° Beam - White
Westgate TRM-100-4W-30K-36D-WH 1" Micro LED Track Head, 4W, 3000K, 300 Lumens, 36° Beam - White
Westgate TRM-100-4W-30K-36D-WH 1" Micro LED Track Head, 4W, 3000K, 300 Lumens, 36° Beam - White

Westgate TRM-100-4W-30K-36D-WH 1" Micro LED Track Head, 4W, 3000K, 300 Lumens, 36° Beam - White

$40.74

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

In Stock

Ships in 1–3 Business Days

Free Nationwide Shipping

View minimums →

30-Day Returns

Read Terms →

Questions?

Contact via Chat, Email or Phone

Product Details

Description

Details of the Westgate TRM-100-4W-30K-36D-WH 1" Micro LED Track Head, 4W, 3000K, 300 Lumens, 36° Beam - White Finish

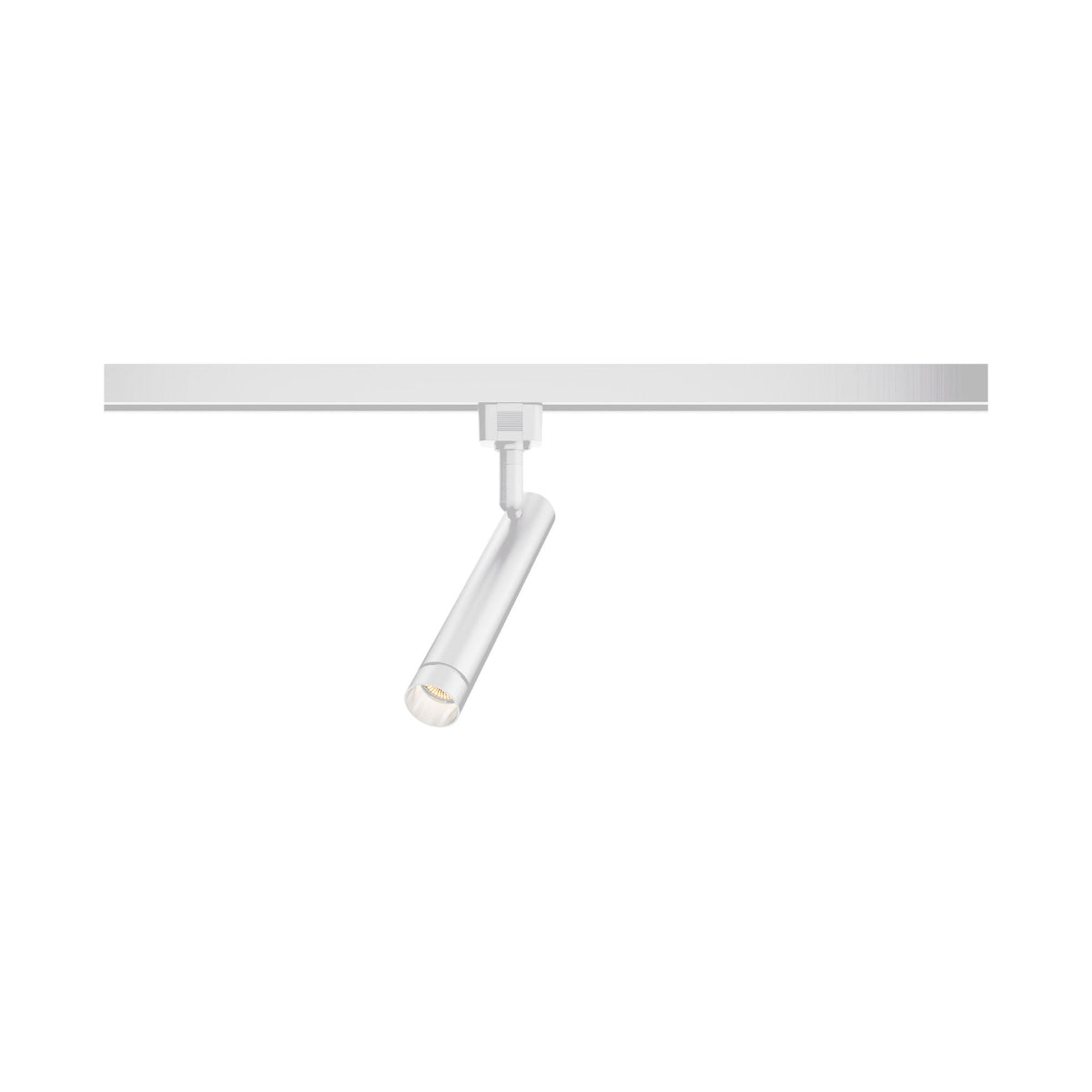

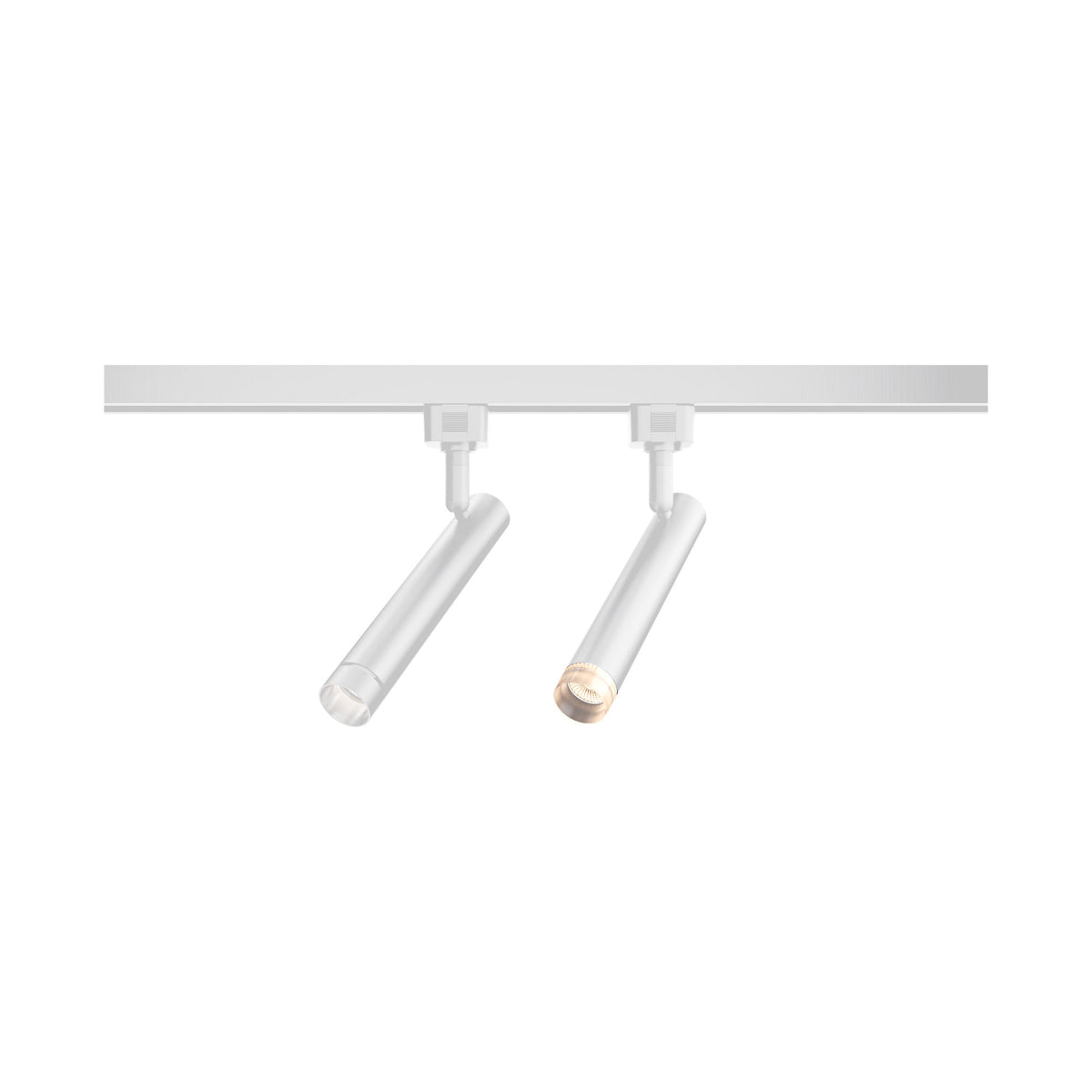

The Westgate TRM-100-4W-30K-36D-WH is an ultra-compact 1-inch cylindrical LED track head designed for precise, directional accent lighting. It delivers 300 lumens from 4W at 3000K with 90 CRI and a 36° beam angle, providing focused illumination in a discreet track-mounted design.

Featuring 350° horizontal rotation and 90° vertical aiming, this micro track head provides flexible directional adjustment. The H-type 3-wire, 1-circuit adapter is compatible with Halo H-type track systems and Westgate H-type track accessories. TRIAC/ELV dimming from 2% to 100%, a clear drop lens, reflector shroud, and white finish make it suitable for retail, display, gallery, hospitality, and residential accent lighting.

Key Features

  • 1" ultra-compact cylindrical LED track head
  • 4W input power with 300-lumen output
  • 3000K soft-white color temperature
  • 90 CRI with R9 of 50
  • 36° beam angle for focused accent lighting
  • 350° horizontal rotation
  • 90° vertical aiming
  • TRIAC / ELV dimming from 2% to 100%
  • H-type 3-wire, 1-circuit track adapter
  • Compatible with Halo H-type track systems and Westgate H-type accessories
  • Clear drop lens included
  • Reflector shroud included
  • White finish
  • IP20 rated for indoor applications
  • IK08 impact rating
  • Over-temperature and over-voltage protection
  • ETL Listed and FCC compliant
  • 5-year warranty

Technical Specifications

  • Brand: Westgate
  • Model: TRM-100-4W-30K-36D-WH
  • Series: TRM Series
  • Product Type: Micro LED Track Head
  • Voltage: 120VAC, 60Hz
  • Wattage: 4W
  • Lumens: 300 lm
  • Efficacy: 75 lm/W
  • Color Temperature: 3000K
  • CRI: 90
  • R9: 50
  • Beam Angle: 36°
  • SDCM: <3
  • Dimming: TRIAC / ELV
  • Dimming Range: 2%–100%
  • Dimming Method: CCR
  • Power Factor: >0.92
  • THD: <15%
  • Maximum Input Current: 40mA
  • Lens: Clear drop lens
  • Reflector: Reflector shroud included
  • Finish: White
  • Track Adapter: H-Type 3-wire, 1-circuit
  • Installation: Ceiling track
  • Protection: Over-temperature and over-voltage
  • Ingress Protection: IP20
  • Impact Rating: IK08
  • Operating Temperature: 14°F to 95°F (-10°C to 35°C)
  • Certifications: ETL Listed, FCC
  • Warranty: 5 Years
