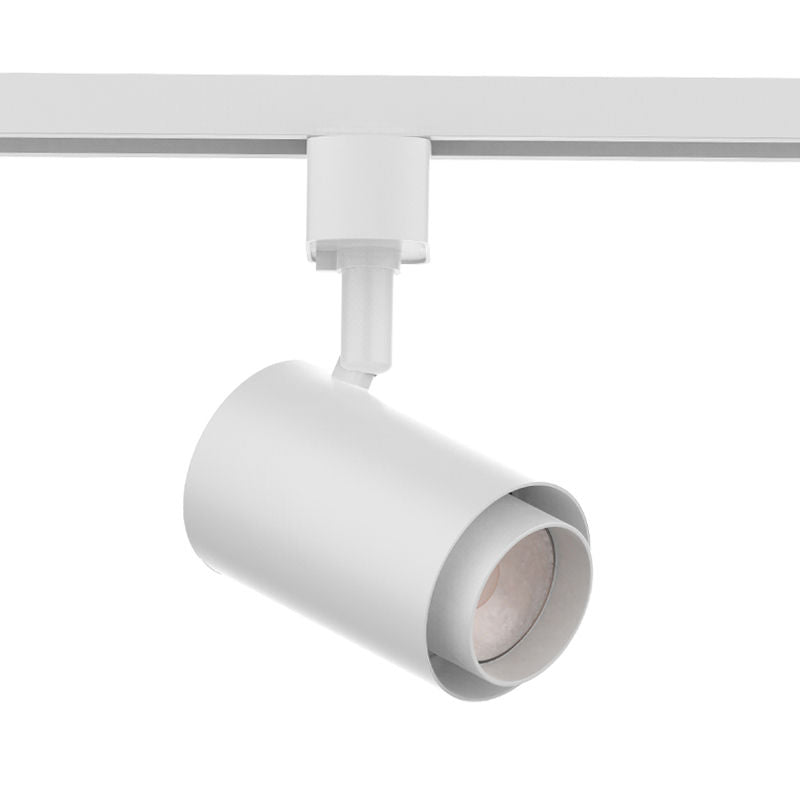

Westgate TRD - 12W - MCT5 - 36D - WH Track Heads, 12W, 27K/30K/35K/40K/50K - White - Sonic Electric
  • Brand: Westgate
  • Part #: TRD-12W-MCT5-36D-WH

Westgate TRD-12W-MCT5-36D-WH Track Heads, 12W, 27K/30K/35K/40K/50K - White

$73.74

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description

Technical Specs

  • Voltage: 120VAC 60Hz
  • Wattage: 12W
  • Power Factor: 0.95
  • Efficacy: 90 LPW
  • Die-Cast Aluminum, Powder Coated Finish
  • 90 vertical adjustment, 358 rotation
  • Lens: Clear Tempered Glass Lens Secured To Housing By Threaded Lens Cap
  • Effortlessly installed into H-Type single-circuit track
  • Maximum Weight for Each 2FT Track is 9 Lbs.
  • Maximum Load For Each 2FT Track: - 15 Amp Circuit: 1800 Watts - 20 Amp Circuit: 2400 Watts
  • Operating Temperature: -4F to 104F
  • 7-Year Warranty
  • Dimming: Triac and ELV dimmable down to 10%. Flicker-Free Dimming. For Full List Of Dimmers Refer To The Dimmer Compatibility List
  • Multi CCT (Switches Are On The Driver Box)
  • Total Lumens: 1080LM
  • Color Temperatures: 2700K/3000K/3500K/4000K/5000K
  • Color Rendering Index: CRI %80
  • Beam Angle: 36
  • Rated Life: 70,000 Hrs

Applications

  • Retail Stores: Enhance product displays with adjustable lighting that draws attention and creates a welcoming shopping experience.
  • Galleries and Museums: Showcase artwork with precision lighting that can be easily adjusted to suit different exhibits.
  • Commercial Spaces: Provide flexible lighting solutions that can adapt to changing needs and layouts.
