Westgate TGL-2X4-MCTP LED T-Bar Grid Panel Light - White

WestgateSKU: TGL-2X4-MCTP

Price:
Sale price$104.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Extruded Aluminum with White Finish
  • High quality LED chips provide high efficiency, heat dissipation, stability and lumen maintenance
  • Performance lens assembly delivers unique beam angles and reduces glare

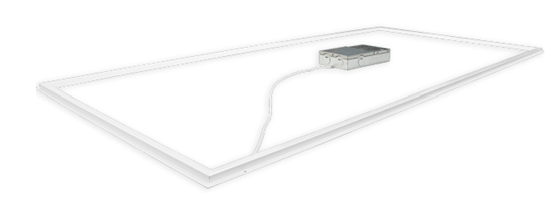

  • Driver/Junction box is separate and connects to the fixture with a 3Ft. Dongle.
  • Driver/Junction box installs on the adjacent grid, on top, using your choice of T-Bar bracket or Westgate T-Bar bracket model (ELB-TBAR1)
  • Driver disconnect provided where required to comply with US and Canadian codes
  • Surge protector
  • Multi-Color temperature & Multi-Power (Selectable switch in driver box)
  • Dimmable: 0 ~ 10V Driver for continuous dimming
  • Lumens: 4050LM/5250LM/6000LM/6750LM/8100LM
  • Wattage: 27W/35W/40W/45W/54W
  • Voltage: 120-277V
  • Efficacy: 150LPW
  • Power Factor: >0.92
  • Maximum Ambient Temperature: -22F to 104F
  • Color Rendering Index: CRI ‰¥ 80
  • Color Temp: 3000K/4000K/5000K
  • Lifespan: 50,000 hours
  • 5-year warranty
  • IP Rating: IP20 Indoor use only

Applications

  • Suitable for retail, schools, offices, healthcare, conference rooms, hospitality, corridors, reception areas, foyers library.

Download PDF File

Catalog Page

Specification

Installation Instructions
