Description
Technical Specs
- Extruded Aluminum with White Finish
- High quality LED chips provide high efficiency, heat dissipation, stability and lumen maintenance
- Performance lens assembly delivers unique beam angles and reduces glare

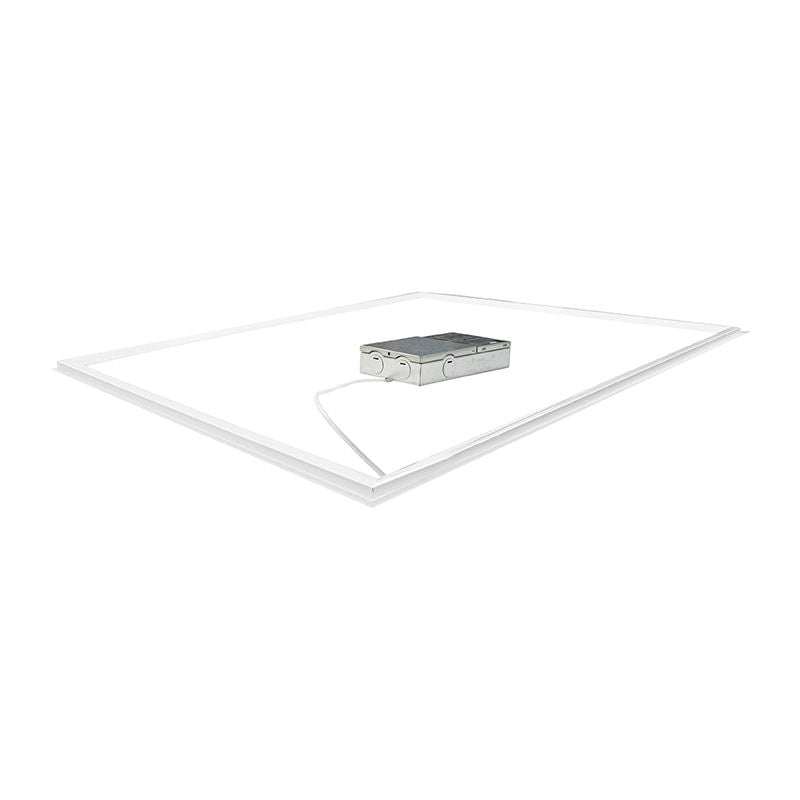

- Driver/Junction box is separate and connects to the fixture with a 3Ft. Dongle.
- Driver/Junction box installs on the adjacent grid, on top, using your choice of T-Bar bracket or Westgate T-Bar bracket model (ELB-TBAR1)
- Driver disconnect provided where required to comply with US and Canadian codes
- Surge protector
- Multi-Color temperature Multi-Power (Selectable switch in driver box)
- Dimmable: 0 ~ 10V Driver for continuous dimming
- Lumens: 4050LM/5250LM/6000LM/6750LM/8100LM
- Wattage: 27W/35W/40W/45W/54W
- Voltage: 120-277V
- Efficacy: 150LPW
- Power Factor: 0.92
- Maximum Ambient Temperature: -22F to 104F
- Color Rendering Index: CRI 80
- Color Temp: 3000K/4000K/5000K
- Lifespan: 50,000 hours
- 5-year warranty
- IP Rating: IP20 Indoor use only
Applications
- Suitable for retail, schools, offices, healthcare, conference rooms, hospitality, corridors, reception areas, foyers library.
Download PDF File
Catalog Page
Specification
Installation Instructions
