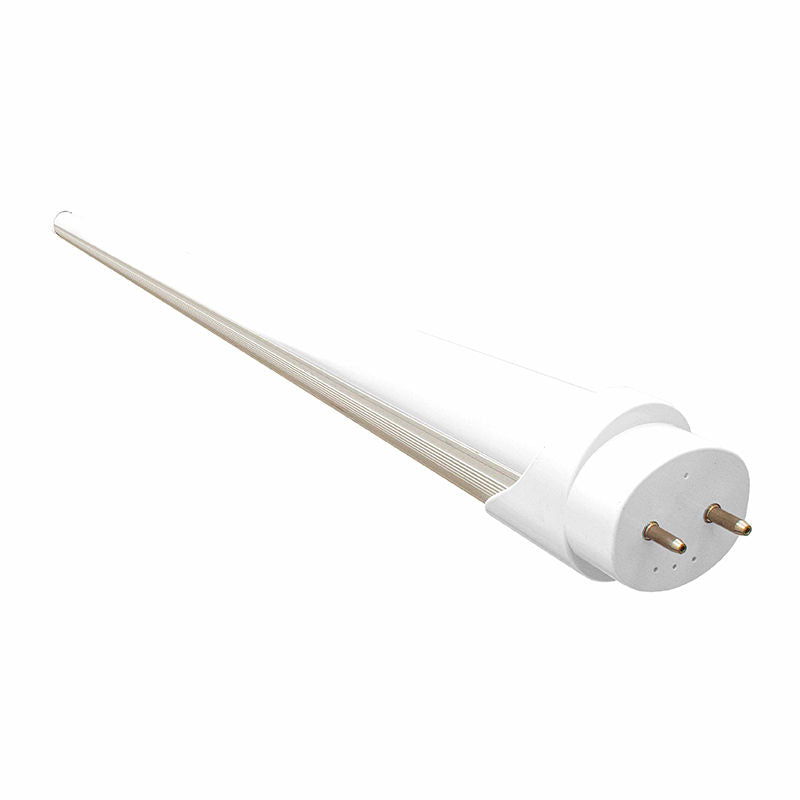

Westgate T8-EZX-PRO-4FT-18W-40K-F LED Aluminum/Plastic Tube Lamp

WestgateSKU: T8-EZX-PRO-4FT-18W-40K-F

Price:
Sale price$11.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Aluminum Housing & Clear PC Lens
  • Type A + B (Dual UL)
  • Type A: with Existing Ballast - UL No. E366061
  • Type B: Ballast Override (AC Direct), Connect One End of Both Ends (Dual Function) - UL No. E342884
  • MCT: the switch is on the end of the lamp
  • Compatible with fluorescent emergency ballast, fluorescent dimming ballast and 90% of electronic ballasts.
  • Shatterproof
  • No mercury and virtually no UV emission
  • Lumens: 2340LM
  • Wattage: 18W
  • Voltage: 120-277V, 50/60Hz AC
  • Efficacy: 130LPW
  • Beam Angle: 120
  • Power Factor: >0.90
  • Ambient Operating Temperature: -13F to 113F
  • THD: 20%
  • Color Rendering Index: CRI ‰¥ 80
  • Color Temp: 4000K
  • Lifespan: 50,000 hours
  • 5-year warranty
  • IP Rating: IP20 (Indoor)

  Applications

  • Aluminum T8 tube lamps switch from fluorescent tubes to LED, giving more cost efficiency by providing the same lumen output with less energy consumption. The LED tube offers a soft and bright light distribution.

Download PDF File

Catalog Page

Specification

Installation Instructions
