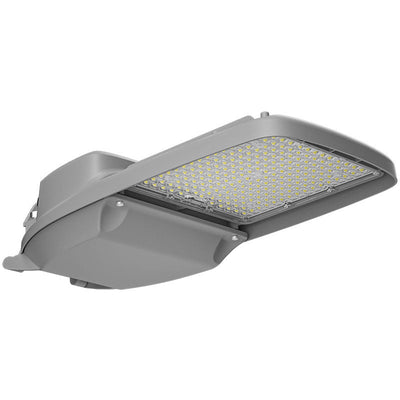

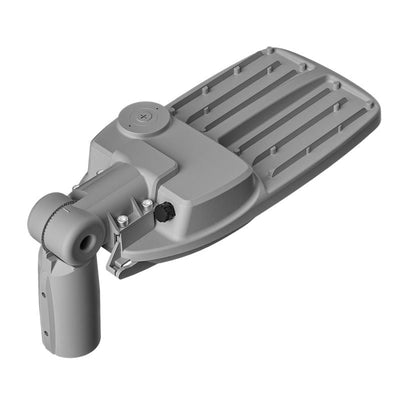

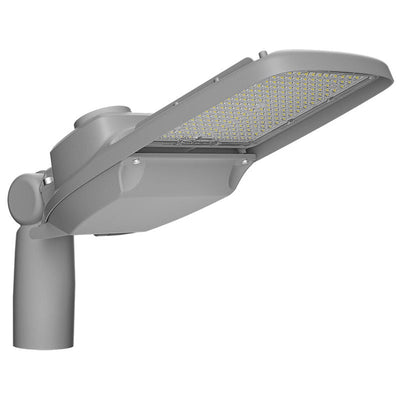

Westgate STL4-30-100W-50K LED Street/Roadway Light with NEMA Twist-Lock Photocell Socket - Light Grey

WestgateSKU: STL4-30-100W-50K

Price:
Sale price$285.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277V; 60Hz / 480V; 60Hz
  • Power Factor: >0.95
  • Wattage: 15W/20W/30W/50W/80W/100W/150W/200W
  • Efficacy: 140LM/W
  • Die-cast Aluminum with Powder Coat Finish (Light Grey)
  • Cord Type: 40" SJTW 18/3 AWG Cable
  • With 2-15/16" Diameter Pole Entry with Adapter Bracket Inside for Smaller Pole Diameters
  • Maximum Ambient Temperature: 104F
  • IP Rating: IP65, Suitable for Wet Location
  • 7-Year Warranty
  • MP: Multi-Power Switch is Located on the Back of the Fixture
  • Lens Type: Optical TYPE III Lens, High Light Transmittance PC, Anti-UV and Flame Resistant
  • Dimming: 0-10 Dimming
  • Driver Located in Isolated Compartment for Improved Thermal Management
  • Total Lumens: 7250LM/14500LM/21000LM/28000LM/14000LM/28000LM
  • Color Temperatures: 3000K/5000K
  • Color Rendering Index: CRI ‰¥ 70
  • Rated Life: 70,000 hrs

Applications

  • Ideal for general site lighting, streets, roadway, alleys, loading docks, doorways, pathways and parking areas
