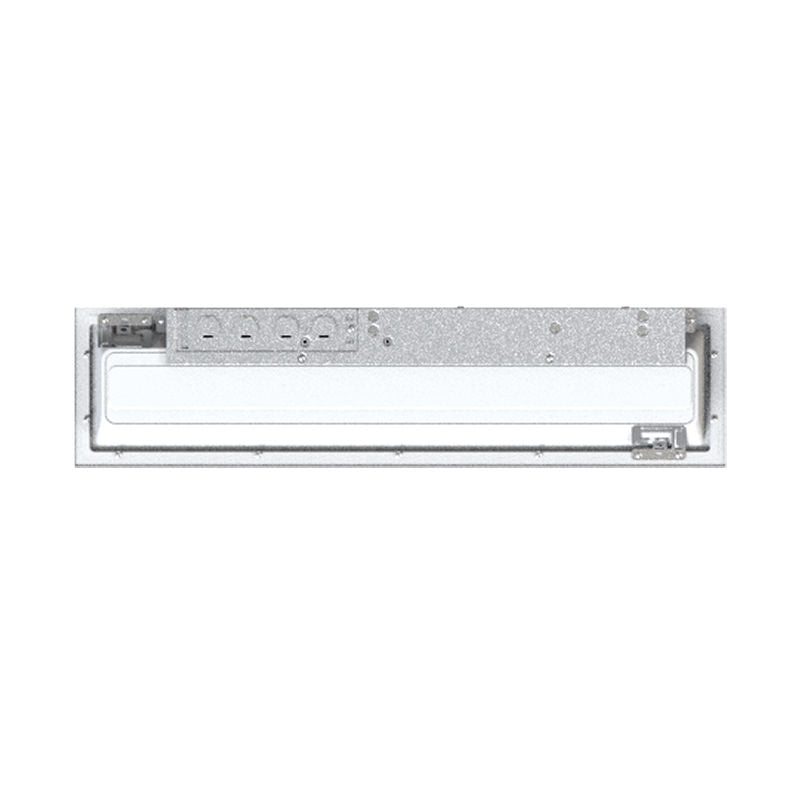

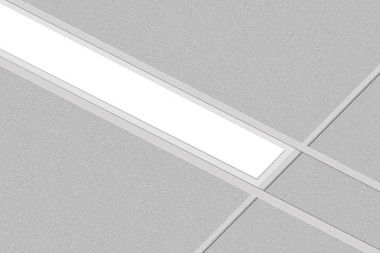

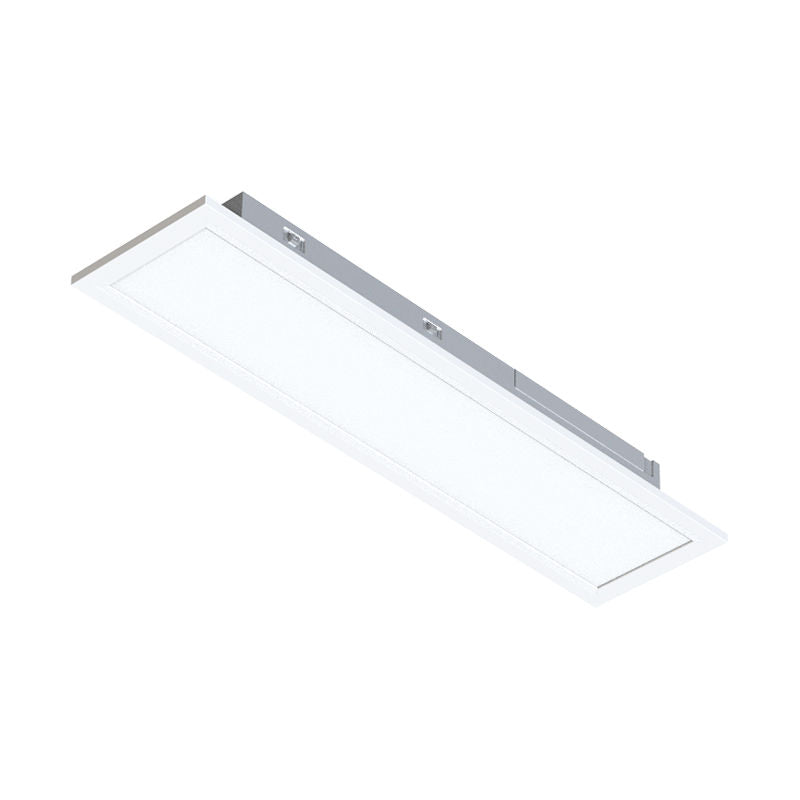

Westgate SRL6-2FT-MCTP 6" Wide Slot Recessed Commercial Linear Light - White

WestgateSKU: SRL6-2FT-MCTP

Price:
Sale price$56.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: AC120V-277V 50/60Hz
  • Power Factor: >0.90
  • Wattage: 10W/15W/20W
  • Efficacy: 110 LPW
  • Fixture Operating Voltage: 36VDC
  • Rated Input Current (mA): 337/ 253/ 168mA
  • Total Harmonic Distortion: ‰¤ 20 %
  • White Finish
  • Earthquake Hooks and Suspension Hooks pre-installed
  • External driver mounted on top
  • Operating Temperature: -68ºF~104ºF
  • Surge Protector: 1KV, 2.5KV
  • 5-Year Warranty
  • Dimmable: 0~10V Dimming
  • Total Lumens: 2200LM Max.
  • Color Temperatures: 3500K/4000K/5000K
  • Multi CCT & Multi Power (Selectable Switch On Back Of Fixture)
  • Color Rendering Index: CRI ‰¥ 80
  • Beam Angle: 110
  • Rated Life: 50,000 hrs

Applications

  • Ideal for hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, education facilities and more.

Download PDF File

Catalog Page

Specification

Installation Instructions
