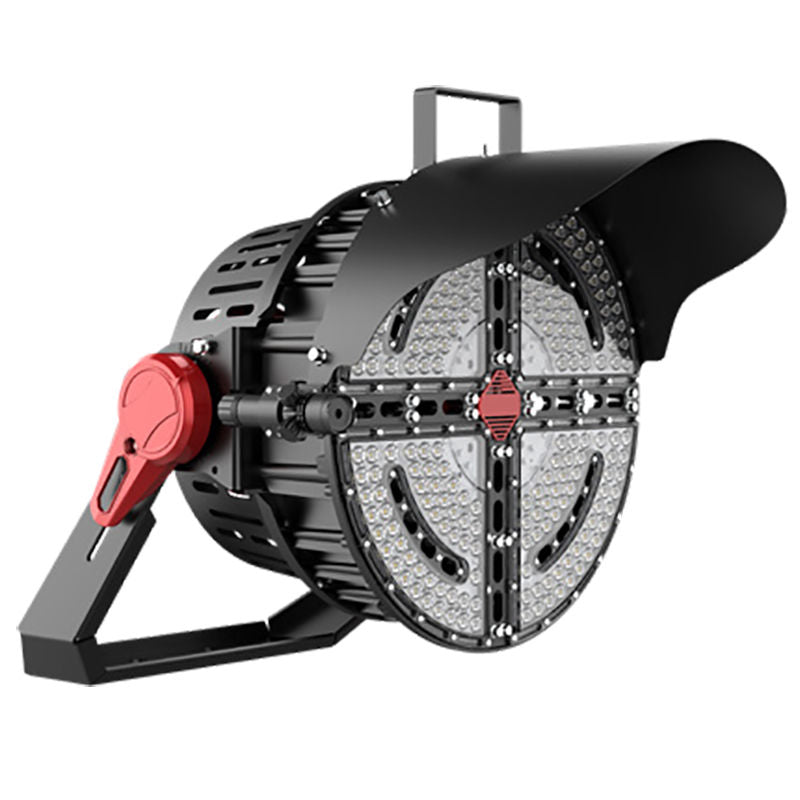

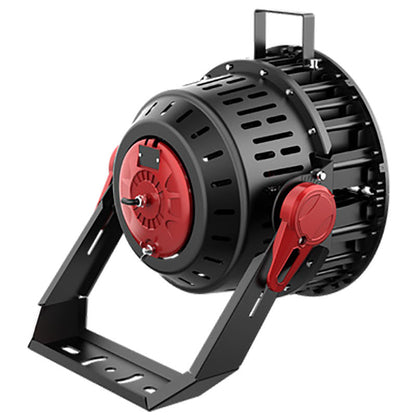

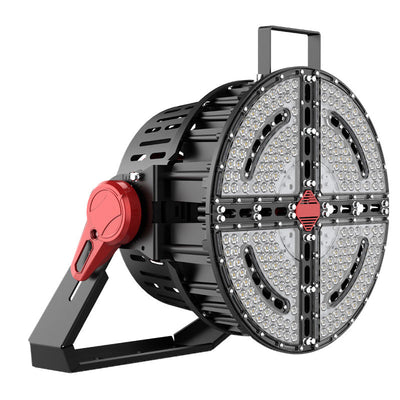

Westgate SFX-G9-500W-45D-RGB RGB LED Stadium Flood Light - Black

WestgateSKU: SFX-G9-500W-45D-RGB

Price:
Sale price$4,362.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277V AC 60Hz
  • Wattage: 500W-600W
  • Power Factor: >0.90~0.97
  • Efficacy: 150LPW
  • Die-Cast Aluminum Housing with Powder Coat Finish (Black)
  • In a DMX lighting setup, lights need to be connected with cables. The cables can be "daisy chained" so that each light can plug into the one before it instead of all lights plugging into the DMX board itself.
  • Cord Type: 3' SJTW 18/3 AWG Cable
  • Effective Projected Area (EPA): 1.8 (sq. ft.)
  • Operating Temperature: -40F to 122F
  • IP Rating: IP66, Suitable for Wet Locations
  • 7-Year Warranty
  • Lens: Prismatic Polycarbonate Lens
  • LED: Lumileds Luxeon SMD 3535
  • Total Lumens: 75000LM-120000LM
  • Color Temperatures: RGB
  • Color Rendering Index: CRI ‰¥ 70
  • Rated Life: 70,000 Hrs
  • Beam Angle: 45

Applications

  • Stadium lighting, sports fields, parking lots, docks, railways, container yards, architectural lighting, industrial and commercial exterior lighting, trade shows, and exhibitions.

Download PDF File

Catalog Page

Specification

Installation Instructions
