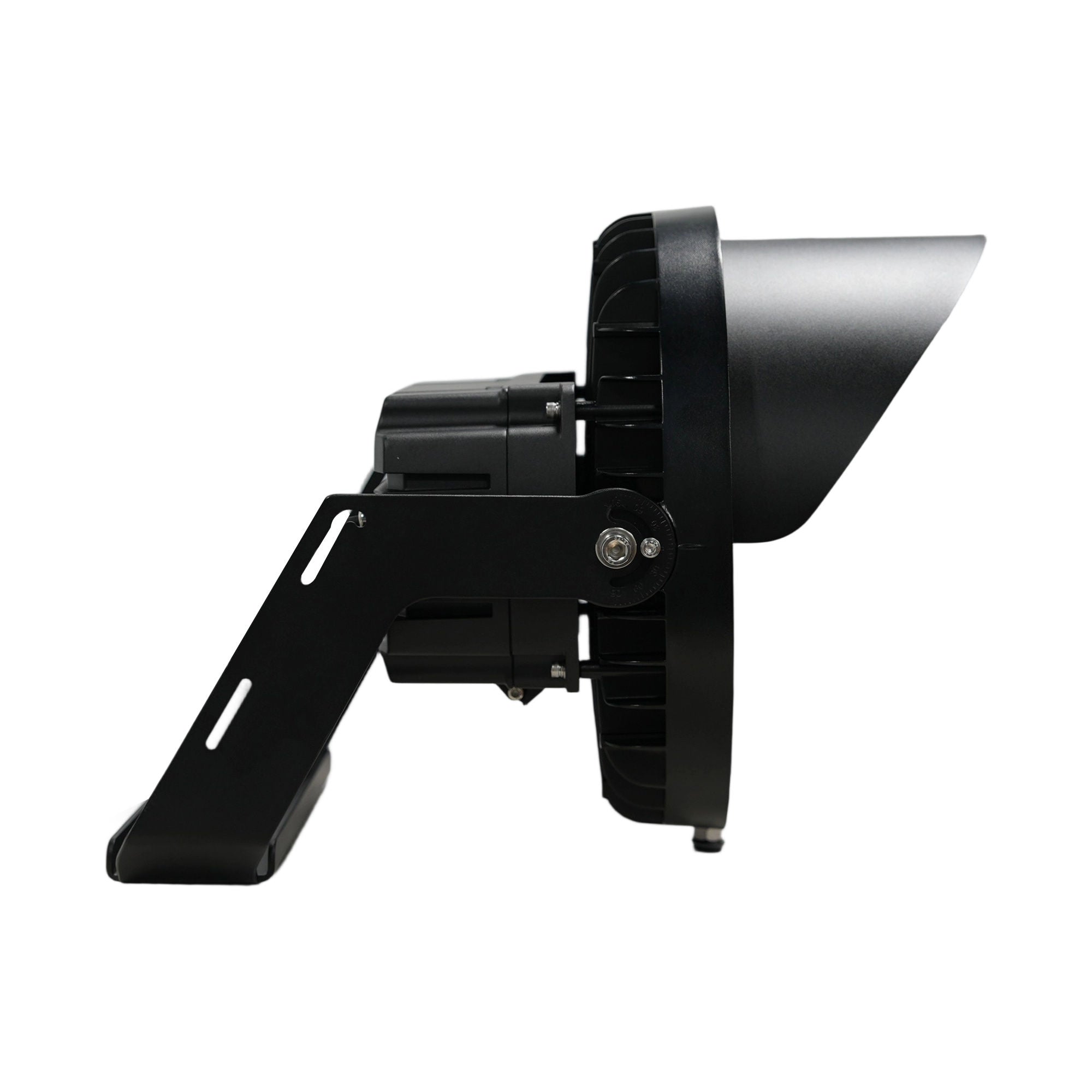

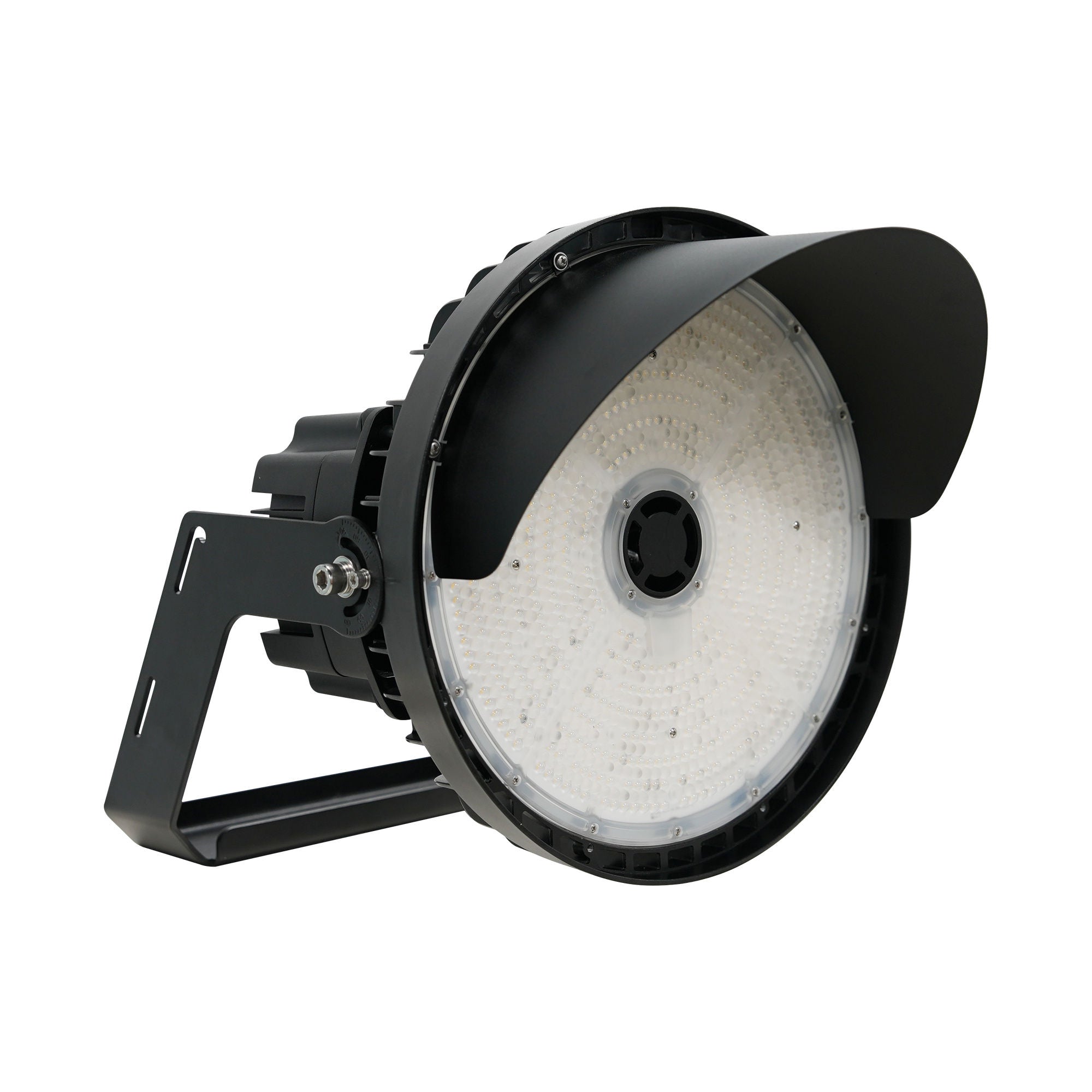

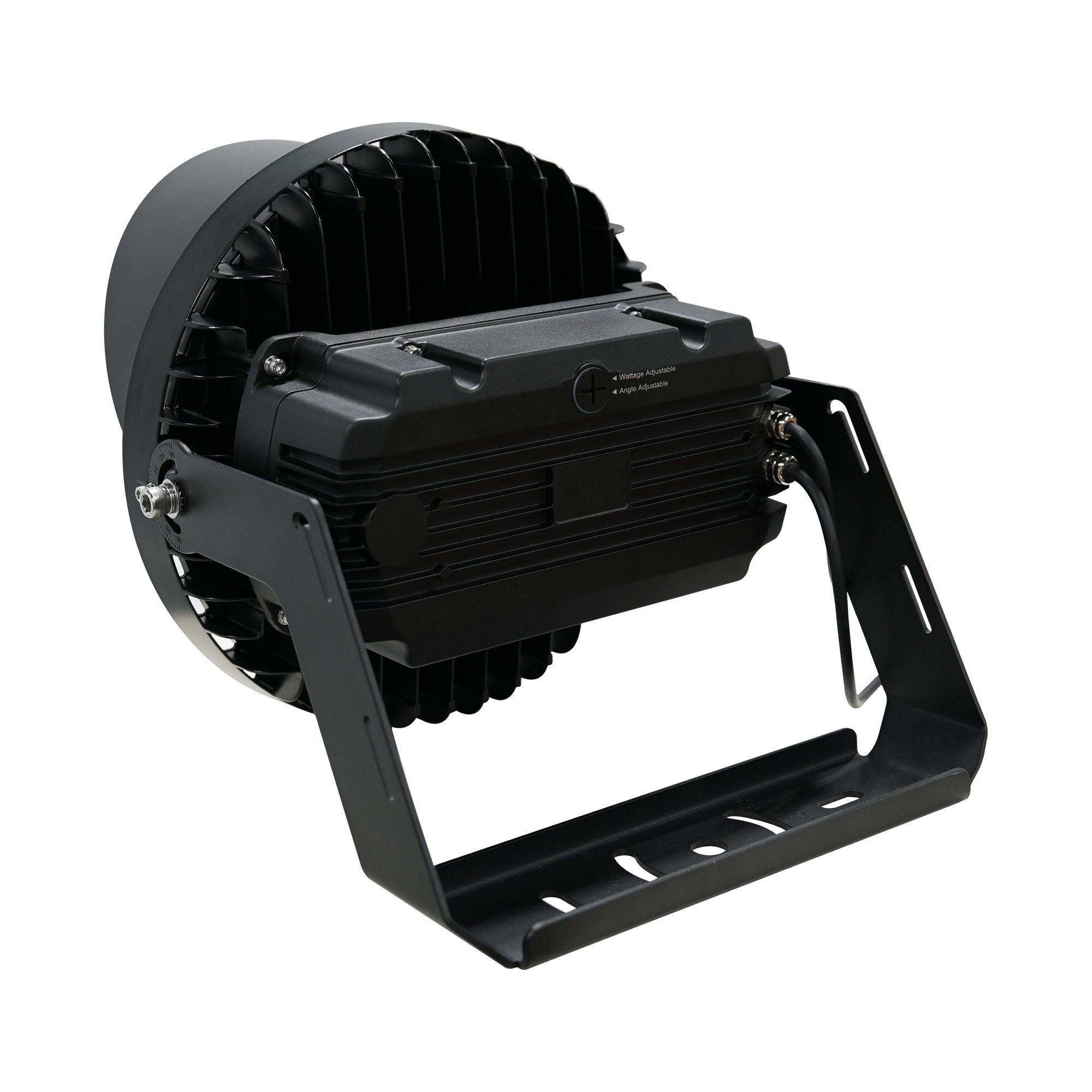

Details of the Westgate SFX-G12AD-300-500W-50K-480V G12 Adjustable Distribution Angle Stadium Light 100-277V - Black

The SFX-G12AD-300-500W-50K-480V is the standard voltage option of the G12 Adjustable Distribution Angle Stadium Light series, operating at 100-277VAC for broad electrical compatibility. Selectable 300W, 400W, or 500W power and adjustable 30-degree, 40-degree, 50-degree, and 60-degree beam distribution make it adaptable to different mounting heights and field layouts without optic changes. The integral sensor receptacle and 0-10V dimming provide control flexibility, and the IP66-rated die-cast aluminum housing with Lumileds SMD2835 LEDs delivers durable high-output performance for stadiums, gymnasiums, plazas, high-mast lighting, airports, shipyards, and wharf applications.

Technical Specs

• Power Selectable: 300W / 400W / 500W

• Wattage Adjustable: 25% to 100%

• Input Voltage: 200-480VAC, 50/60Hz

• Dimming: 0-10V

• Dimension: w-14.4 in x d-16.4 in x h-16.1 in
• Power Factor: ≥0.9

• THD: ≤20%

• Flicker: <5%

• Driver Surge Protection: 6kV, L/N-PE and L-N

• Optional Surge Protection: 10kV / 20kV

• Integral Sensor Receptacle

• Optional Zhaga Receptacle

• Operating Temperature: -40-degree F to 122-degree F

• Color Temperature: 5000K

• Total Lumens: 46,500 / 62,000 / 77,500 LM

• Efficacy: 155 LM/W

• Adjustable Beam Angle: 30-degree / 40-degree / 50-degree / 60-degree

• Beam Performance: 150 LM/W at 30-degree, 170 LM/W at 40-degree, 165 LM/W at
• 50-degree, 155 LM/W at 60-degree

• CRI: >70

• LED Source: Lumileds SMD2835

• LED Quantity: 1,200 pcs

• BUG Rating: B5-U0-G5

• Distribution: NEMA 4 Standard (Optional NEMA 5)

• Optical Lens: PC

• Housing: Die-Cast Aluminum

• Finish: Black

• IP Rating: IP66, Wet Location

• Adjustable Mounting Bracket

• Fixture Size: 16.1-inch L x 16.4-inch W x 14.4-inch D
