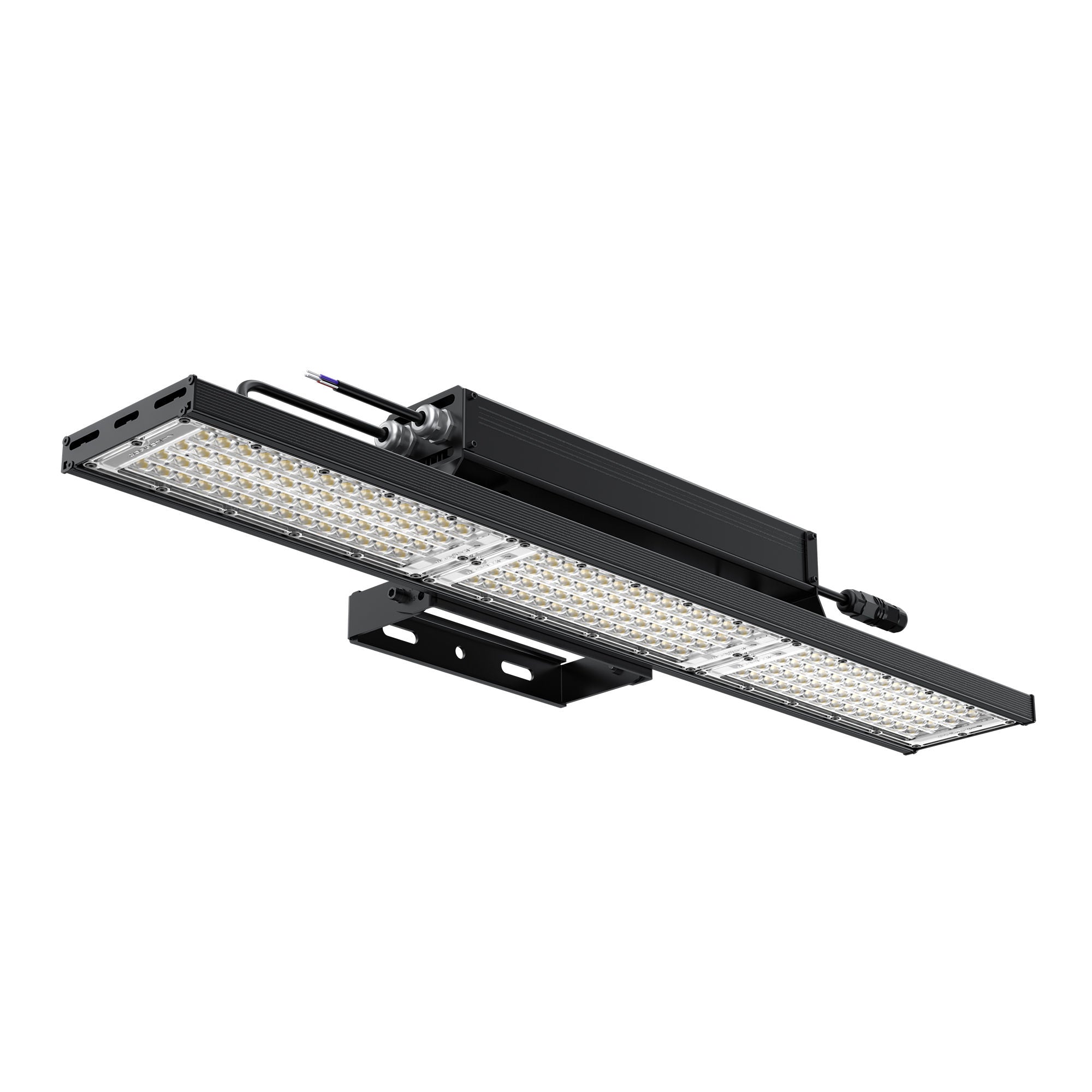

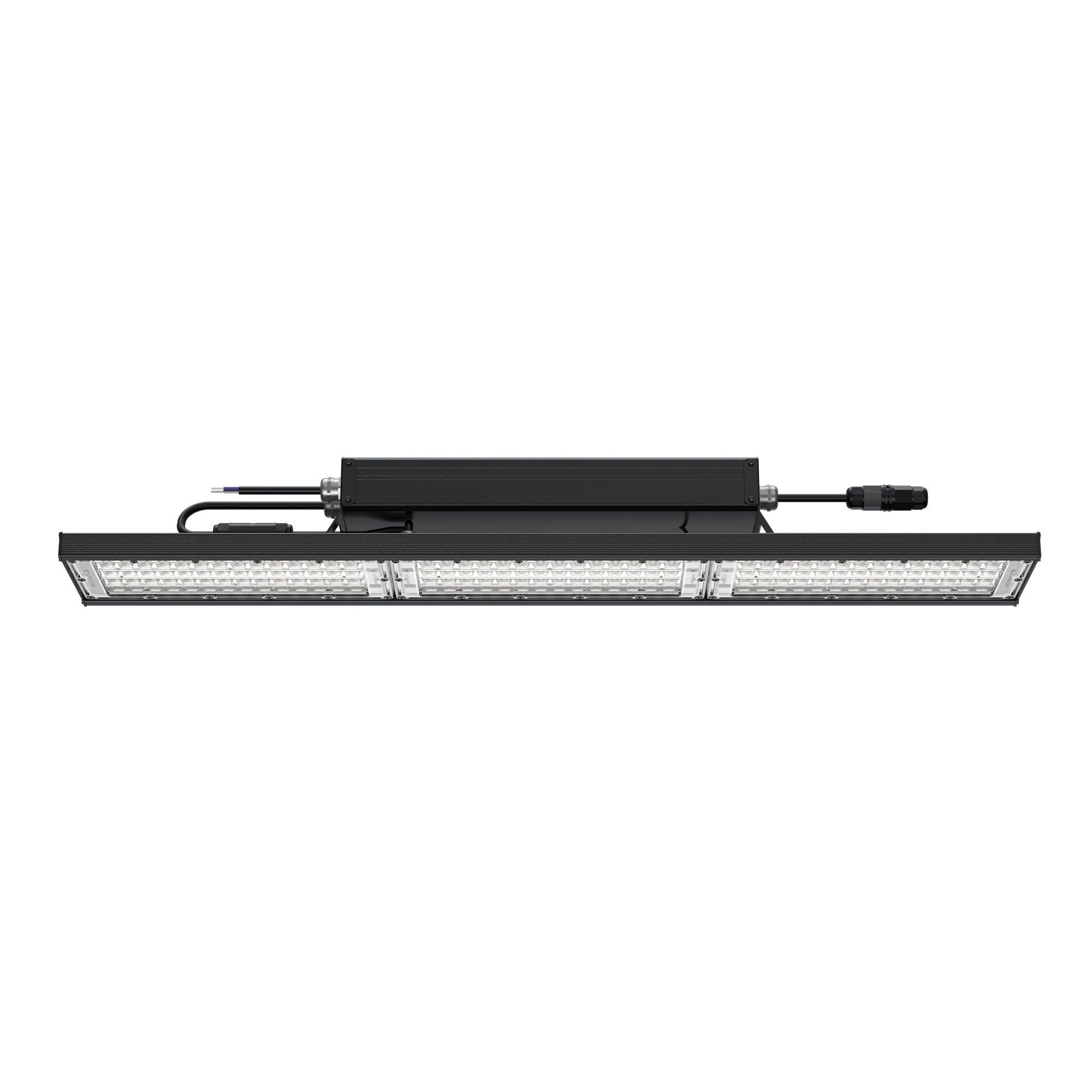

Westgate SFP-320W-50K LED Pickleball Court Light, 320W, CCT-5000K, 120-277VAC - Black Finish

Details of the Westgate SFP-320W-50K LED Pickleball Court Light, 320W, CCT-5000K, 120-277VAC - Black Finish

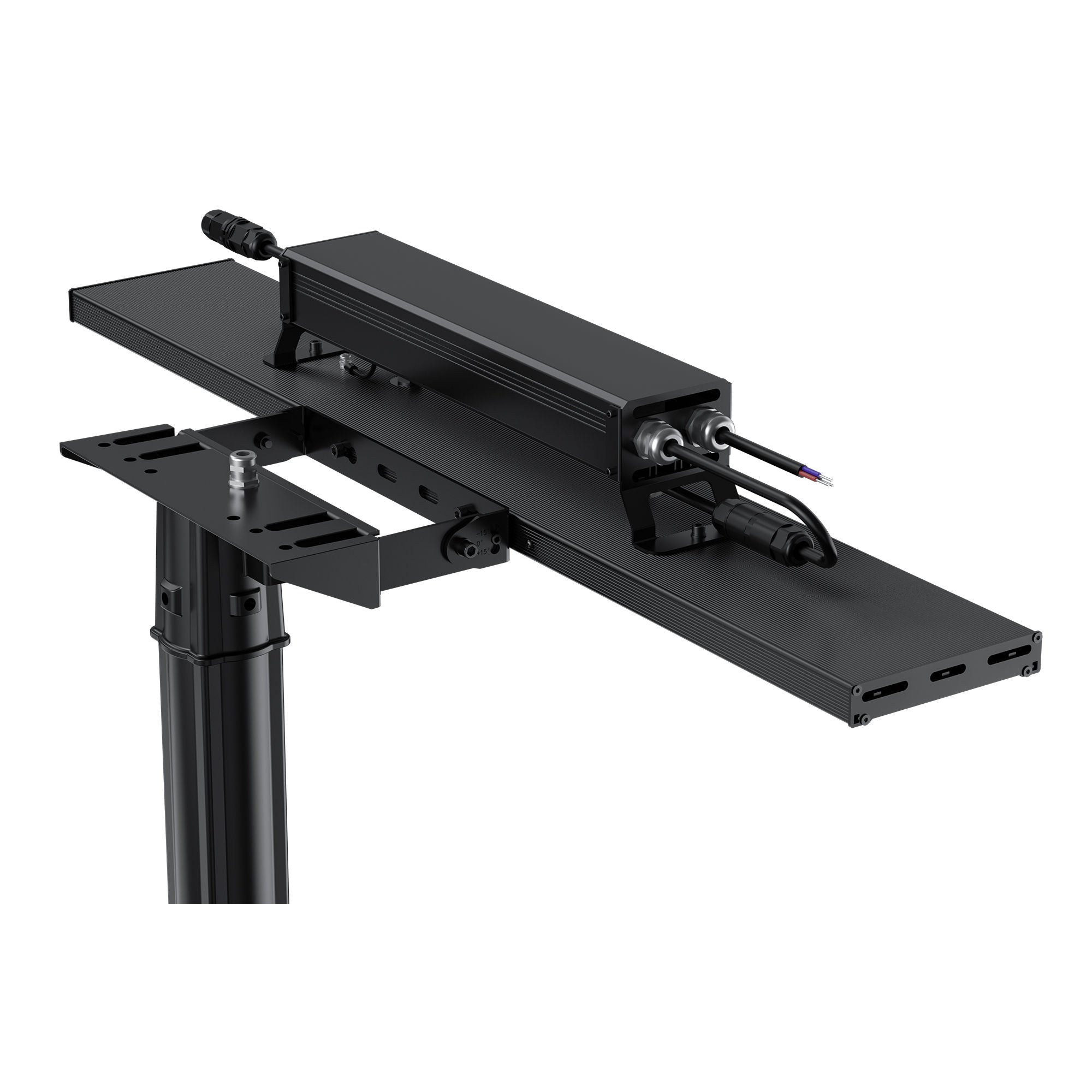

The SFP-320W-50K is a 320W high-output LED sports light engineered for pickleball and padel courts requiring strong, uniform illumination for higher-level play. Its asymmetrical 38° optics and wide luminous surface deliver consistent, glare-controlled lighting ideal for competitive and recreational use. Well suited for outdoor pickleball courts, sports complexes, parks, schools, community centers, and recreational facilities requiring reliable nighttime performance. Supports 50Fc court lighting layouts at 28 ft mounting height. Pre-engineered photometric layouts and obtrusive light compliance reports are available upon request. Yoke mount included for adjustable aiming, with an optional SFP-SF slip-fitter adapter for pole-mounted installations. Backed by a 7-year warranty.

SPECIFICATIONS:

• Wattage: 320W (±5%)

• Input Voltage: 120-277VAC, 50/60Hz

• Driver Type: Constant current

• Dimming: 0-10V

• Power Factor: >0.9

• THD: <10% at 120V

• Flicker Factor: <2%

• Surge Protection: L-N: 6KV, L/N-E: 6KV

• Electrical Class: Class I

• Operating Temperature: -22°F to +113°F

• Housing Material: Aluminum alloy

• Housing Finish: Black, RAL9017

• Finish Treatment: Special surface treatment with powder coating

• Optic Material: Polycarbonate

• Mounting Bracket Material: ZAM

• Yoke mount included

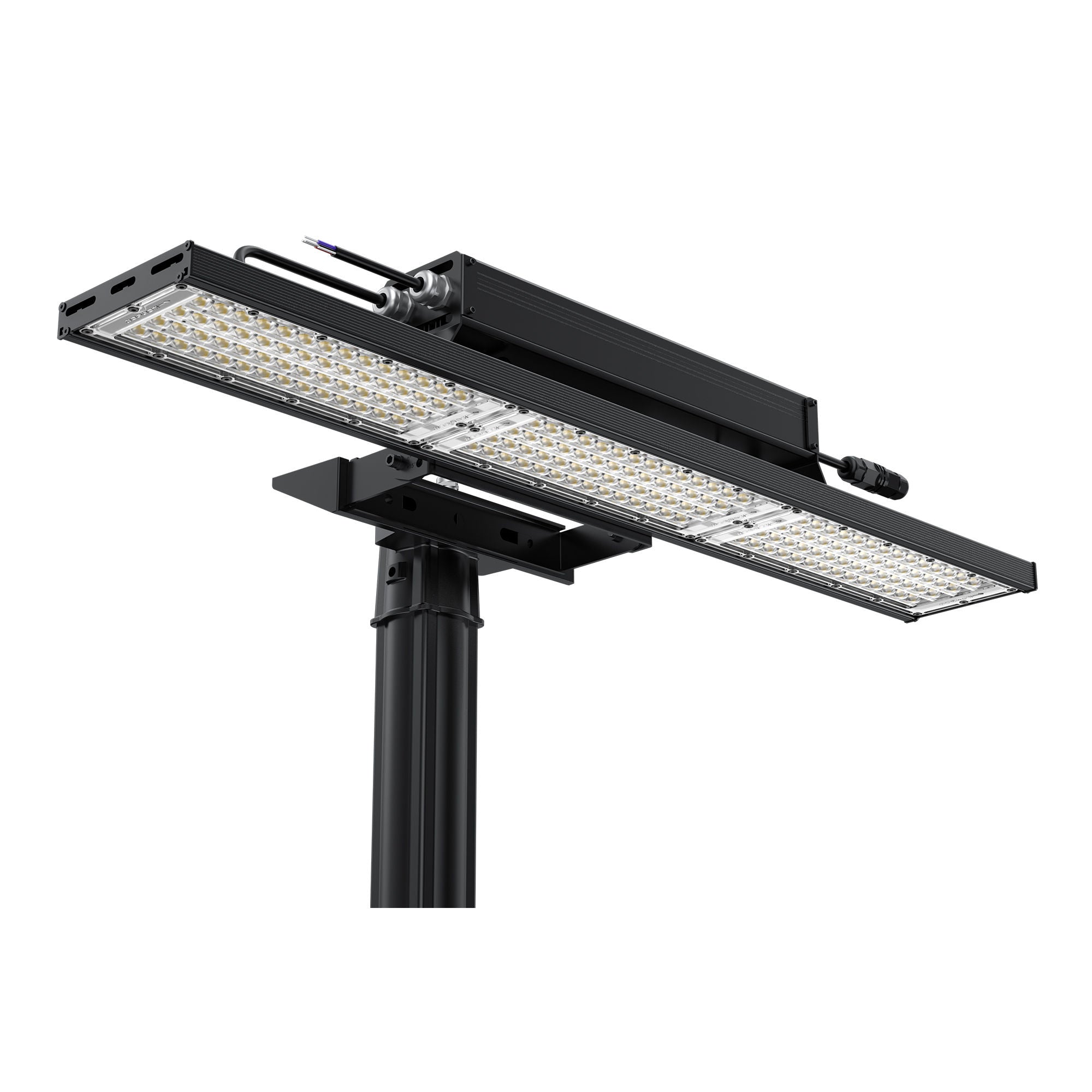

• Optional Slip-Fitter Pole Adapter: SFP-SF (standard 2-3/8" OD round pole tenon)

• Fixture Dimensions: 36.57" L x 9.76" W x 5.00" H

• Luminaire Weight: 10.47 lbs

• Mounting Bracket Weight: 1.54 lbs

• Windage Area: 1.404 sq. ft. at 0°, 1.680 sq. ft. at 15°

• Ingress Protection: IP66

• Impact Resistance: IK10

• Corrosion Category: C5, ISO 9223:2012

• Passed 1500-hour salt spray test

• Delivered Lumens: 57,135 LM

• Efficacy: 178 LM/W

• CCT: 5000K

• CRI: Ra70
