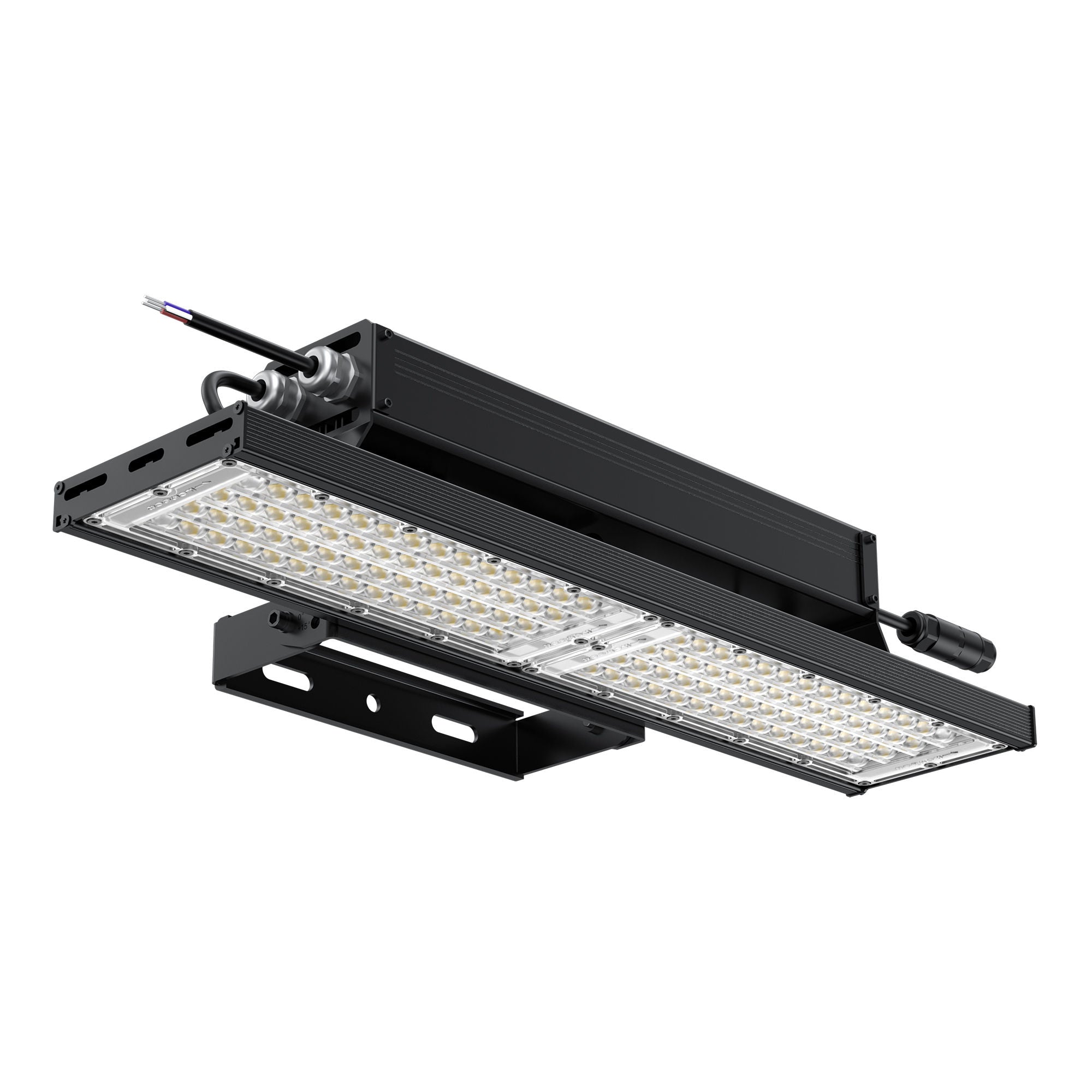

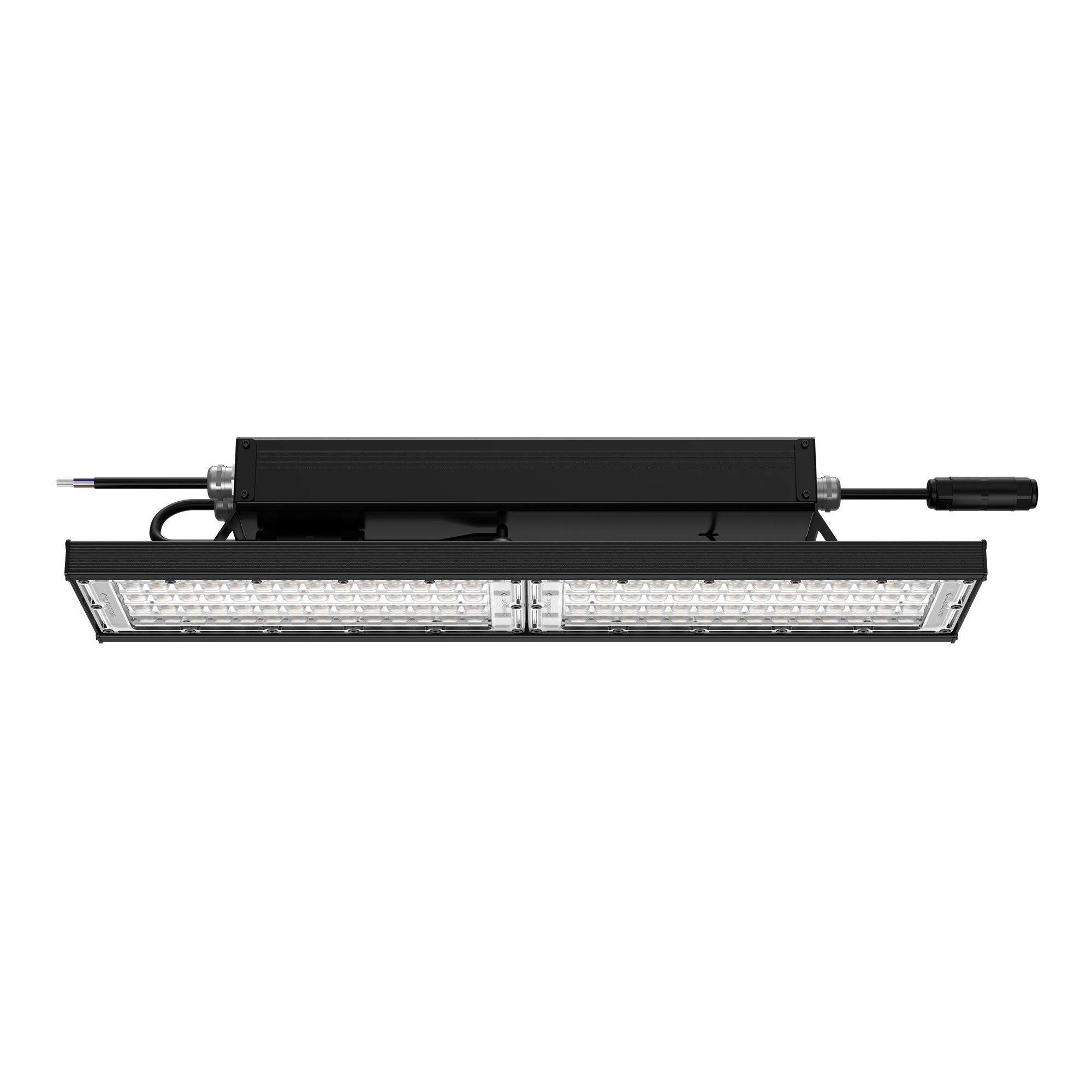

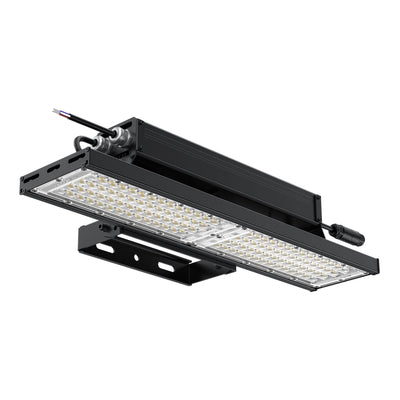

Westgate SFP-240W-50K LED Pickleball Court Light, 240W, CCT-5000K, 120-277VAC - Black Finish

Details of the Westgate SFP-240W-50K LED Pickleball Court Light, 240W, CCT-5000K, 120-277VAC - Black Finish

The SFP-240W-50K is a 240W precision LED sports light designed specifically for outdoor and indoor pickleball and padel court illumination. Its asymmetrical 38° optics and wide luminous surface deliver uniform, glare-controlled lighting ideal for recreational and competitive play. Well suited for outdoor pickleball courts, sports complexes, parks, schools, community centers, and recreational facilities requiring reliable nighttime performance. Supports 30Fc court lighting layouts at 28 ft mounting height. Pre-engineered photometric layouts and obtrusive light compliance reports are available upon request. Yoke mount included for adjustable aiming, with an optional SFP-SF slip-fitter adapter for pole-mounted installations. Backed by a 7-year warranty.

SPECIFICATIONS:

• Wattage: 240W (±5%)

• Input Voltage: 120-277VAC, 50/60Hz

• Driver Type: Constant current

• Dimming: 0-10V

• Power Factor: >0.9

• THD: <10% at 120V

• Flicker Factor: <2%

• Surge Protection: L-N: 6KV, L/N-E: 6KV

• Electrical Class: Class I

• Operating Temperature: -22°F to +113°F

• Housing Material: Aluminum alloy

• Housing Finish: Black, RAL9017

• Finish Treatment: Special surface treatment with powder coating

• Optic Material: Polycarbonate

• Mounting Bracket Material: ZAM

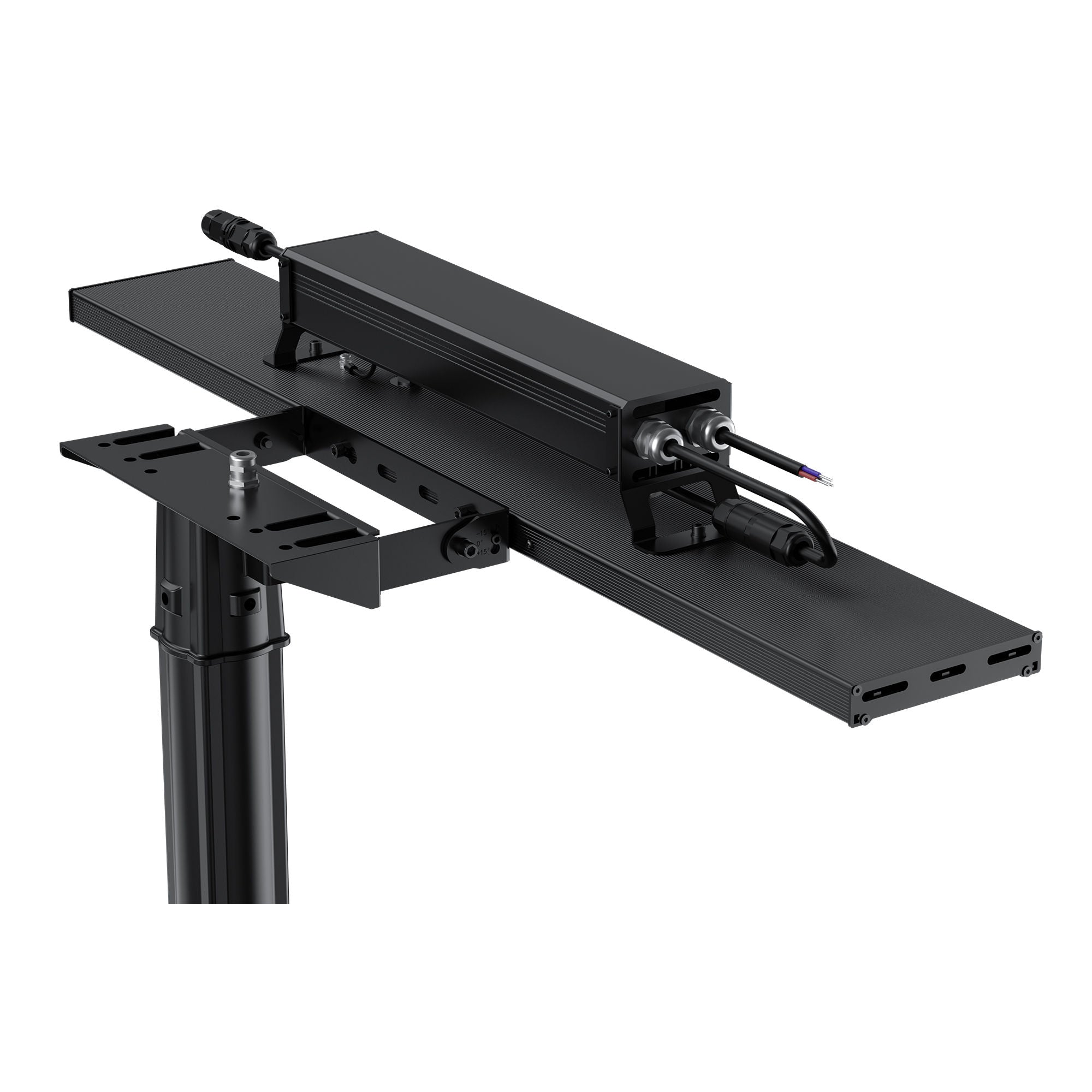

• Yoke mount included

• Optional Slip-Fitter Pole Adapter: SFP-SF (standard 2-3/8" OD round pole tenon)

• Fixture Dimensions: 24.45" L x 9.76" W x 5.00" H

• Luminaire Weight: 8.16 lbs

• Mounting Bracket Weight: 1.54 lbs

• Windage Area: 0.938 sq. ft. at 0°, 1.123 sq. ft. at 15°

• Ingress Protection: IP66

• Impact Resistance: IK10

• Corrosion Category: C5, ISO 9223:2012

• Passed 1500-hour salt spray test

• Delivered Lumens: 41,594 LM

• Efficacy: 173 LM/W

• CCT: 5000K

• CRI: Ra70
