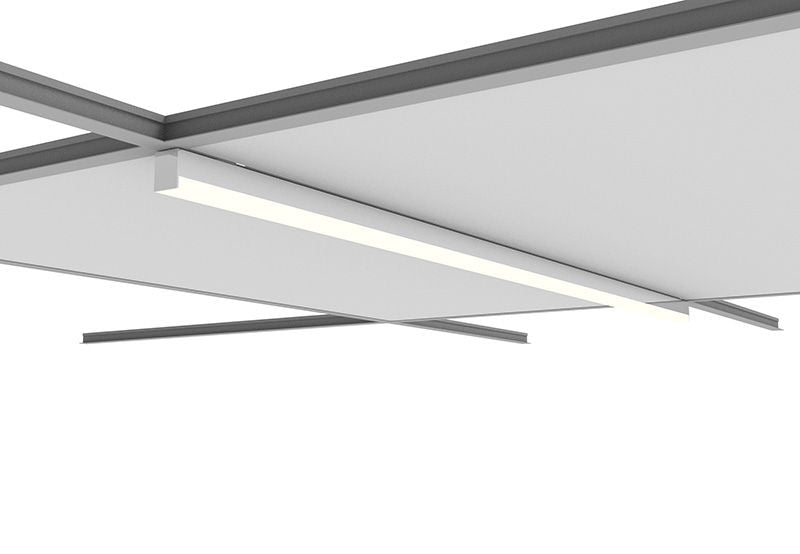

Westgate SCXT-8FT-40-80W-MCTP-D-DL 1-Inch Wide Linear T-Grid Mounting or Suspension Light - Matte White

WestgateSKU: SCXT-8FT-40-80W-MCTP-D-DL

Price:
Sale price$178.74

Shipping calculated at checkout

Stock:
In stock

Description

Technical Specs

  • Low Profile Modern Design
  • Aluminum Housing With Matte White Finish
  • Custom Colors Available
  • Lens Snaps into Housing
  • Mounting Options: Surface, Suspended, Recessed
  • IP Rating: IP54
  • Two 6.6 FT (2 Meters) Lead Cables Are Provided. Each Powers Half Of The Fixture. Position The Driver Box Near The Fixture€™s Center for the two cables to reach it. If you Need To Install The Driver Box Closer To One End, You Must Order An Extension Cable And RJ11 Coupling For The Cable From The Far End To Reach The Driver Box And Plug Into It
  • Each Fixture Comes With a 6-1/2€� Pre-Installed Cable With Male RJ11 Connector Plugs Right Into The Driver
  • External Driver Needed. Calculate The Total Wattage And Pick Adequate Driver(s) As Power Supply. Each Driver Has 4 Ports For 4 Separate Fixtures.
  • Do Not Exceed The Maximum Wattage Of The Driver

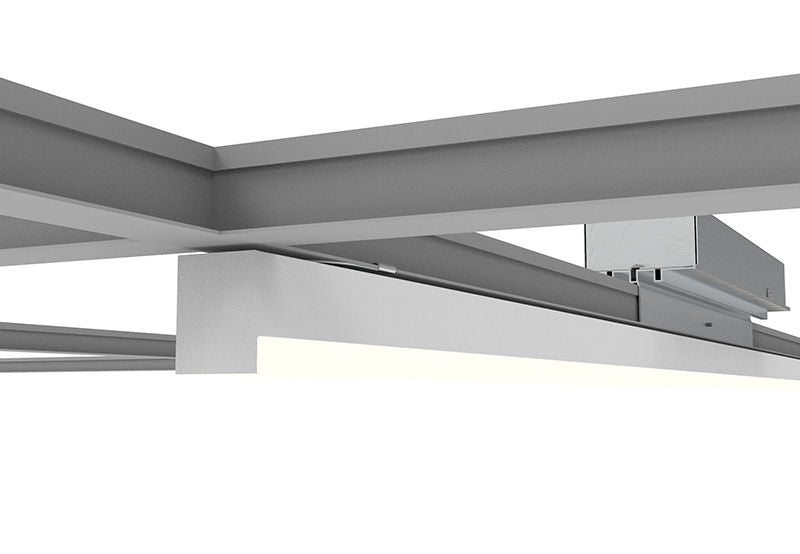

  • Order The SCXT-TGRID-SP1 To Install The Driver On Top Of a T-Bar. Or Install The Driver On a Joist

Applications

  • Ideal for any indoor applications; offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls and the best option for modern lighting solutions.

Download PDF File

Catalog Page

Specification

Installation Instructions
