Brand: Westgate | Product No: SCXT-4FT-20-40W-MCTP-D-DL

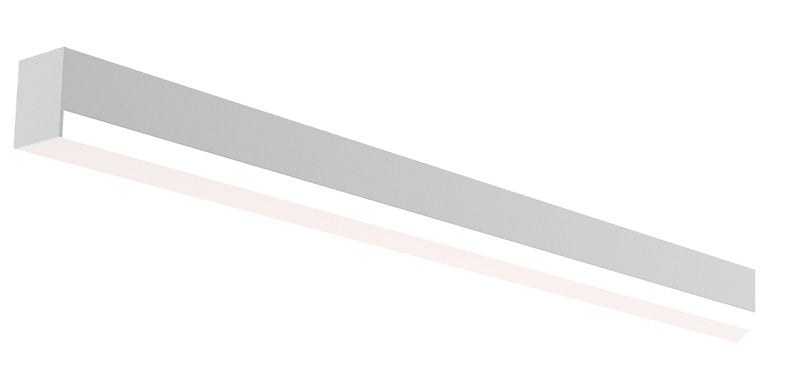

Westgate SCXT-4FT-20-40W-MCTP-D-DL 1-Inch Wide Linear T-Grid Mounting or Suspension Light - Matte White
Couldn't load pickup availability
Pickup available at Sonic Distribution Center
Usually ready in 24 hoursPairs well with
Top-Rated Store • Read Reviews
Fast Shipping • Ships in 1–2 Business Days
30-Day Returns • See Terms
Secure Checkout • SSL Encrypted
Westgate SCXT-4FT-20-40W-MCTP-D-DL 1-Inch Wide Linear T-Grid Mounting or Suspension Light - Matte White
Product details
Description
Technical Specs
- Voltage: 120-277VAC 50/60Hz
- Wattage: 20W/30W/40W
- Power Factor: 0.95
- Total Harmonic Distortion: 20 %
- Efficacy: 110 LM/W
- Low Profile Modern Design
- Aluminum Housing With Matte White Finish
- Custom Colors Available
- Lens Snaps into Housing

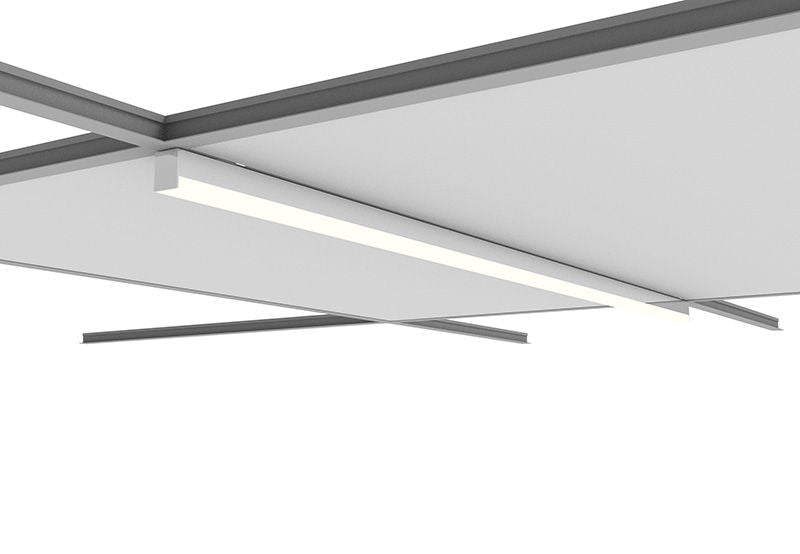

- Mounting Options: Surface, Suspended, Recessed
- IP Rating: IP54
- Each Fixture Comes With a 6-1/2š¬šš½ Pre-Installed Cable With Male RJ11 Connector Plugs Right Into The Driver
- External Driver needed. Calculate the total wattage and pick adequate driver(s) as power supply. each driver has 4 ports for 4 separate fixtures.
- Do not exceed the maximum wattage of the driver
- Order The SCXT-TGRID-SP1 To Install The Driver On Top Of a T-Bar. Or Install The Driver On a Joist

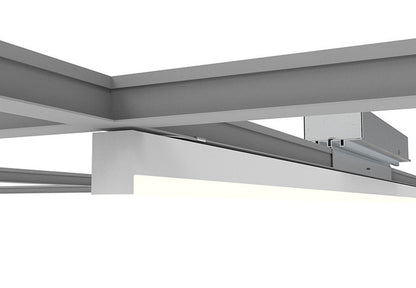

- Two T-Bar clips attached on top of the fixture ready to install on the grid
- Can be linked (W/ endcap on, not seamless) coupling bracket incl.
- Operating Temperature: -13F~104F
- Dimmable: 0~10V Dimming
- Total Lumens: 2200M/3300LM/4400
Applications
- Ideal for any indoor applications; offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls and the best option for modern lighting solutions.
Download PDF File
Catalog Page
Specification
Installation Instructions
