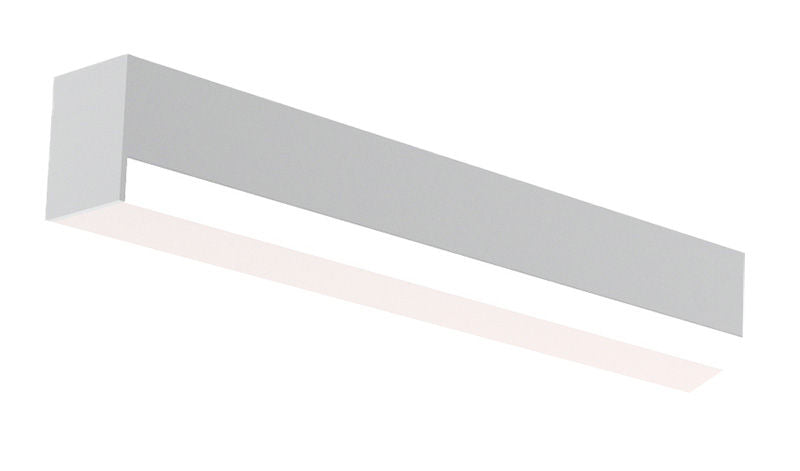

Westgate SCXT-2FT-10-20W-MCTP-D-DL 1-Inch Wide Linear T-Grid Mounting or Suspension Light - Matte White

WestgateSKU: SCXT-2FT-10-20W-MCTP-D-DL

Price:
Sale price$66.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277VAC 50/60Hz
  • Wattage: 10W/15W/20W
  • Power Factor: >0.95
  • Total Harmonic Distortion: ‰¤ 20 %
  • Efficacy: 110 LM/W
  • Low Profile Modern Design
  • Aluminum Housing With Matte White Finish
  • Custom Colors Available
  • Lens Snaps into Housing

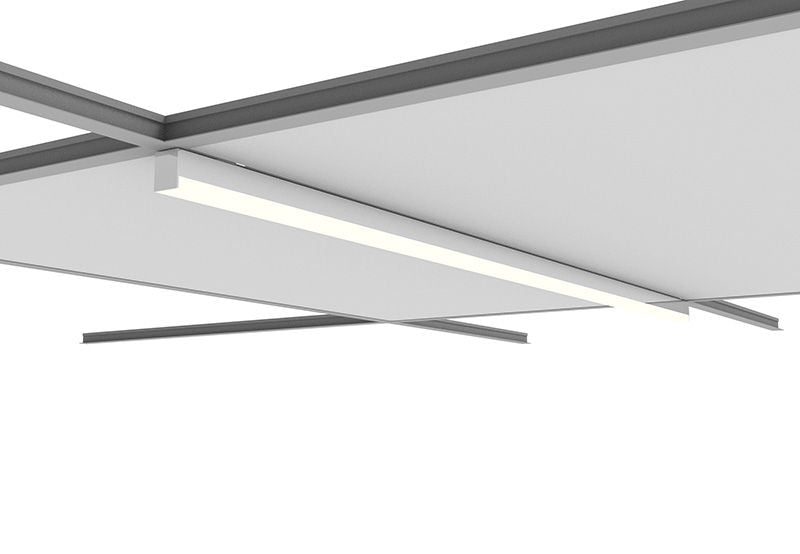

  • Mounting Options: Surface, Suspended, Recessed
  • IP Rating: IP54
  • Each Fixture Comes With a 6-1/2€� Pre-Installed Cable With Male RJ11 Connector Plugs Right Into The Driver
  • External Driver needed. Calculate the total wattage and pick adequate driver(s) as power supply. each driver has 4 ports for 4 separate fixtures.
  • Do not exceed the maximum wattage of the driver
  • Order The SCXT-TGRID-SP1 To Install The Driver On Top Of a T-Bar. Or Install The Driver On a Joist

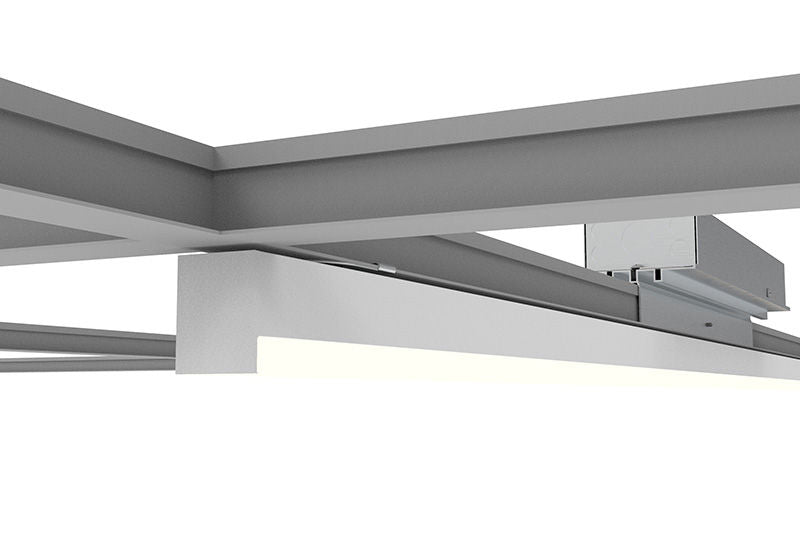

  • Two T-Bar clips attached on top of the fixture ready to install on the grid
  • Can be linked (W/ endcap on, not seamless) coupling bracket incl.
  • Operating Temperature: -13F~104F
  • Dimmable: 0~10V Dimming
  • Total Lumens: 1100M/1650LM/2200

Applications

  • Ideal for any indoor applications; offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls and the best option for modern lighting solutions.

Download PDF File

Catalog Page

Installation Instructions
