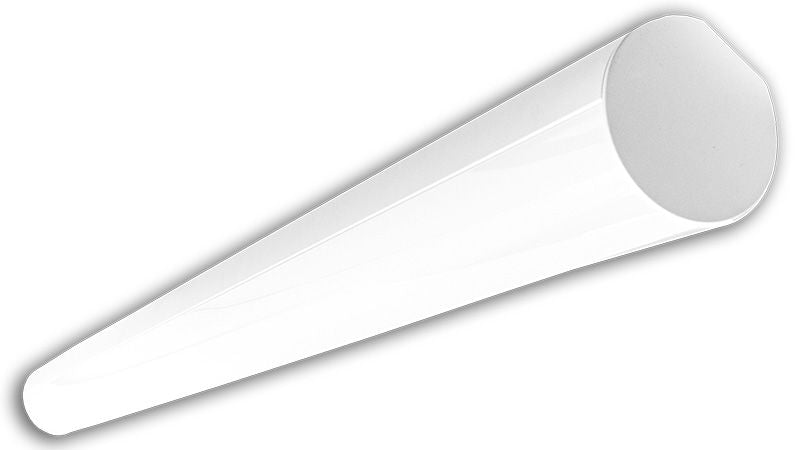

Westgate SCXR-4FT-40W-MCT4-D LED Round Superior Architectural Seamless Linear Light - Matte White

WestgateSKU: SCXR-4FT-40W-MCT4-D

Price:
Sale price$163.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277VAC 50/60Hz
  • Wattage: 40W
  • Power Factor: >0.95
  • LWP: 111/ 124/ 116/ 119
  • Total Harmonic Distortion: ‰¤ 20 %
  • Low Profile Modern Design
  • Aluminum Housing With Matte White Finish
  • Custom Colors Available
  • Lens Snaps into Housing
  • Make Different Connections Via L Joints on Both Ends
  • Mounting Options: Surface, Suspended, Wall
  • IP Rating: IP54
  • Operating Temperature
  • Dimmable: 0~10V Dimming
  • Total Lumens: 4765M/ 5090LM/ 4967LM/ 5052LM
  • Color Temperatures: 3000K/3500K/4000K/5000K
  • Multi-CCT(Selectable Switch Inside Fixture)
  • Color Rendering Index: CRI ‰¥ 80
  • Up Light Option Available
  • 50,000 Hours Rated Life
  • 5-Year Warranty
  • Beam Angle: 104.8(H) x 100.5(V)ure: -13F~104F

Applications

  • Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions.
  • It can be used in any indoor application.
