Westgate SCXC-Q48-25W-MCT4 120-277V Quarter of Circle 4CCT - Matte White

WestgateSKU: SCXC-Q48-25W-MCT4

Price:
Sale price$ 158.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277V AC 50/60Hz
  • Wattage: 25W
  • Power Factor: >0.9
  • Total Harmonic Distortion: ≤ 20 %
  • Efficacy: 110 LPW
  • Aluminum Housing with Matte White Finish
  • Adjustable Suspension Brackets Provided on Top of the Fixtures
  • Custom Colors Available
  • Lens Snaps into Housing
  • Mounting Options: Surface, Suspended
  • Operating Temperature: -22°F to +104°F
  • IP Rating: IP54
  • 5-Year Warranty
  • Multi-CCT (Selectable with Switch Inside the Fixture)
  • Dimmable: 0~10V Dimming
  • Total Lumens: 2750LM
  • Color Temperatures: 3000K/3500K/4000K/5000K
  • Color Rendering Index: CRI ≥ 80
  • Beam Angle: 104.8°(H) x 100.5°(V)
  • 50,000 Hours Rated Life

Applications

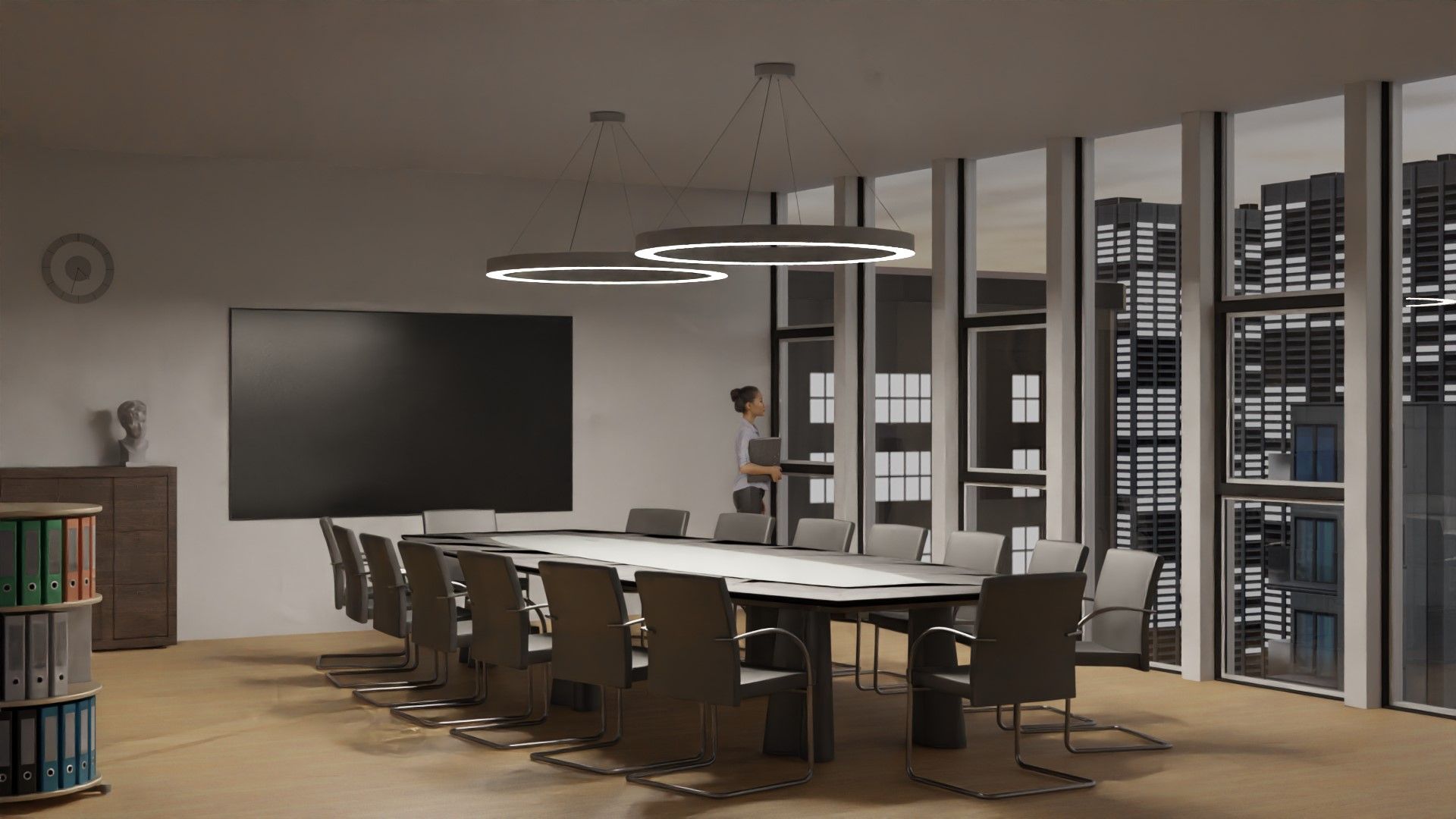

  • Quarter of a circle model ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions
  • Can be used in any indoor applications

Download PDF File

Catalog Page

Specification
