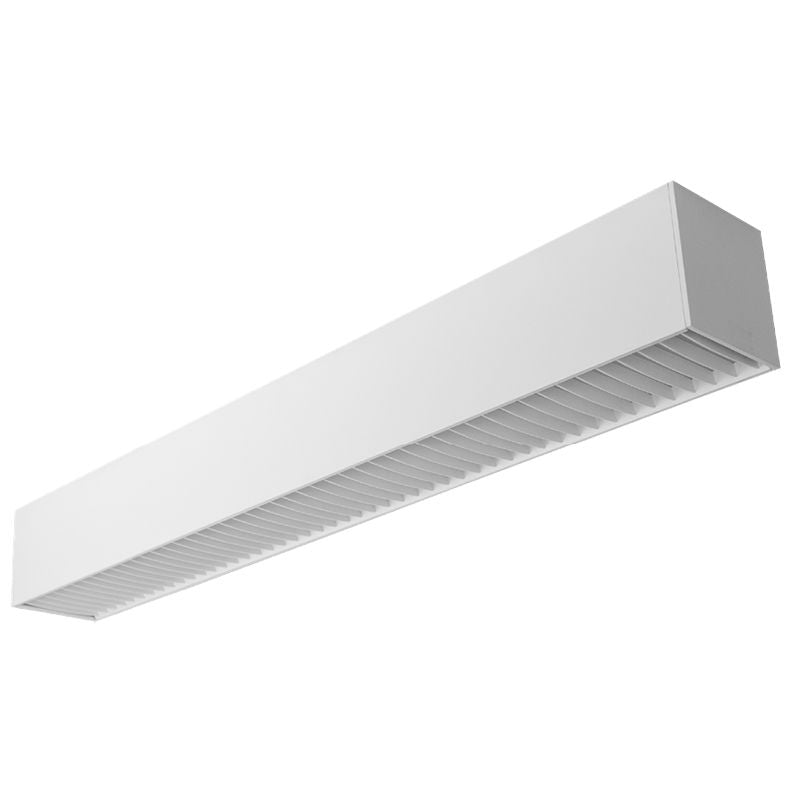

Westgate SCX6-4FT-40-60W-MCTP-LUV-WH LED 6" Superior Architectural Seamless Indirect Linear Light with White Louver Lens - Matte White

WestgateSKU: SCX6-4FT-40-60W-MCTP-LUV-WH

Price:
Sale price$481.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277V AC 50/60Hz
  • Wattage: 40W/50W/60W
  • Power Factor: >0.95
  • LPW: 105/110/115
  • Total Harmonic Distortion: ‰¤ 20
  • Low Profile Modern Design
  • Aluminum Housing with Matte White Finish
  • Custom Colors Available
  • Lens Snaps into Housing
  • Make Different Connections via T/L/X Joits on Both Ends
  • Mounting Options: Surface, Suspended, Wall, Recessed
  • IP Rating: IP54
  • Operating Temperature: -13F~104F
  • Adjustable Suspension Brackets Provided on Top of the Fixtures
  • Dimmable: 0~10V Dimming
  • Total Lumens: 6900LM Max
  • Color Temperatures: 3000K/3500K/4000K/5000K
  • MCTP: Multi Color Temperature and Power (Selectable the switches are in the fixture under the lens)
  • Color Rendering Index: CRI ‰¥ 80
  • 50,000 Hours Rated Life
  • 5-Year Warranty
  • Beam Angle: 104.8(H) x 100.5(V)

Applications

  • Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions
  • It can be used in any indoor applications

Download PDF File

Specification

Installation Instructions
