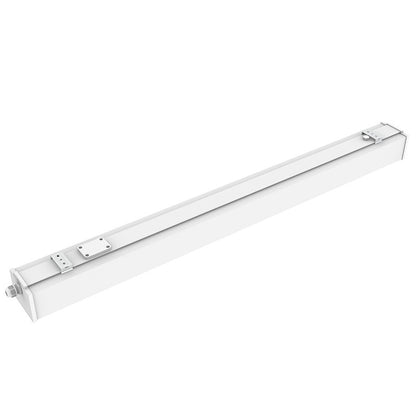

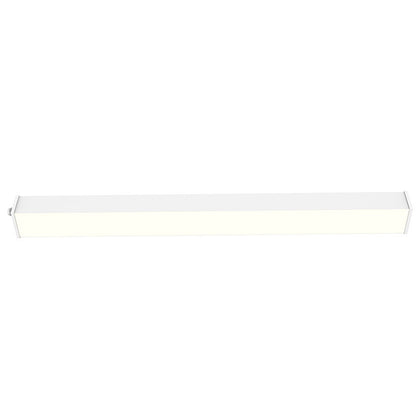

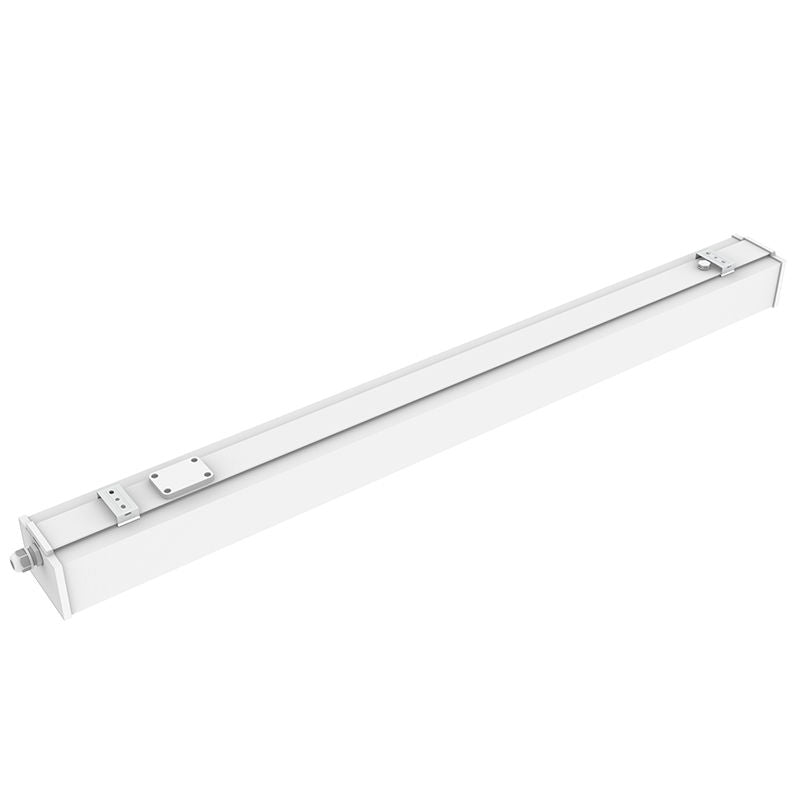

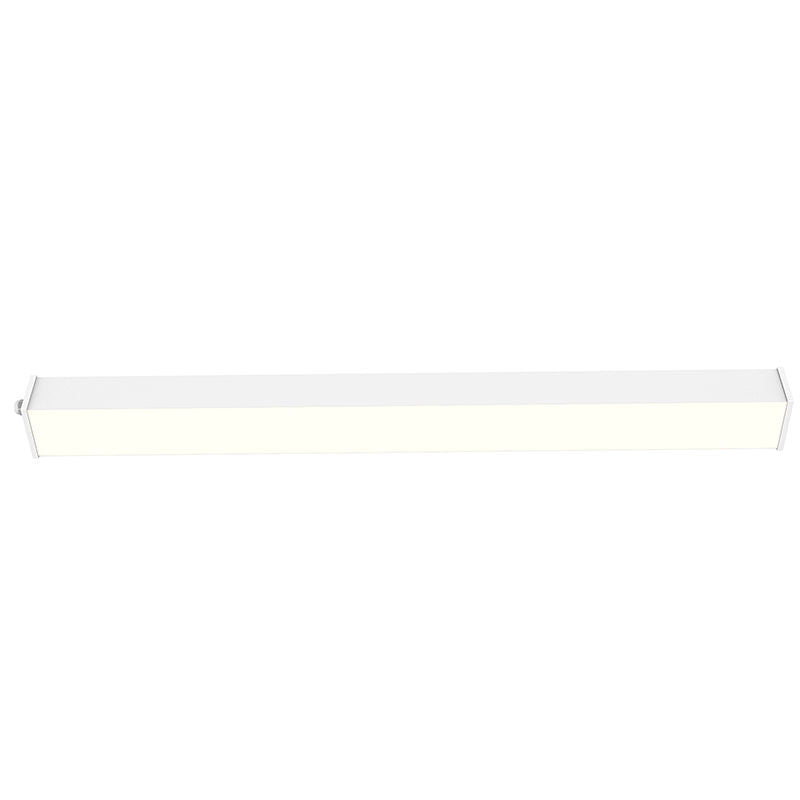

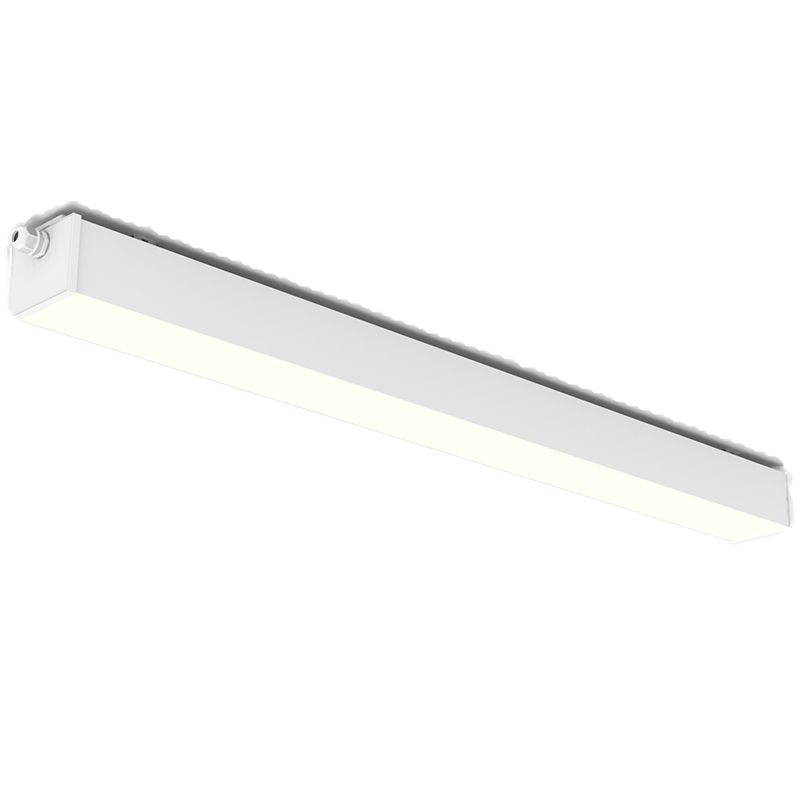

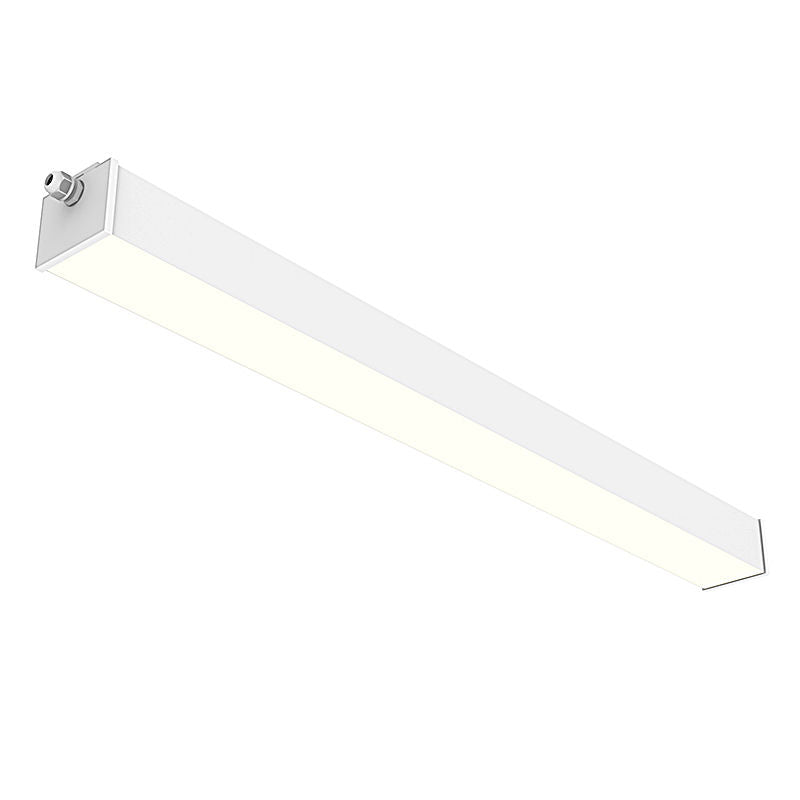

Westgate SCX4-IP66-SUR-8FT-80-160W-MCTP IP66 Wet Location 4" Superior Architectural Linear Surface Mounted Light - Sandy White

WestgateSKU: SCX4-IP66-SUR-8FT-80-160W-MCTP

Price:
Sale price$404.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277VAC 50/60Hz
  • Wattage: 80W/120W/160W
  • Power Factor: >0.95
  • LPW: 105
  • Total Harmonic Distortion: ‰¤ 19 %
  • 6FT. Lead 18/5 AWG SJTW on One Side
  • 1FT. Lead 18/5 AWG SJTW on The Other Side For Daisy Chaining. The Cord Can be Tucked in If Not Needed, Weatherproof 1/2€� NPT Plug Provided to Cover The Hub.
  • All Wires Are Capped
  • Two Steel Compression Connectors Provided.
  • Surface Mounting Brackets with Screws & Anchors Included
  • Low Profile Modern Design
  • Aluminum Housing With Sandy White Finish
  • Mounting Options: Surface
  • IP Rating: IP66 Wet Location Only
  • Operating Temperature: -22F to +104F
  • 5-Year Warranty
  • MCTP: Multi Color Temperature and Power (Selectable Switch On Fixture)
  • Dimmable: 0~10V Dimming
  • Total Lumens: 16800LM Max.
  • Color Temperatures: 3500K/4000K/5000K
  • Color Rendering Index: CRI ‰¥ 80
  • 50,000 Hours Rated Life
  • Beam Angle: 105(H) x 103.7(V)

Applications

  • Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions

Download PDF File

Specification

Installation Instructions
