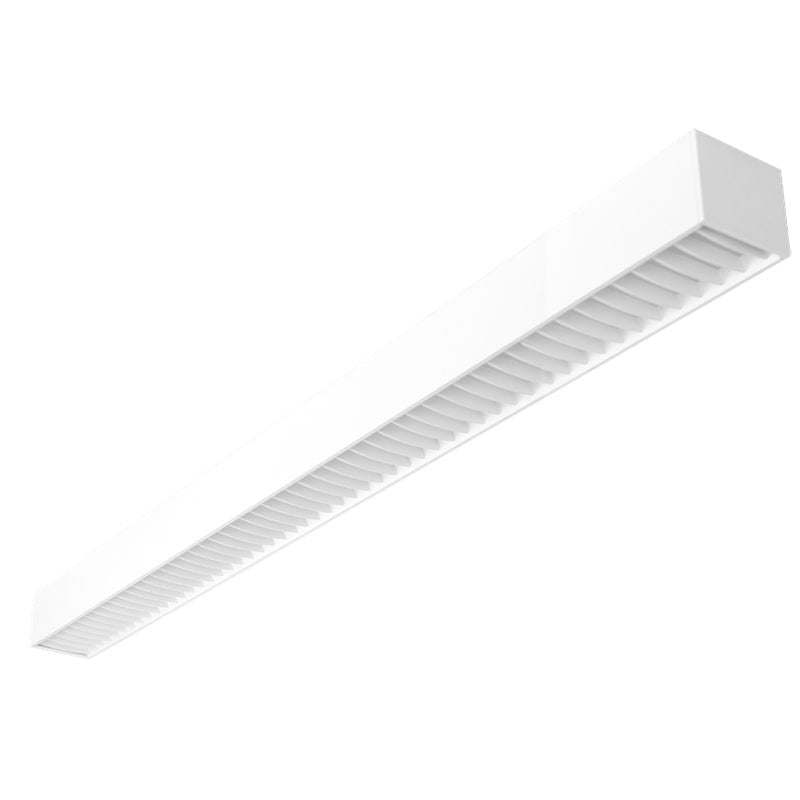

Westgate SCX4-6FT-60W-MCT4-D-LUV-WH LED 4" Superior Architectural Seamless Linear Light with Louver Lens - Matte White

WestgateSKU: SCX4-6FT-60W-MCT4-D-LUV-WH

Price:
Sale price$242.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277VAC 50/60Hz
  • Wattage: 60W
  • Power Factor: >0.95
  • LPW: 113/118/120/121
  • Total Harmonic Distortion: ‰¤ 20 %
  • Low Profile Modern Design
  • Aluminum Housing with Matte White Finish
  • Custom Colors Available
  • Lens Snaps into Housing
  • Make Different Connections via T/L/X Joints on Both Ends
  • Mounting Options: Surface, Suspended, Wall, Recessed
  • IP Rating: IP54
  • Operating Temperature: -13F~104F
  • Adjustable Suspension Brackets Provided on Top of the Fixtures
  • Dimmable: 0~10V Dimming
  • Total Lumens: 7208LM
  • Color Temperatures: 3000K/3500K/4000K/5000K
  • Multi-CCT (Selectable Switch Inside Fixture)
  • Color Rendering Index: CRI ‰¥ 80
  • 50,000 Hours Rated Life
  • 5-Year Warranty
  • Beam Angle: 104.8(H) x 100.5(V)

Applications

  • Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions.
  • It can be used in any indoor application.

Download PDF File

Specification

Installation Instructions
