Westgate SCX-2X4-60-120W-MCTP SCX 2X2 & 2X4 Linear Light - Matte White

WestgateSKU: SCX-2X4-60-120W-MCTP

Price:
Sale price$467.74

Shipping calculated at checkout

Stock:
In stock

Description

Technical Specs

  • Voltage: 120-277VAC 50/60Hz
  • Wattage: 60W/90W/120W
  • Power Factor: >0.95
  • Total Harmonic Distortion: ‰¤ 20 %
  • LPW: 110LM/W
  • Aluminum Housing with Matte White Finish
  • Custom Colors Available
  • Lens Snaps into Housing

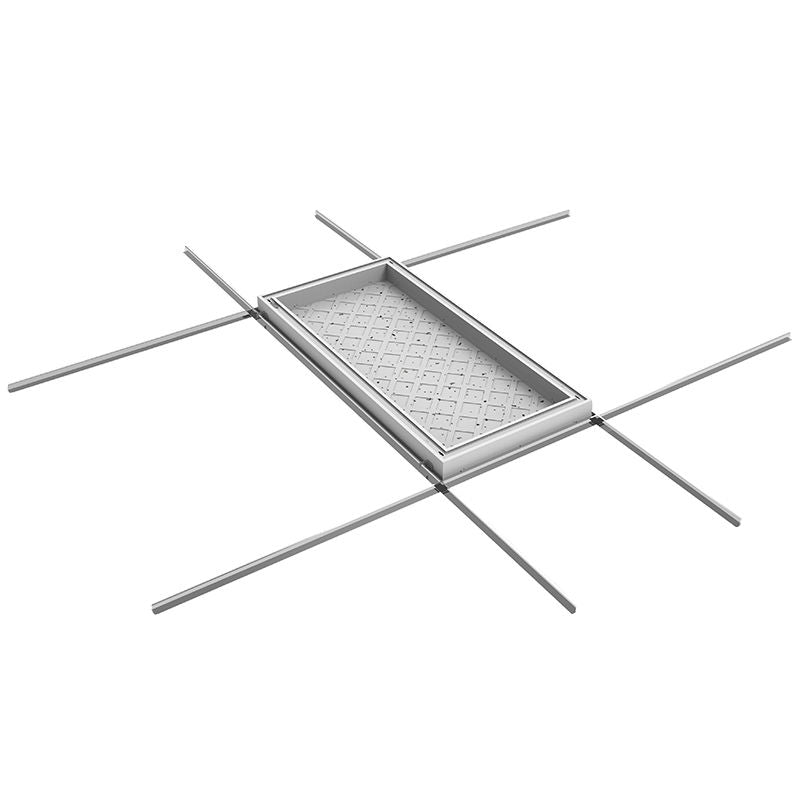

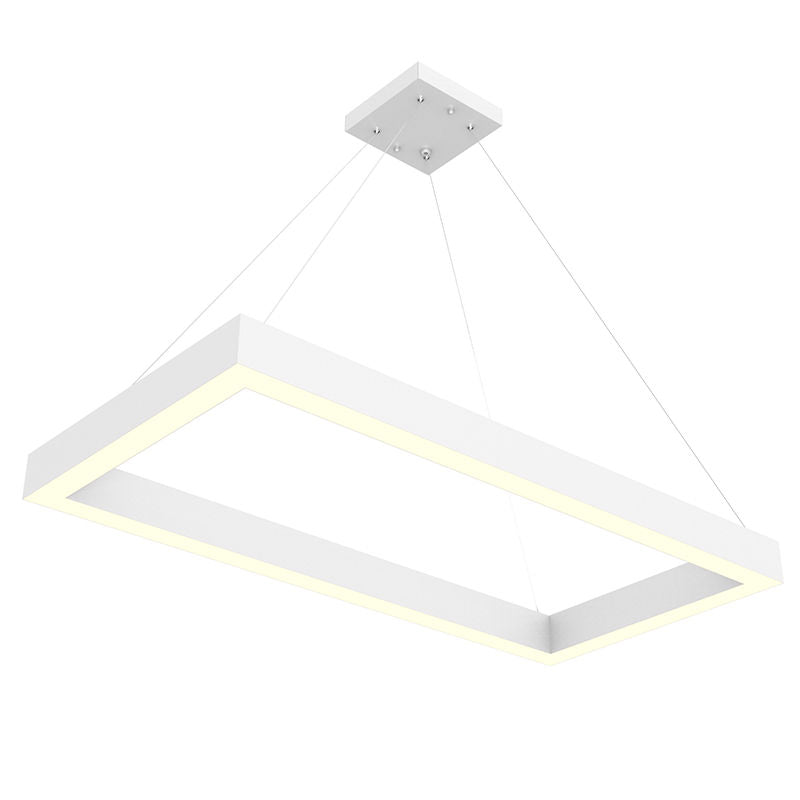

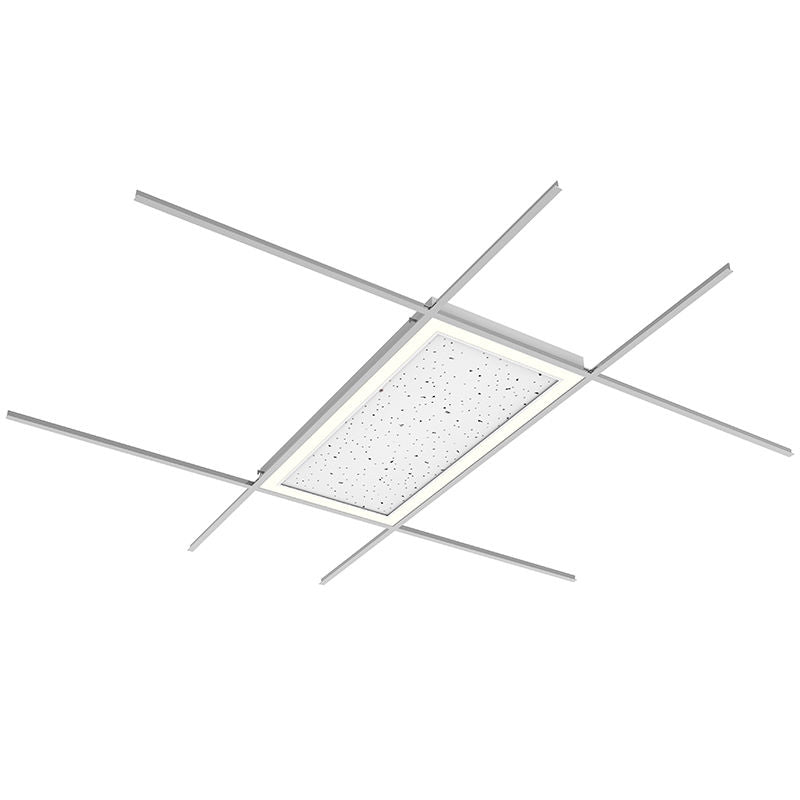

  • Mounting Options: Surface, Suspended, Recessed
  • IP Rating: IP54 Suitable for Damp Location
  • Operating Temperature: -13F~104F
  • 5-Year Warrant
  • MCTP: Multi Color Temperature and Power (Selectable Switch Inside Fixture)
  • Dimmable: 0~10V Dimming
  • Total Lumens: 6600LM/9900LM/13200LM
  • Color Temperatures: 3000K/3500K/4000K/5000K
  • Color Rendering Index: CRI ‰¥ 80
  • Up Light Option Available
  • Rated Life: 50,000 Hrs.
  • Beam Angle: 104.8(H) x 100.5(V)

  Applications

  • Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions
  • It can be used in any indoor applications

Download PDF File

Catalog Page

Specification

Installation Instructions
