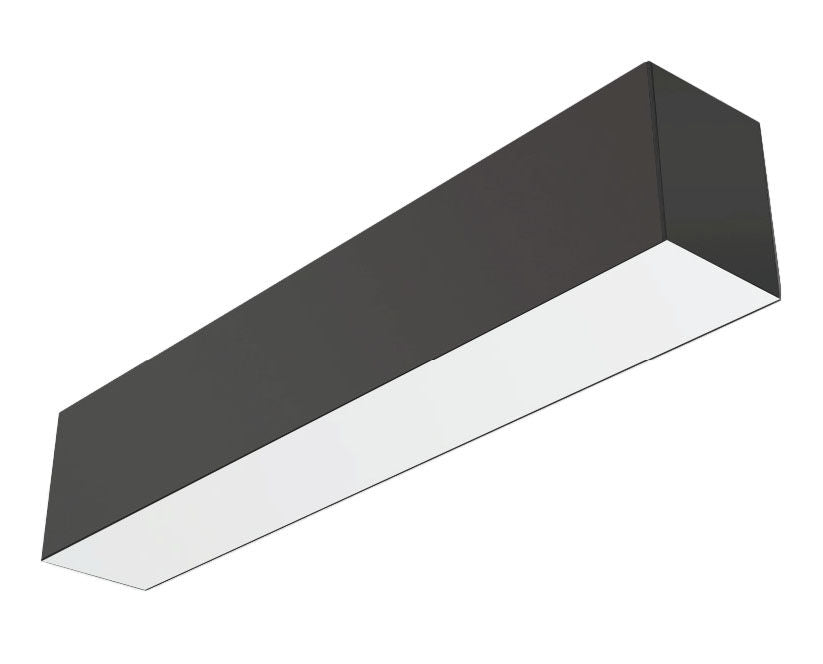

Westgate SCX-1FT-10W-MCT4-D-BK LED 2-3/4" Superior Architectural Seamless Linear Light - Matte Black

WestgateSKU: SCX-1FT-10W-MCT4-D-BK

Price:
Sale price$104.74

Shipping calculated at checkout

Stock:
In stock

Pickup available at Sonic Electric

Usually ready in 24 hours

Description

Technical Specs

  • Voltage: 120-277V AC 50/60Hz
  • Wattage: 10W
  • Power Factor: >0.95
  • Total Harmonic Distortion: ‰¤ 20%
  • Efficacy: 110 LPW
  • Low Profile Modern Design
  • Aluminum Housing with Matte Black Finish
  • Custom Colors Available
  • Lens Snaps into Housing
  • Make Different Connections via T/L/X Joints on Both Ends
  • Mounting Options: Surface, Suspended, Wall, Recessed
  • IP Rating: IP54
  • Operating Temperature: -13F~104F
  • Adjustable Suspension Brackets Provided on Top of the Fixtures
  • Dimmable: 0~10V Dimming
  • Total Lumens: 1100LM
  • Color Temperatures: 3000K/3500K/4000K/5000K
  • Multi-CCT (Selectable with Switch Inside the Fixture)
  • Color Rendering Index: CRI ‰¥ 80
  • Up Light Option Available
  • 50,000 Hours Rated Life
  • 5-Year Warranty
  • Beam Angle: 104.8(H) x 100.5(V)

  Applications

  • Ideal for offices, hotels, corridors, saloons, libraries, meeting rooms, conference halls, and the best solution for modern lighting solutions.
  • It can be used in any indoor application.

Download PDF File

Specification

Installation Instructions
