Westgate | Product Number: RSL6-G2-MCT5-ORB

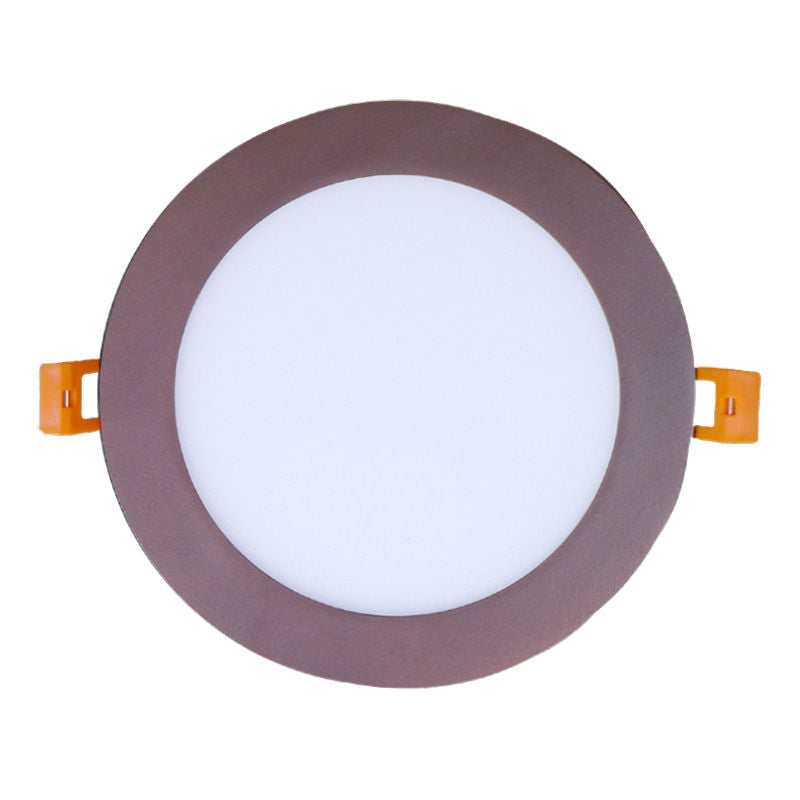

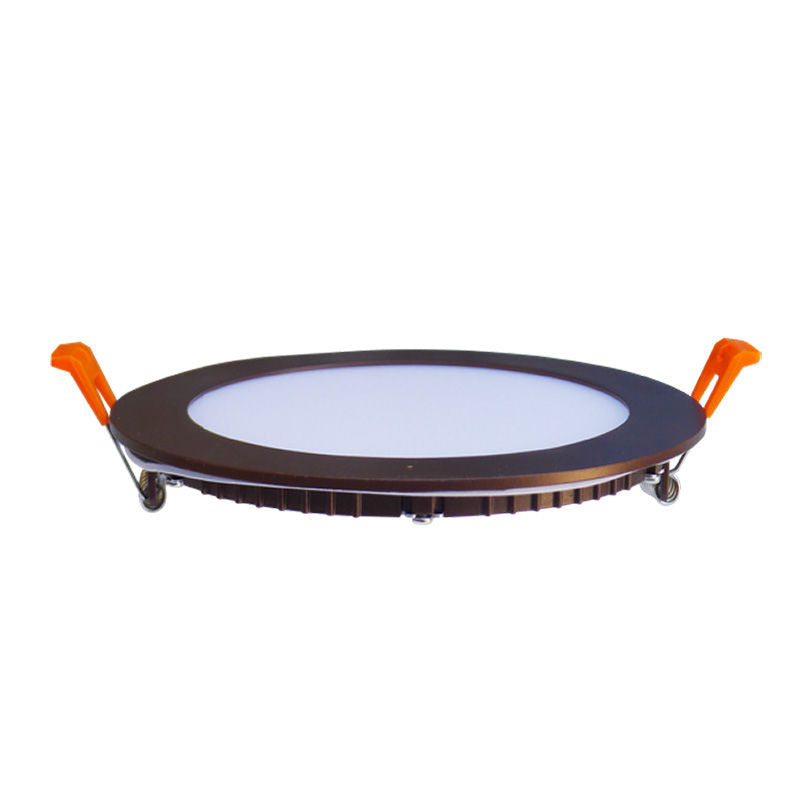

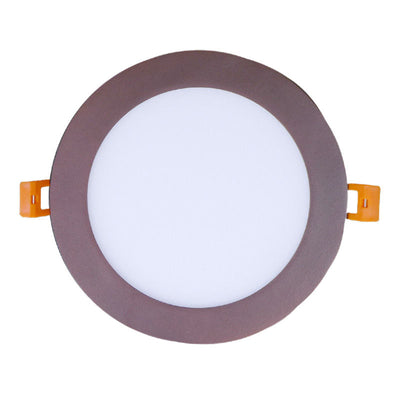

Westgate RSL6-G2-MCT5-ORB 6" RSL G2 Second Generation Slim Wafer Light - Oil-Rubbed Bronze
Pairs well with
30-day returns Read terms & conditions
Top rated store Read 5-star reviews
Orders ship within 2 business days
Safe & secure checkout
Westgate RSL6-G2-MCT5-ORB 6" RSL G2 Second Generation Slim Wafer Light - Oil-Rubbed Bronze
Product details
Description
Technical Specs
- :: Voltage: 120V AC
- :: Output Voltage: 36VDC
- :: Power Factor: >0.90
- :: Wattage: 12W
- :: Efficacy: 83 LPW
- :: Total Harmonic Distortion: €°¤15 %
- :: 1/4½Thick
- :: Up to 9 AWG18 Wires
- :: Die-Cast Aluminum With Powder Coat Finish
- :: Pot Light Housing Is Not Required Even For Insulated Ceiling

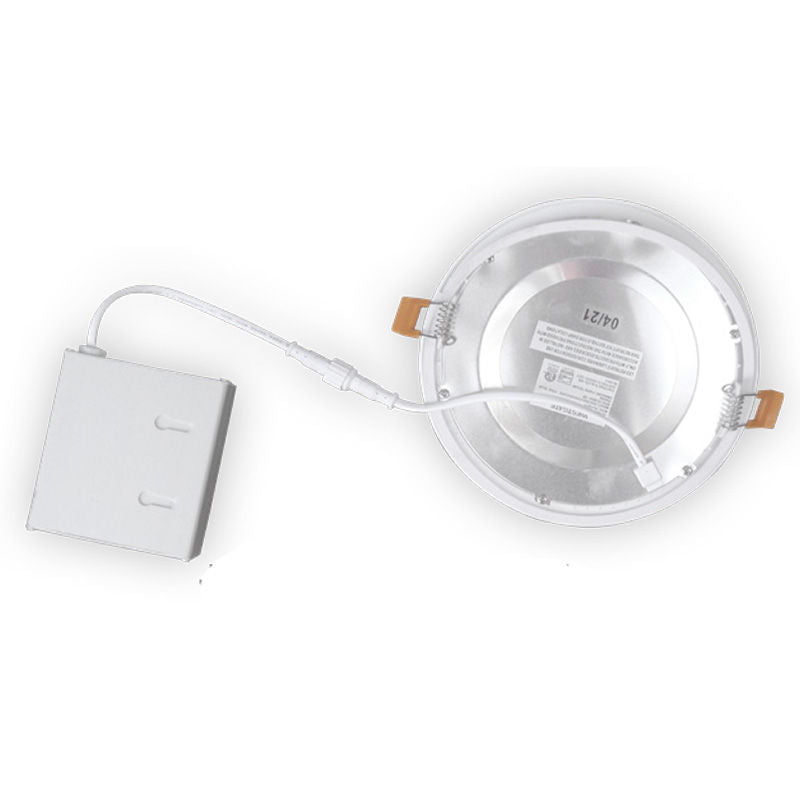

- :: Junction box 1½ Thick Included With Fixture
- :: TypeI Crated: Approved For Direct Contact With Insulation
- :: Maximum Ambient Temperature: -40°F to 104°F
- :: Damp Location
- :: Dimming: Dimmable Down to 10% Using a Standard TRIAC LED Dimmer
- :: Lens: 0.125½ White Translucent Acrylic
- :: Can Rotate After Installation to Align
- :: LED: Seoul DOB (Driver On Board) Technology
- :: Optics: White Translucent Acrylic
- :: Total Lumens: 1000LM
- :: Color Temperatures: 2700K/3000K/3500K/4000K/5000K
- :: Multi CCT (Selectable Switch On The Back of The Driver )
- :: Color Rendering Index: CRI €°¥ 80
- :: Beam Angle: 100°-110°
- :: Rated life: 50,000 hrs
Applications
- :: LED recessed trims have been designed to be a flexible lighting solution for new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications
