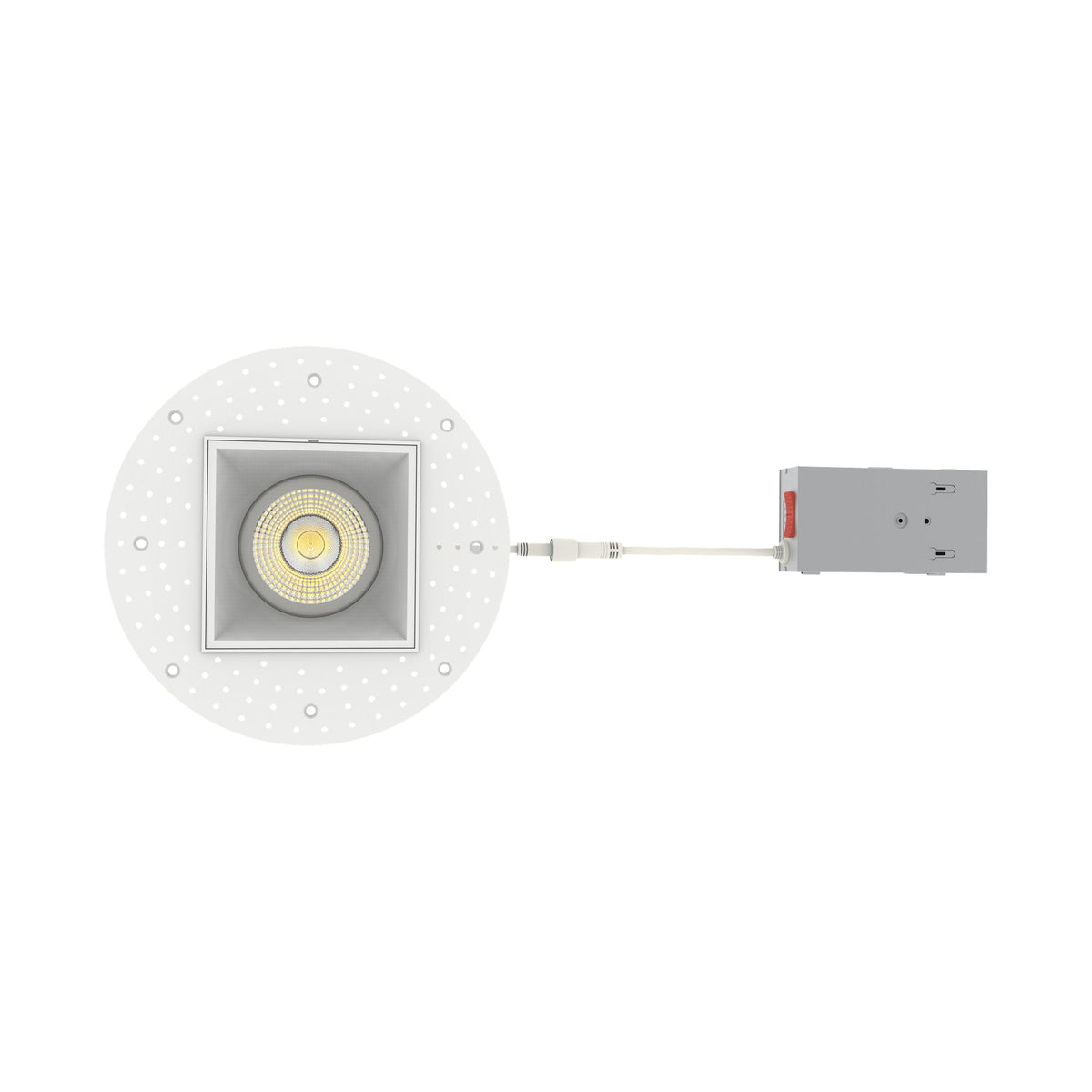

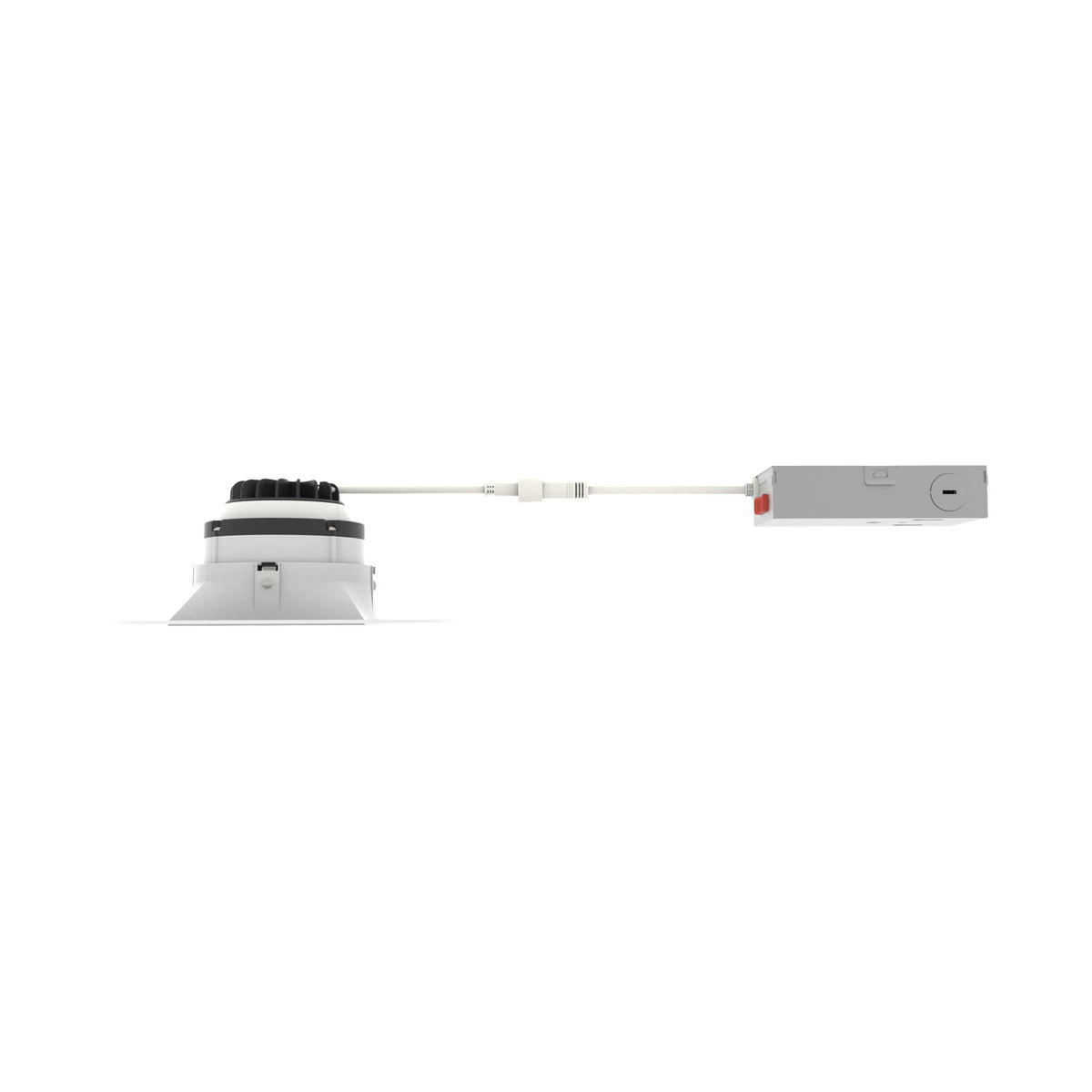

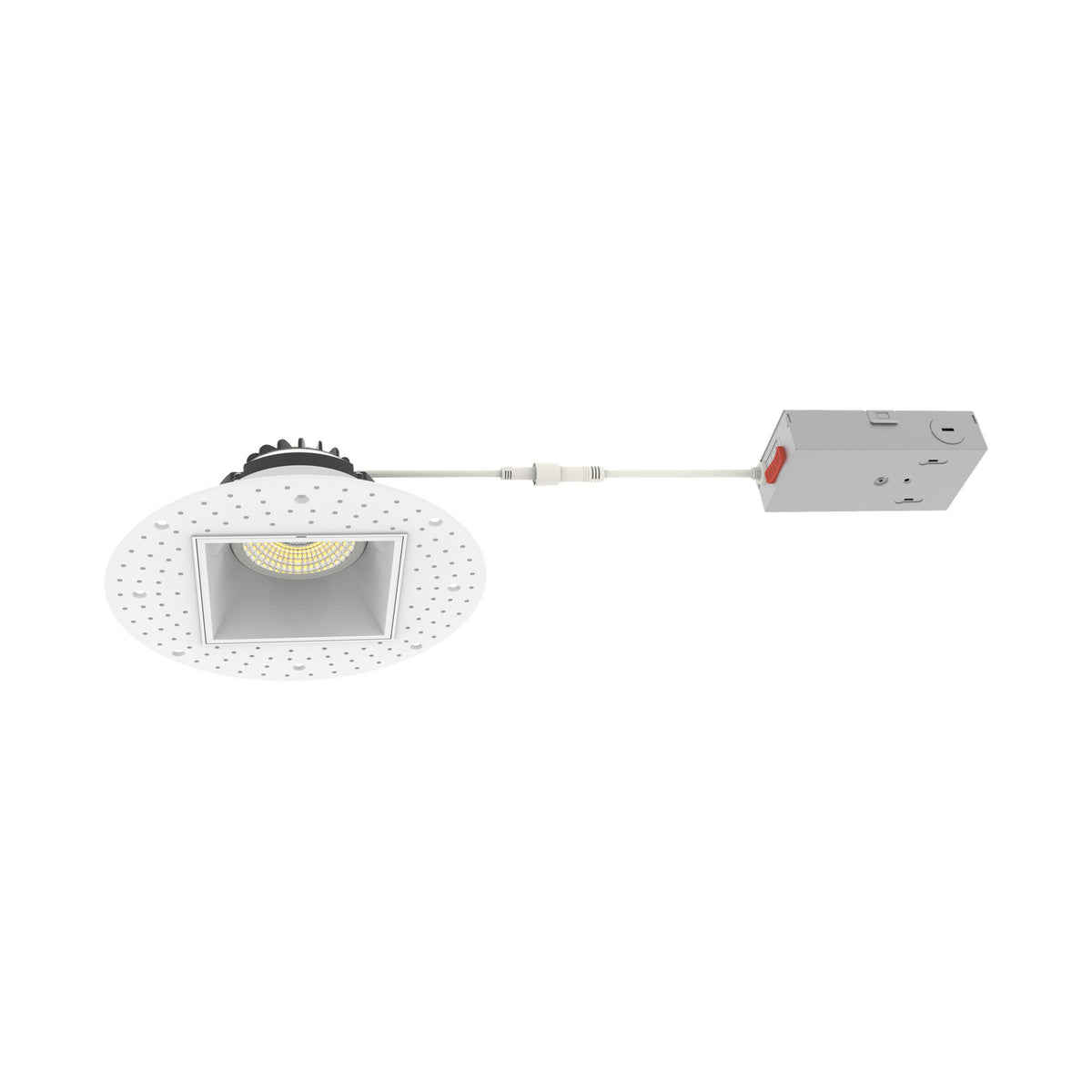

Westgate RDSG4TL-MCT5 4" Square Gimbal Trimless Recessed Downlight, 15W, 5CCT Selectable, 1,250 Lumens, 90 CRI - White Finish
Westgate RDSG4TL-MCT5 4" Square Gimbal Trimless Recessed Downlight, 15W, 5CCT Selectable, 1,250 Lumens, 90 CRI - White Finish
Westgate RDSG4TL-MCT5 4" Square Gimbal Trimless Recessed Downlight, 15W, 5CCT Selectable, 1,250 Lumens, 90 CRI - White Finish

Westgate RDSG4TL-MCT5 4" Square Gimbal Trimless Recessed Downlight, 15W, 5CCT Selectable, 1,250 Lumens, 90 CRI - White Finish

$73.74

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

In Stock

Ships in 1–3 Business Days

Free Nationwide Shipping

View minimums β†’

30-Day Returns

Read Terms β†’

Questions?

Contact via Chat, Email or Phone

Product Details

Description

Details of the Westgate RDSG4TL-MCT5 4" Square Gimbal Trimless Recessed Downlight, 15W, 5CCT Selectable, 1,250 Lumens, 90 CRI - White Finish

The Westgate RDSG4TL-MCT5 is a 4-inch square gimbal trimless recessed downlight designed to deliver powerful, directional illumination with a clean architectural appearance. Its 15W COB LED produces 1,250 lumens at 83 lm/W, while the 5CCT selectable design allows users to choose 2700K, 3000K, 3500K, 4000K, or 5000K. With 90 CRI, it provides high-quality color rendering for a wide range of interior lighting applications.

The adjustable gimbal provides 360Β° rotation and 30Β° tilt, allowing precise aiming for accent and display lighting. Its canless trimless mud-in design creates a clean ceiling appearance, while the included Class 2 isolated low-voltage remote driver, deep-regress optical design, polycarbonate lens, and die-cast aluminum heatsink provide a practical and durable lighting solution.

Key Features

  • 4-inch square gimbal trimless recessed downlight
  • 15W COB LED delivers 1,250 lumens
  • 83 lm/W lighting efficacy
  • 5CCT field selectable: 2700K, 3000K, 3500K, 4000K, and 5000K
  • 90 CRI for high-quality color rendering
  • Gimbal adjustable with 360Β° rotation and 30Β° tilt
  • Deep-regress optical design
  • Square aperture with a clean trimless appearance
  • White finish for light-toned architectural ceilings
  • TRIAC / ELV dimmable
  • Class 2 isolated low-voltage remote driver included
  • Canless trimless mud-in installation
  • Polycarbonate lens and die-cast aluminum heatsink
  • ETL Listed

Technical Specifications

  • Brand: Westgate
  • Model: RDSG4TL-MCT5
  • Product Type: Square Gimbal Trimless Recessed Downlight
  • Input Voltage: 120 VAC, 60 Hz
  • Dimension: w-3.51 in x d-8.19 in x h-4 in
  • Wattage: 15W
  • Delivered Lumens: 1,250 lm
  • Efficacy: 83 lm/W
  • CCT: 2700K / 3000K / 3500K / 4000K / 5000K, Field Selectable
  • CRI: 90
  • Light Source: COB LED
  • Dimming: TRIAC / ELV
  • Power Factor: >0.9
  • THD: <25%
  • Optical Design: Deep Regress
  • Lens: Polycarbonate
  • Aperture: Square
  • Gimbal Adjustment: 360Β° Rotation / 30Β° Tilt
  • Housing: Die-Cast Aluminum Heatsink
  • Finish: White
  • Driver: Class 2 Isolated Low-Voltage Remote Driver
  • Wiring: FT4-Rated Cable with Male/Female Quick Connector
  • Installation: Trimless Mud-In, Canless Recessed
  • Listing: ETL Listed
