- Brand: Westgate
- Part #: RDSG3TL-MCT5-BK

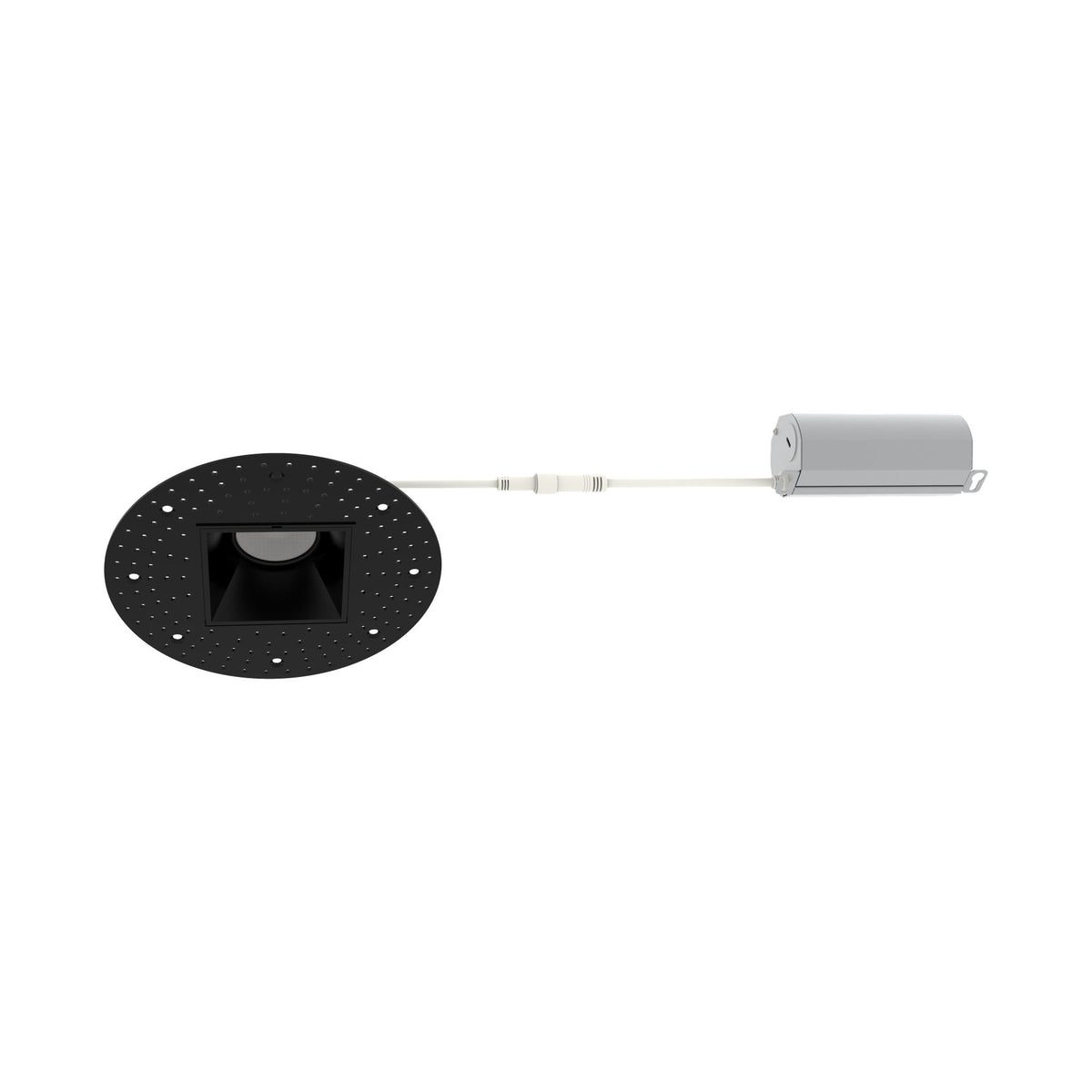

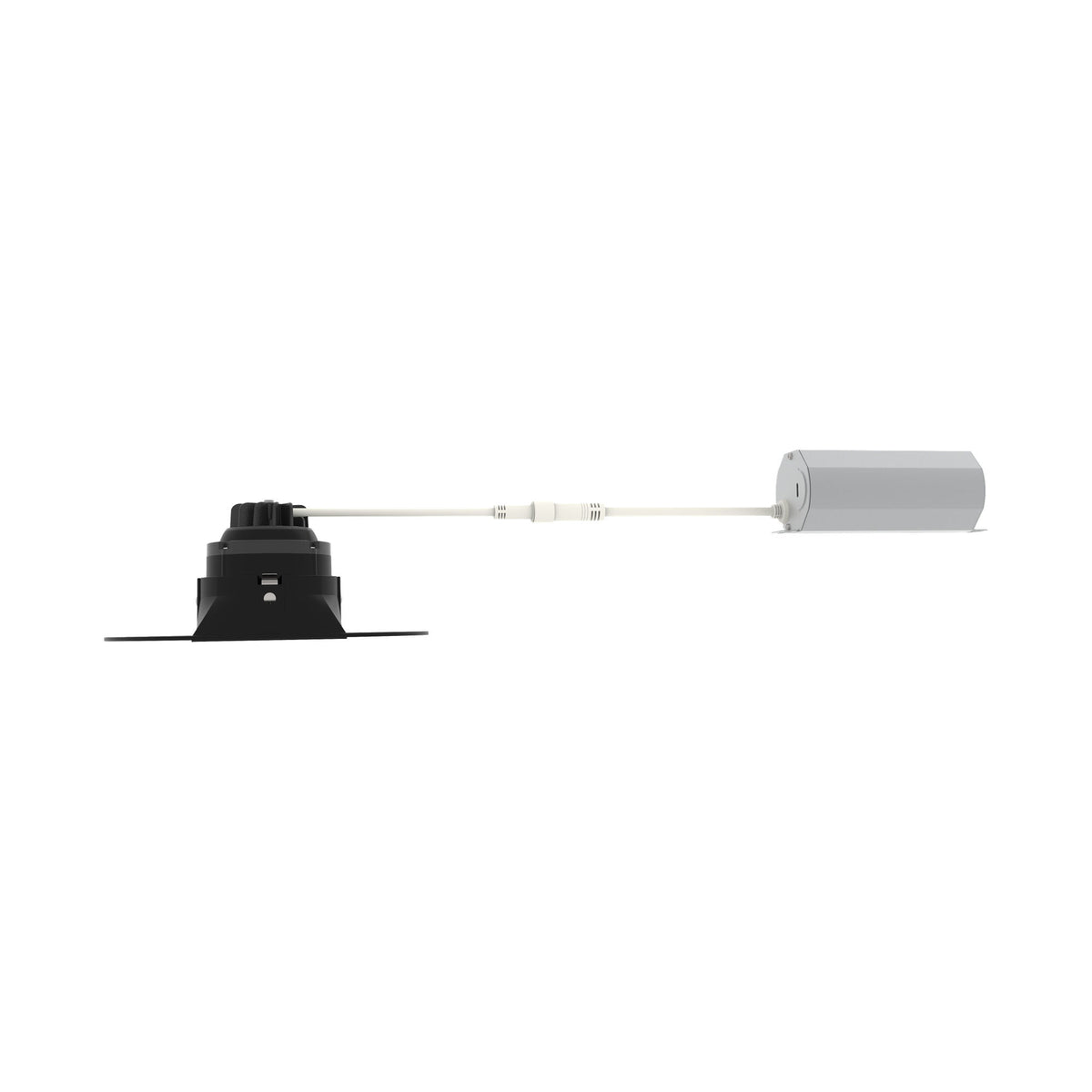

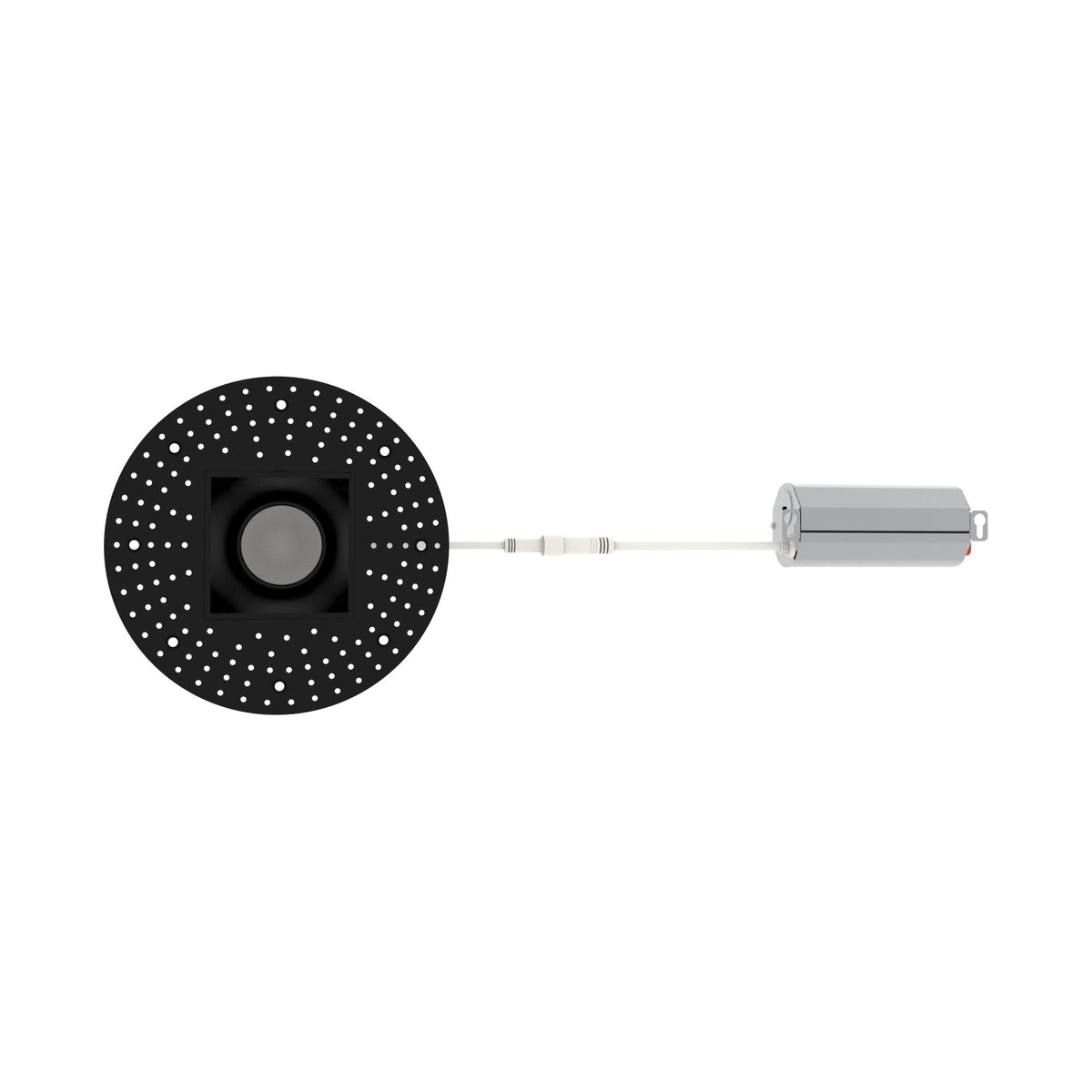

Westgate RDSG3TL-MCT5-BK 3" Square Gimbal Trimless Recessed Downlight, 9W, 5CCT Selectable, 730 Lumens, 90 CRI - Black Finish
Couldn't load pickup availability
Pickup available at Sonic Distribution Center
Usually ready in 24 hoursPairs well with
Westgate RDSG3TL-MCT5-BK 3" Square Gimbal Trimless Recessed Downlight, 9W, 5CCT Selectable, 730 Lumens, 90 CRI - Black Finish
In Stock
Ships in 1β3 Business Days
Free Nationwide Shipping
30-Day Returns
Product Details
Description
Details of the Westgate RDSG3TL-MCT5-BK 3" Square Gimbal Trimless Recessed Downlight, 9W, 5CCT Selectable, 730 Lumens, 90 CRI - Black Finish
The Westgate RDSG3TL-MCT5-BK is a 3-inch square gimbal trimless recessed downlight designed to deliver clean, directional illumination with a modern architectural appearance. Its 9W COB LED produces 730 lumens at 81 lm/W, while the 5CCT selectable design offers 2700K, 3000K, 3500K, 4000K, and 5000K color temperature options. The 90 CRI light source provides excellent color rendering, while the black finish complements dark-toned and accent ceilings.
The adjustable gimbal provides 360Β° rotation and 30Β° tilt, allowing precise directional lighting for accent and architectural applications. Its canless trimless mud-in installation creates a clean ceiling appearance, while the included Class 2 remote driver, deep-regress optical design, polycarbonate lens, and die-cast aluminum heatsink provide a practical and durable recessed lighting solution.
Key Features
- 3-inch square gimbal trimless recessed downlight
- 9W COB LED delivers 730 lumens
- 81 lm/W lighting efficacy
- 5CCT field selectable: 2700K, 3000K, 3500K, 4000K, and 5000K
- 90 CRI for high-quality color rendering
- Gimbal adjustable with 360Β° rotation and 30Β° tilt
- Deep-regress optical design
- Square aperture with a clean trimless appearance
- Black finish for dark-toned and accent ceilings
- TRIAC / ELV dimmable
- Class 2 isolated low-voltage remote driver included
- Canless trimless mud-in installation
- Polycarbonate lens and die-cast aluminum heatsink
- ETL Listed
Technical Specifications
- Brand: Westgate
- Model: RDSG3TL-MCT5-BK
- Product Type: Square Gimbal Trimless Recessed Downlight
- Input Voltage: 120 VAC, 60 Hz
- Dimension: w-2.92 in x d-6.61 in x h-3 in
- Wattage: 9W
- Delivered Lumens: 730 lm
- Efficacy: 81 lm/W
- CCT: 2700K / 3000K / 3500K / 4000K / 5000K, Field Selectable
- CRI: 90
- Light Source: COB LED
- Dimming: TRIAC / ELV
- Power Factor: >0.9
- THD: <25%
- Optical Design: Deep Regress
- Lens: Polycarbonate
- Aperture: Square
- Gimbal Adjustment: 360Β° Rotation / 30Β° Tilt
- Housing: Die-Cast Aluminum Heatsink
- Finish: Black
- Driver: Class 2 Isolated Low-Voltage Remote Driver
- Wiring: FT4-Rated Cable with Male/Female Quick Connector
- Installation: Trimless Mud-In, Canless Recessed
- Listing: ETL Listed
