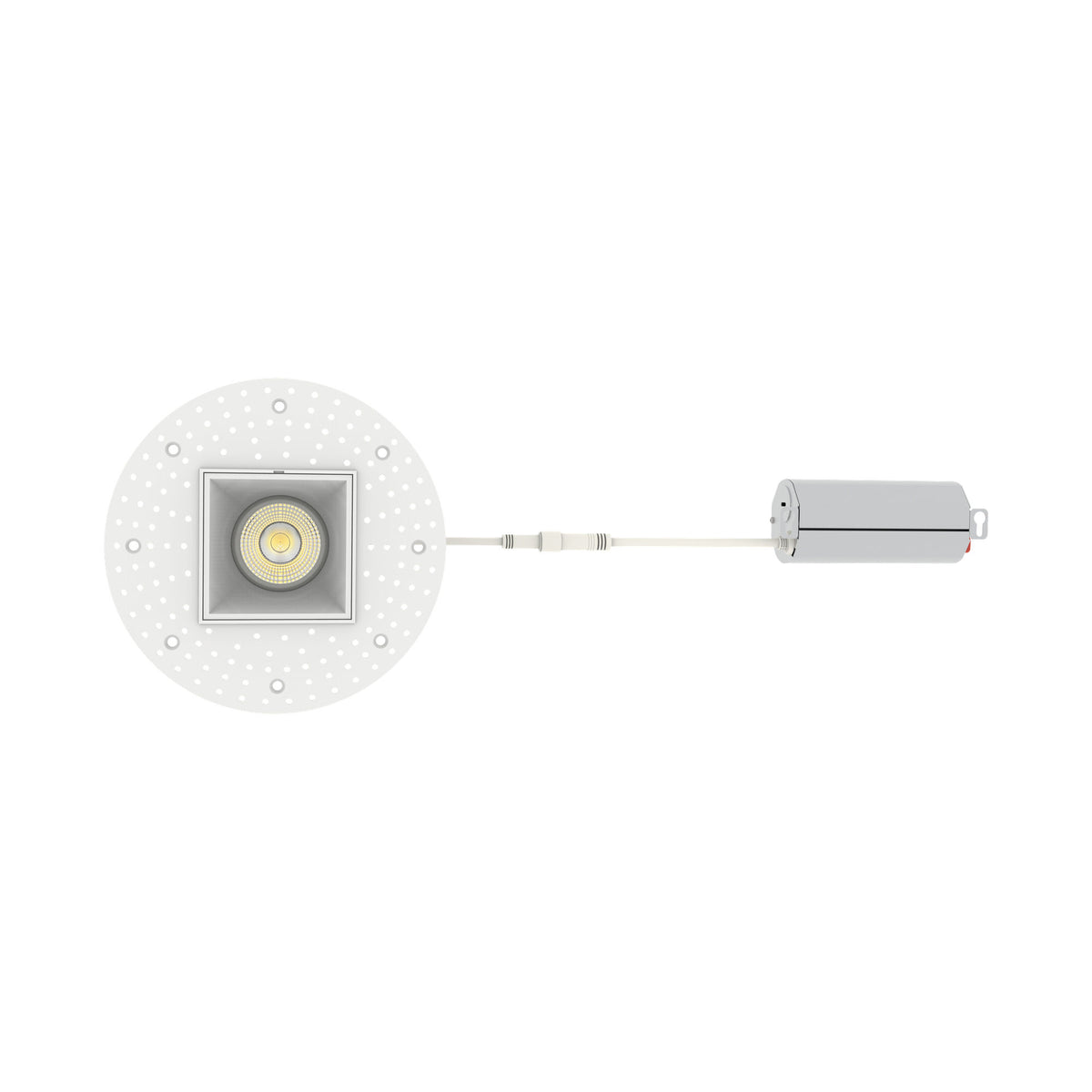

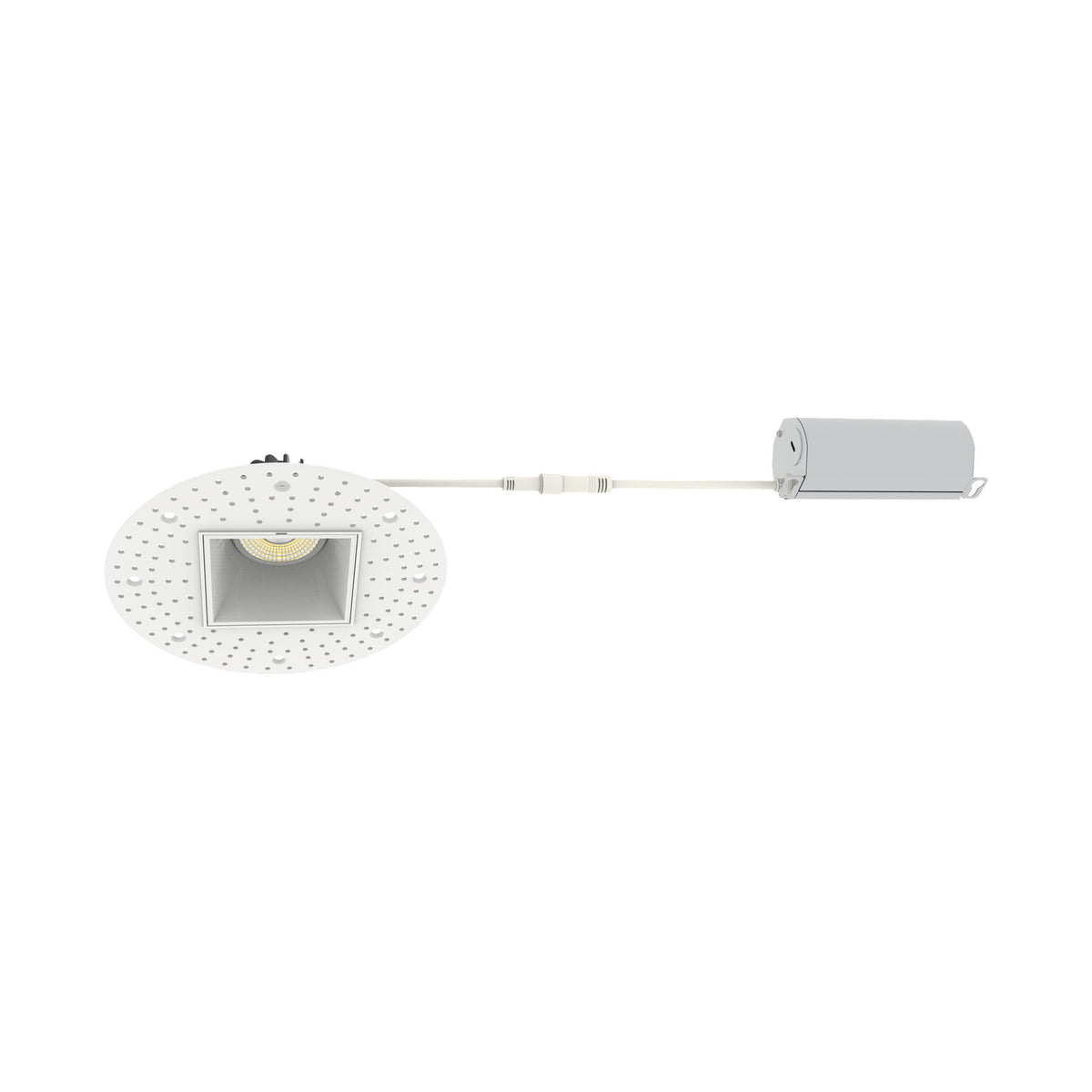

Westgate RDSG3TL-MCT5 3" Square Gimbal Trimless Recessed Downlight, 9W, 5CCT Selectable, 730 Lumens, 90 CRI - White Finish
Westgate RDSG3TL-MCT5 3" Square Gimbal Trimless Recessed Downlight, 9W, 5CCT Selectable, 730 Lumens, 90 CRI - White Finish
Westgate RDSG3TL-MCT5 3" Square Gimbal Trimless Recessed Downlight, 9W, 5CCT Selectable, 730 Lumens, 90 CRI - White Finish

Westgate RDSG3TL-MCT5 3" Square Gimbal Trimless Recessed Downlight, 9W, 5CCT Selectable, 730 Lumens, 90 CRI - White Finish

$51.74

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

In Stock

Ships in 1–3 Business Days

Free Nationwide Shipping

View minimums →

30-Day Returns

Read Terms →

Questions?

Contact via Chat, Email or Phone

Product Details

Description

Details of the Westgate RDSG3TL-MCT5 3" Square Gimbal Trimless Recessed Downlight, 9W, 5CCT Selectable, 730 Lumens, 90 CRI - White Finish

The Westgate RDSG3TL-MCT5 is a 3-inch square gimbal trimless recessed downlight designed to provide clean, directional illumination with a modern architectural appearance. Its 9W COB LED produces 730 lumens at 81 lm/W, while the 5CCT selectable design offers 2700K, 3000K, 3500K, 4000K, and 5000K color temperature options. The 90 CRI light source provides high-quality color rendering for residential and commercial interiors.

Featuring a fully adjustable gimbal with 360° rotation and 30° tilt, this canless recessed light allows precise aiming for accent, display, and architectural lighting. The trimless mud-in installation creates a clean ceiling appearance, while the included Class 2 remote driver, deep-regress optical design, polycarbonate lens, and die-cast aluminum heatsink provide a practical and refined lighting solution.

Key Features

  • 3-inch square gimbal trimless recessed downlight
  • 9W COB LED with 730 lumens output
  • 81 lm/W lighting efficacy
  • 5CCT field selectable: 2700K, 3000K, 3500K, 4000K, and 5000K
  • 90 CRI for excellent color rendering
  • Gimbal adjustable with 360° rotation and 30° tilt
  • Deep-regress optical design for a refined recessed appearance
  • Square aperture with a modern trimless look
  • TRIAC / ELV dimmable
  • Class 2 isolated low-voltage remote driver included
  • Canless trimless mud-in installation
  • Polycarbonate lens and die-cast aluminum heatsink
  • ETL Listed

Technical Specifications

  • Brand: Westgate
  • Model: RDSG3TL-MCT5
  • Product Type: Square Gimbal Trimless Recessed Downlight
  • Input Voltage: 120 VAC, 60 Hz
  • Dimension: w-2.92 in x d-6.61 in x h-3 in
  • Wattage: 9W
  • Delivered Lumens: 730 lm
  • Efficacy: 81 lm/W
  • CCT: 2700K / 3000K / 3500K / 4000K / 5000K, Field Selectable
  • CRI: 90
  • Light Source: COB LED
  • Dimming: TRIAC / ELV
  • Power Factor: >0.9
  • THD: <25%
  • Optical Design: Deep Regress
  • Lens: Polycarbonate
  • Aperture: Square
  • Gimbal Adjustment: 360° Rotation / 30° Tilt
  • Housing: Die-Cast Aluminum Heatsink
  • Finish: White
  • Driver: Class 2 Isolated Low-Voltage Remote Driver
  • Wiring: FT4-Rated Cable with Male/Female Quick Connector
  • Installation: Trimless Mud-In, Canless Recessed
  • Listing: ETL Listed
