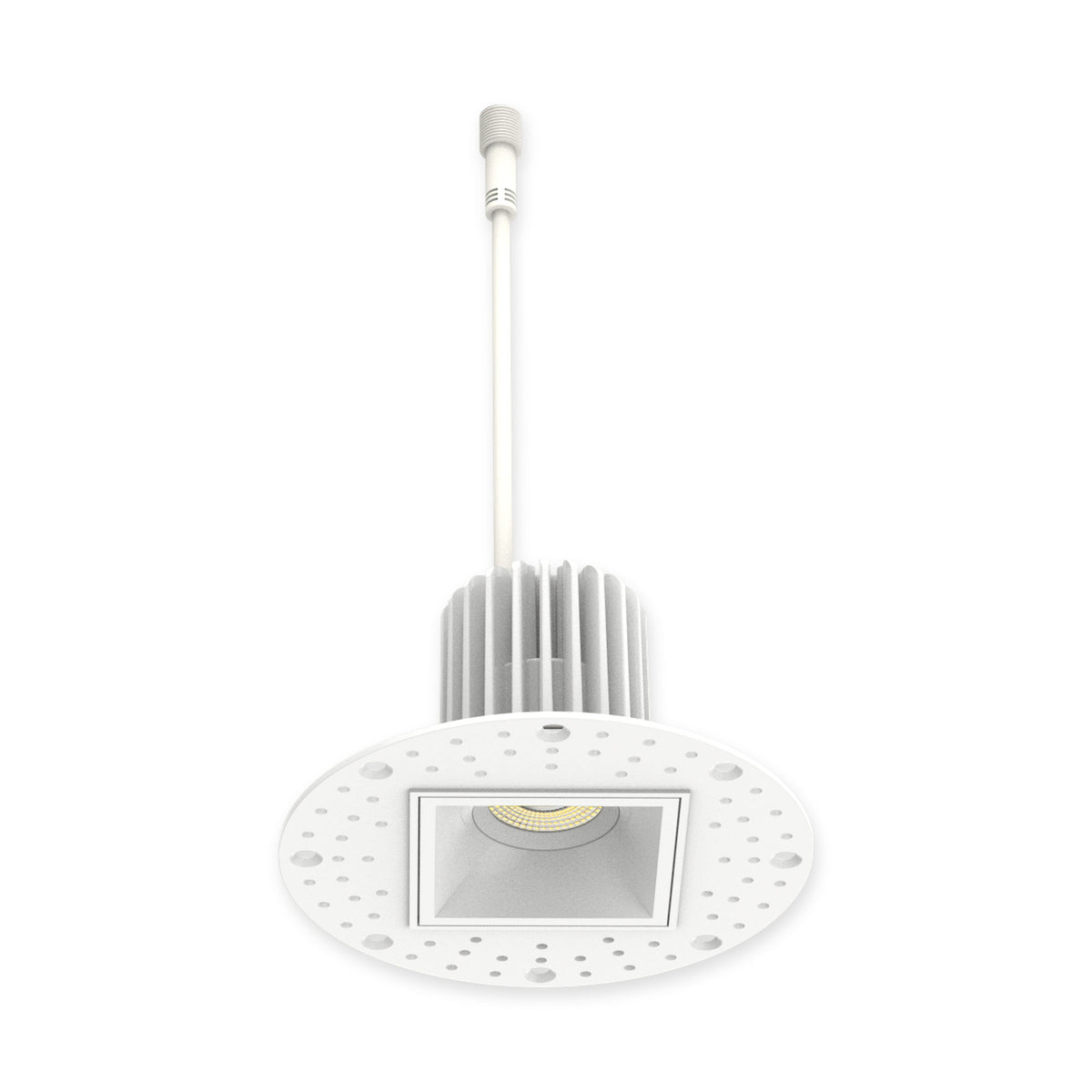

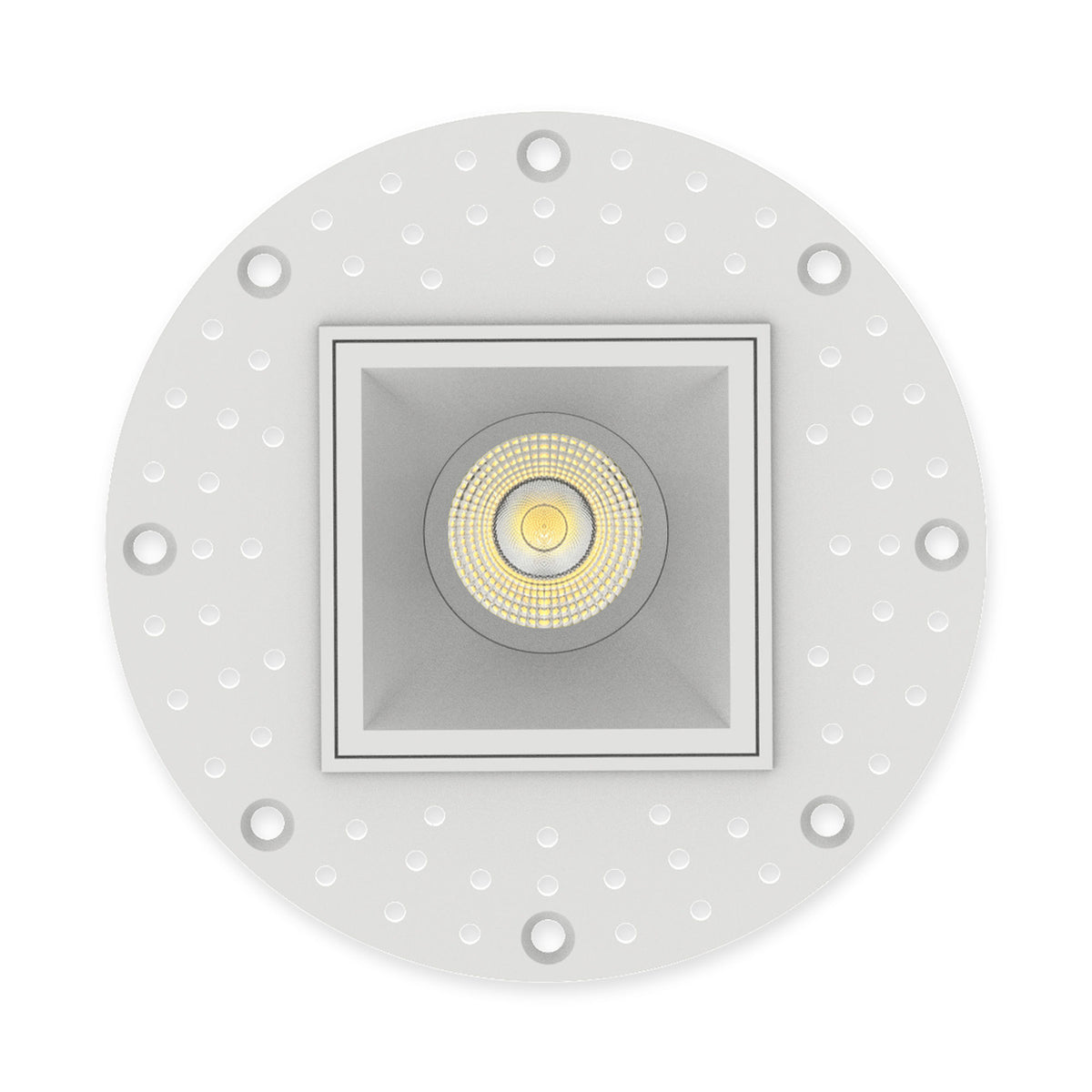

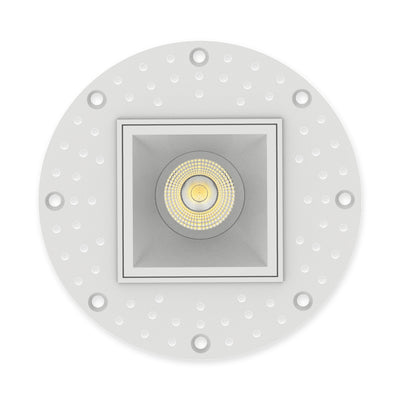

Details of the Westgate RDS2TL-MCT5 2" Square Trimless Recessed Downlight, 9W, 5CCT Selectable, 600 Lumens, 90 CRI - White Finish

The Westgate RDS2TL-MCT5 is a 2-inch square trimless recessed downlight designed to provide a clean, architectural appearance with a discreet canless installation. Its 9W LED delivers 600 lumens at 66 lm/W, while the 5CCT selectable design allows you to choose 2700K, 3000K, 3500K, 4000K, or 5000K to match different lighting environments. With 90 CRI and a deep-regress optical design, it provides quality illumination with a refined, low-profile appearance.

Designed for both residential and commercial applications, the RDS2TL-MCT5 features a white finish, polycarbonate lens, COB LED technology, and a die-cast aluminum heatsink. The included Class 2 isolated remote driver has a built-in CCT selection switch and supports TRIAC/ELV dimming. Its trimless mud-in installation and square aperture create a modern finished-ceiling look, while IC rating and wet-location suitability for covered ceiling installations provide added installation flexibility.

Key Features

• 2-inch square trimless recessed downlight with a clean architectural appearance
• 9W LED produces 600 lumens with 66 lm/W efficacy
• 5CCT selectable: 2700K, 3000K, 3500K, 4000K, and 5000K
• 90 CRI for high-quality color rendering
• Deep-regress optical design helps create a refined, low-glare appearance
• COB LED light source with polycarbonate lens
• TRIAC / ELV dimmable
• Class 2 isolated low-voltage remote driver included
• CCT selection switch located on the remote driver box
• Trimless mud-in, canless recessed installation
• IC rated for direct contact with insulation
• Wet-location rated for covered ceiling mounting only
• ETL Listed
• White finish for seamless integration with light-colored ceilings

Technical Specifications

• Brand: Westgate
• Model: RDS2TL-MCT5
• Product Type: Square Trimless Recessed Downlight
• Input Voltage: 120 VAC, 60 Hz
• Dimensions: w-4.55 in x d-4.7 in x h-3 in
• Wattage: 9W
• Delivered Lumens: 600 lm
• Efficacy: 66 lm/W
• CCT: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• CRI: 90
• Dimming: TRIAC / ELV
• Power Factor: >0.9
• THD: <25%
• Light Source: COB LED
• Optical Design: Deep Regress
• Lens: Polycarbonate
• Aperture: Square
• Housing: Die-Cast Aluminum Heatsink
• Driver: Class 2 Isolated Low-Voltage Remote Driver Box
• Wiring: FT4-rated cable with male/female quick connector
• Finish: White
• Installation: Trimless Mud-In, Canless Recessed
• Certification: ETL Listed
