Westgate RDL4S - SB - MCT5 - BK 4" Round LED Snap - In Recessed Lights, 15W, 27K/30K/35K/40K/50K - Sonic Electric
  • Brand: Westgate
  • Part #: RDL4S-SB-MCT5-BK

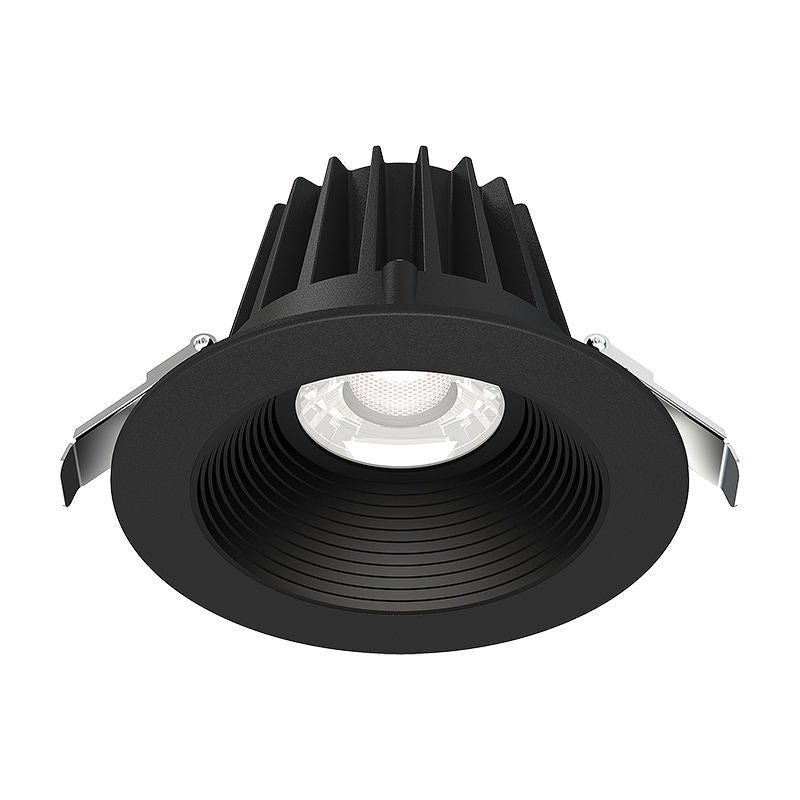

Westgate RDL4S-SB-MCT5-BK 4" Round LED Snap-In Recessed Lights, 15W, 27K/30K/35K/40K/50K

$39.74

Pickup available at Sonic Distribution Center

Usually ready in 24 hours

Pairs well with

Fast & Reliable Shipping

Orders processed in 1–2 business days.

Hassle-Free Returns

30-day returns on eligible items. Read Terms

Knowledgeable Support

Get expert help via chat, email or phone.

Top-Rated Store

Trusted by 20,000+ customers. Read Reviews

Product Details

Description

Technical Specs

  • Voltage: 120V AC
  • Output Voltage: 36VDC
  • Power Factor: 0.90
  • Wattage: 15W
  • Efficacy: 90 LPW
  • Total Harmonic Distortion: %15 %
  • Smooth Trim, Baffle Trim Insert Included.
  • Up to 9 AWG18 Wires
  • Durable, Die-Cast Aluminum Alloy For Optimal Heat Dissipation
  • Junction box Included, Install Directly in Insulated Ceilings (IC) Without Any Thermal Housing
  • Maximum Ambient Temperature: -40F to 104F
  • Damp Location
  • 5-Year Warranty
  • Multi CCT (Selectable Switch on the Back of the driver )
  • Dimming: Dimmable Down to 10% Using a Standard TRIAC LED Dimmer
  • Can Rotate after Installation to Align
  • LED: High Brightness COB LED
  • Optics: White Translucent Acrylic
  • Total Lumens: 1350LM
  • Color Temperatures: 2700K/3000K/3500K/4000K/5000K
  • Color Rendering Index: CRI %90
  • Beam Angle: 36
  • Rated Life: 50,000 hrs

Applications

  • LED recessed trims have been designed to be a flexible lighting solution for new construction applications, Ideal for closets, storage areas, attics, corridors, or general lighting solutions for residential and commercial applications

Download PDF File

Specification

Installation Instructions
