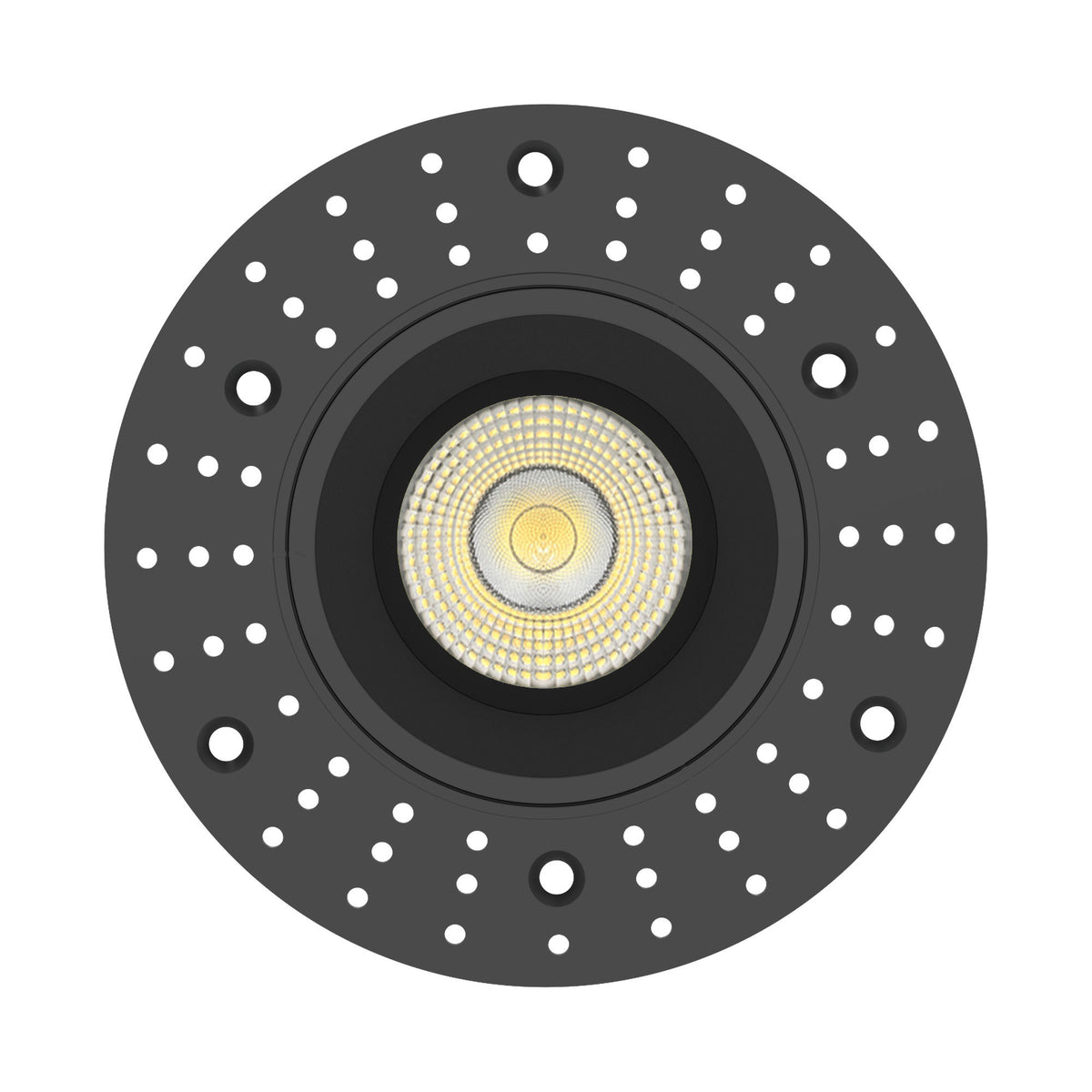

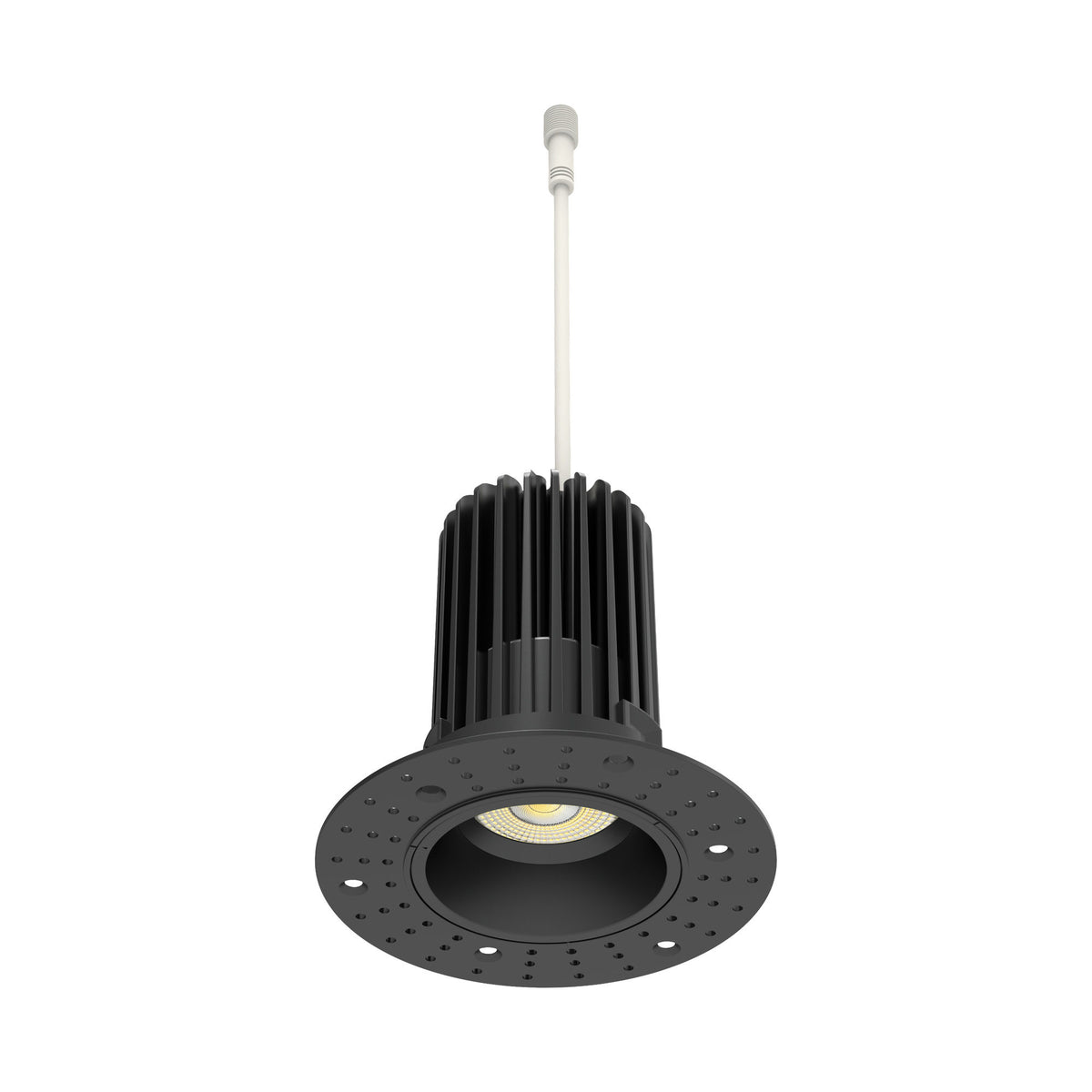

Details of the Westgate RD3TL-MCT5-BK 3" Round Trimless Recessed Downlight, 15W, 5CCT Selectable, 1,000 Lumens, 90 CRI - Black Finish

The Westgate RD3TL-MCT5-BK is a 3-inch round trimless recessed downlight designed to provide clean, seamless illumination with a refined architectural appearance. It delivers 1,000 lumens from 15W with 66 lm/W efficacy and features five field-selectable color temperatures—2700K, 3000K, 3500K, 4000K, and 5000K—along with 90 CRI for flexible, high-quality lighting.

This black canless recessed downlight features a deep-regress optical design, polycarbonate lens, and die-cast aluminum heatsink. The included Class 2 isolated low-voltage remote driver has a convenient CCT selection switch, while TRIAC/ELV dimming provides flexible lighting control. Its trimless mud-in installation, 3-inch round ceiling cutout, and IC-rated construction make it suitable for residential, commercial, and architectural ceiling applications.

Key Features

• 3-inch round trimless recessed downlight
• 15W LED power with 1,000 lumens output
• 66 lm/W efficacy
• 5CCT field selectable: 2700K, 3000K, 3500K, 4000K, and 5000K
• 90 CRI for enhanced color rendering
• Deep-regress optical design for controlled illumination
• TRIAC / ELV dimmable
• Class 2 isolated low-voltage remote driver included
• CCT selection switch located on the driver box
• COB LED light source
• Polycarbonate lens
• Die-cast aluminum heatsink
• Trimless mud-in, canless recessed installation
• Round mud-in plate included
• IC rated for direct contact with insulation
• Wet-location rated for covered ceiling mounting
• Black finish for dark-toned and accent ceilings
• ETL Listed

Technical Specifications

• Brand: Westgate
• Model: RD3TL-MCT5-BK
• Product Type: Round Trimless Recessed Downlight
• Input Voltage: 120 VAC, 60 Hz
• Dimensions: w-4.55 in x d-4.7 in x h-3 in
• Wattage: 15W
• Delivered Lumens: 1,000 lm
• Efficacy: 66 lm/W
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K
• CCT Selection: 5CCT Field Selectable
• CRI: 90
• Dimming: TRIAC / ELV
• Power Factor: >0.9
• Total Harmonic Distortion: <25%
• Light Source: COB LED
• Optical Design: Deep Regress
• Lens: Polycarbonate
• Aperture: Round
• Housing: Die-Cast Aluminum Heatsink
• Driver: Class 2 Isolated Low-Voltage Remote Driver Box
• Driver Feature: CCT Selectable Switch
• Wiring: FT4-Rated Cable with Male/Female Quick Connector
• Minimum Supply Conductor Temperature: 194°F
• Finish: Black
• Installation: Trimless Mud-In, Canless Recessed
• Mounting: IC Rated for Direct Contact with Insulation
• Wet Location: Rated for Covered Ceiling Mount Only
• Ceiling Thickness: 0.5" to 1"
• Package Includes: Fixture, trim, driver box, screws, and template
• Certification: ETL Listed
