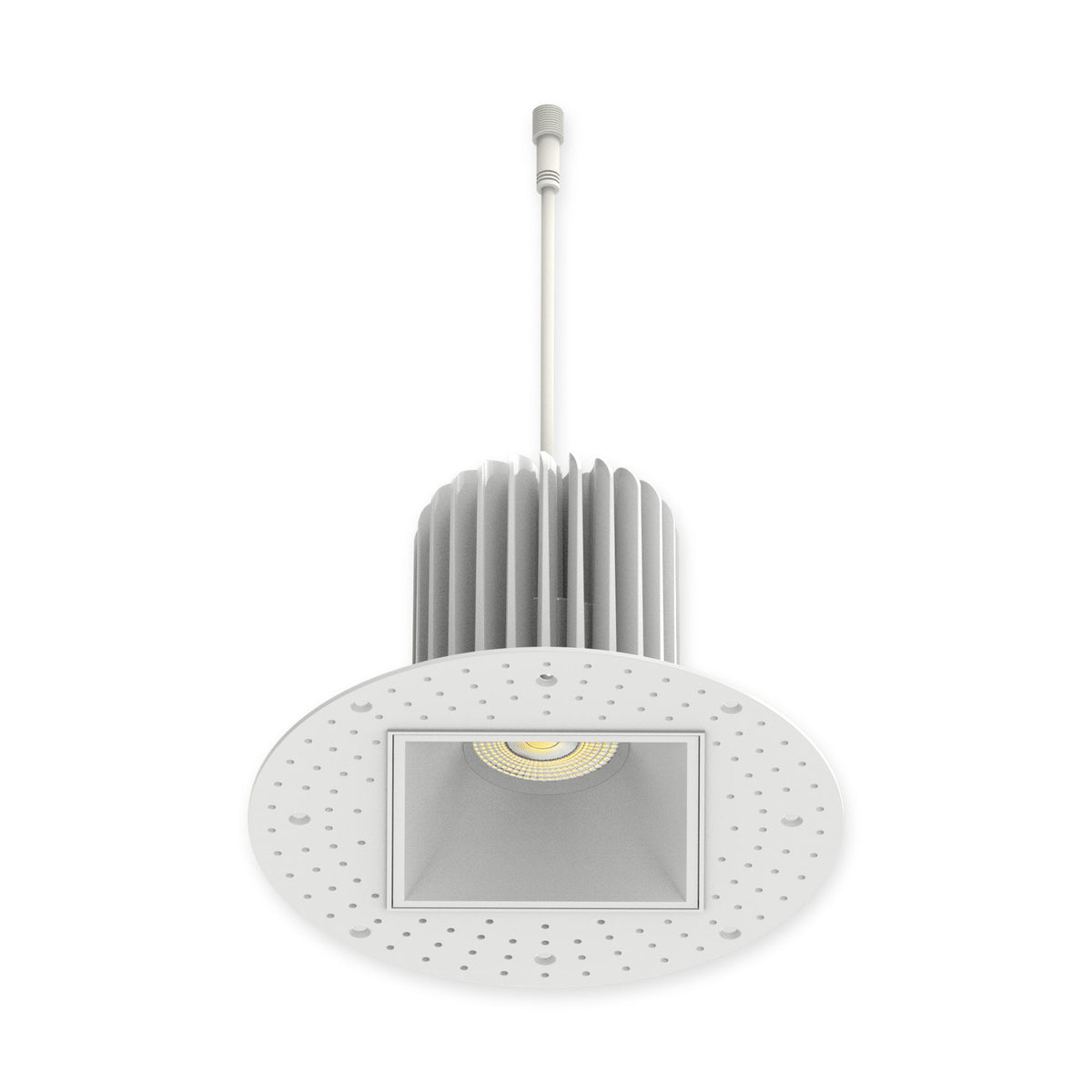

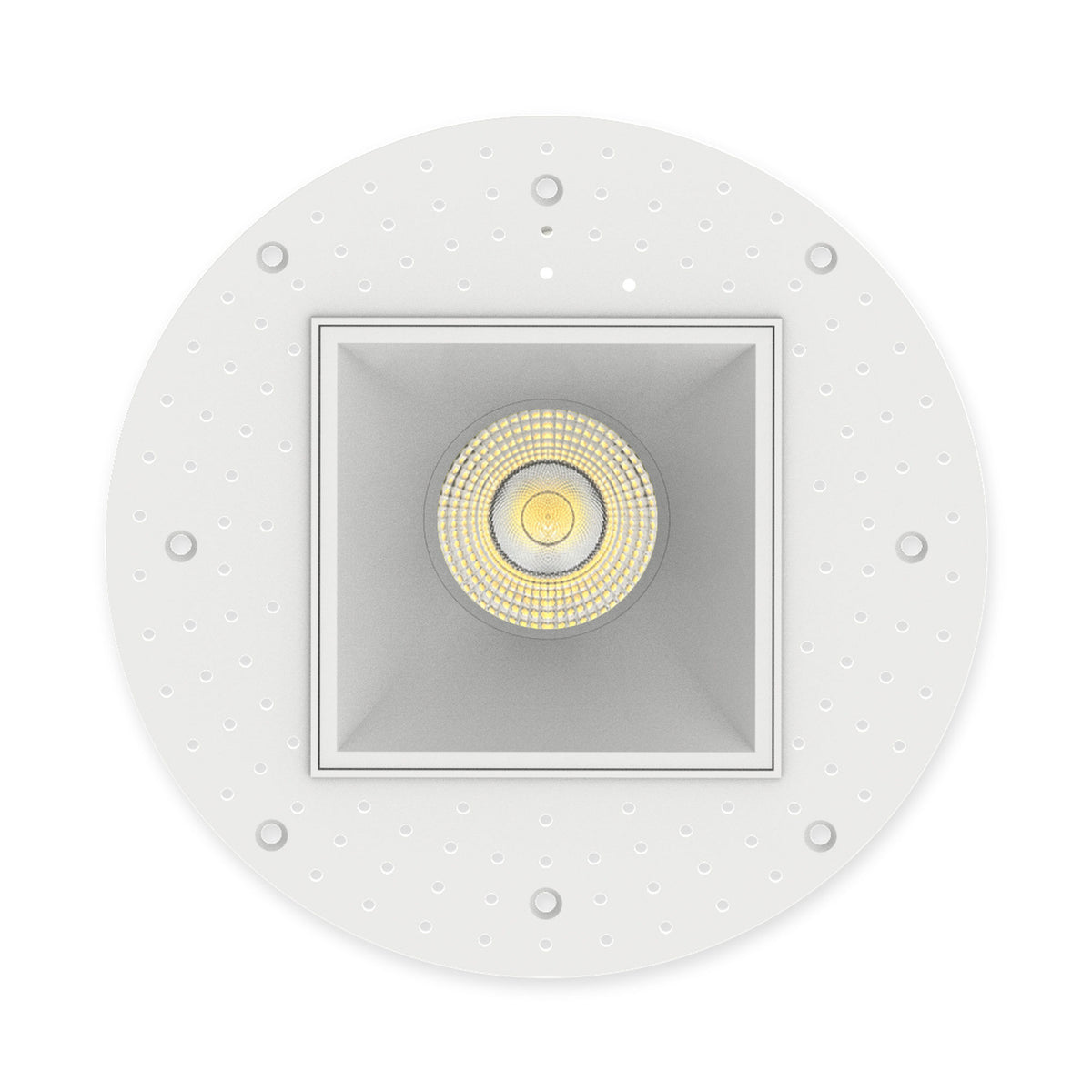

Details of the Westgate RD2TL-HL-MCT5 2" Round High-Lumen Trimless Recessed Downlight, 14W, 5CCT Selectable, 950 Lumens, 90 CRI - White Finish

The Westgate RD2TL-HL-MCT5 is a 2-inch round high-lumen trimless recessed downlight designed to deliver higher light output while maintaining a compact ceiling aperture. It produces 950 lumens from 14W with 67 lm/W efficacy and features five field-selectable color temperatures from 2700K to 5000K, along with 90 CRI for high-quality, flexible illumination.

This canless recessed downlight features a deep-regress optical design, polycarbonate lens, and die-cast aluminum heatsink for a clean architectural appearance. The included Class 2 isolated low-voltage remote driver has a CCT selection switch, while TRIAC/ELV dimming provides convenient lighting control. Its 2-13/16-inch round ceiling cutout, trimless mud-in installation, and IC-rated construction make it suitable for a variety of residential and commercial interior applications.

Key Features

• Compact 2-inch round high-lumen trimless recessed downlight
• 14W LED power with 950 lumens output
• 67 lm/W efficacy
• 5CCT field selectable: 2700K, 3000K, 3500K, 4000K, and 5000K
• 90 CRI for enhanced color rendering
• Deep-regress optical design
• TRIAC / ELV dimmable
• Class 2 isolated low-voltage remote driver included
• CCT selection switch located on the driver box
• Polycarbonate lens for durability
• Die-cast aluminum heatsink
• Trimless mud-in, canless recessed installation
• Round mud-in plate included
• IC rated for direct contact with insulation
• Wet-location rated for covered ceiling mounting
• White finish for a clean architectural appearance
• ETL Listed

Technical Specifications

• Brand: Westgate
• Model: RD2TL-HL-MCT5
• Product Type: Round High-Lumen Trimless Recessed Downlight
• Input Voltage: 120 VAC, 60 Hz
• Dimensions: w-4.55 in x d-3.72 in x h-2.5 in
• Wattage: 14W
• Delivered Lumens: 950 lm
• Efficacy: 67 lm/W
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K
• CCT Selection: 5CCT Field Selectable
• CRI: 90
• Dimming: TRIAC / ELV
• Power Factor: >0.9
• Total Harmonic Distortion: <25%
• Light Source: COB LED
• Optical Design: Deep Regress
• Lens: Polycarbonate
• Aperture: Round
• Housing: Die-Cast Aluminum Heatsink
• Driver: Class 2 Isolated Low-Voltage Remote Driver Box
• Driver Feature: CCT Selectable Switch
• Wiring: FT4-Rated Cable with Male/Female Quick Connector
• Minimum Supply Conductor Temperature: 194°F
• Finish: White
• Installation: Trimless Mud-In, Canless Recessed
• Mounting: IC Rated for Direct Contact with Insulation
• Wet Location: Rated for Covered Ceiling Mount Only
• Ceiling Thickness: 0.5" to 1"
• Certifications: ETL Listed
