Description
Technical Specs
- Dimensions: width 2-¾", height 4-½", depth 2-5/8"
-
Material: die-cast aluminum with powder-coated finish
-
Available with 3, 4, or 5 reinforced threaded outlet holes
-
Outlet hole sizes: available in ½", ¾" or 1" threaded outlet holes
-
Color: gray
-
Reinforced connector outlets
-
Scratch resistant powder-coated finish
-
Suitable for wet locations - NEMA 3R rated
-
Reinforced connector outlets that accept threaded fittings & conduits
-
Retail-ready packaging (shrink-wrapped with barcode)
-
Closure plugs, mounting lugs and ground screws included
-
"X" denotes boxes with side outlets
Applications

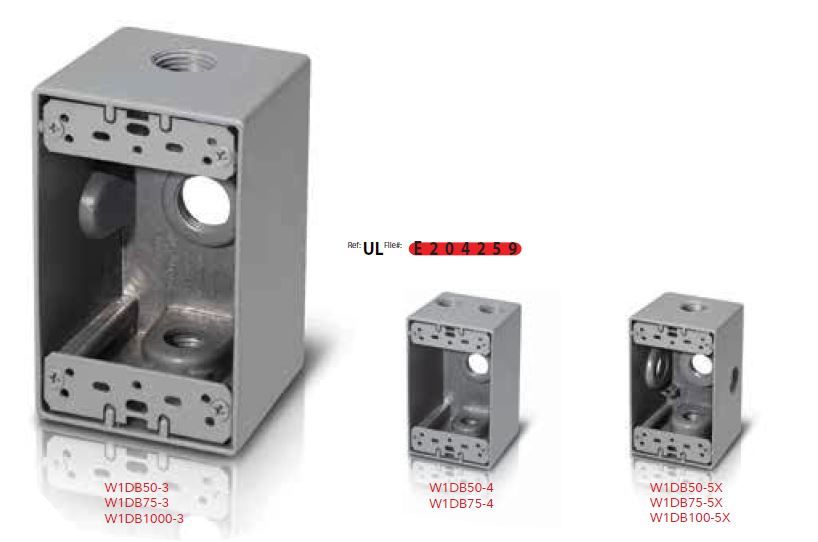

Picture is for Reference
Example of Sizing:
1DB50-4 ( 1/2" Trade Size = 50), (4 = 4 Outlet Holes)
1DB100-3 (1" Trade Size = 75), (3 = 3 Outlet Holes)
- Used for branch circuit wiring in wet, damp and dry locations
- For use as a weatherproof junction box or to install receptacles, switches and GFCI devices
